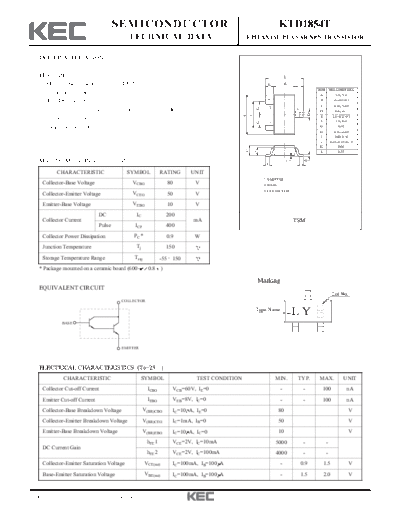

Image preview - the first page of the document
>> Download ktd1854t documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KTD1854T
TECHNICAL DATA EPITAXIAL PLANAR NPN TRANSISTOR
DRIVER APPLICATIONS.
FEATURES E
AF amplifier, solenoid drivers, LED drivers. K B
DIM MILLIMETERS
Darlington connection. A _
2.9 + 0.2
High DC current gain. B 1.6+0.2/-0.1
C _
0.70 + 0.05
2
Very small-sized package permitting sets to be made
G
3 _
D 0.4 + 0.1
D
A
F
E 2.8+0.2/-0.3
smaller and slimer. F _
1.9 + 0.2
G
1
Complementary to KTB1234T. G 0.95
H _
0.16 + 0.05
I 0.00-0.10
J 0.25+0.25/-0.15
K 0.60
C
L
L 0.55
MAXIMUM RATINGS (Ta=25 )
I
H
J J
CHARACTERISTIC SYMBOL RATING UNIT
1. EMITTER
Collector-Base Voltage VCBO 80 V 2. BASE
3. COLLECTOR
Collector-Emitter Voltage VCEO 50 V
Emitter-Base Voltage VEBO 10 V
DC IC 200
Collector Current mA TSM
Pulse ICP 400
Collector Power Dissipation PC * 0.9 W
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
* Package mounted on a ceramic board (600 0.8 )
Marking
EQUIVALENT CIRCUIT
Lot No.
COLLECTOR
Type Name
LY
BASE
EMITTER
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB=60V, IE=0 - - 100 nA
Emitter Cut-off Current IEBO VEB=8V, IC=0 - - 100 nA
Collector-Base Breakdown Voltage V(BR)CBO IC=10 A, IE=0 80 V
Collector-Emitter Breakdown Voltage V(BR)CEO IC=1mA, IB=0 50 V
Emitter-Base Breakdown Voltage V(BR)EBO IC=10 A, IC=0 10 V
hFE 1 VCE=2V, IC=10mA 5000 - -
DC Current Gain
hFE 2 VCE=2V, IC=100mA 4000 - -
Collector-Emitter Saturation Voltage VCE(sat) IC=100mA, IB=100 A - 0.9 1.5 V
Base-Emitter Saturation Voltage VBE(sat) IC=100mA, IB=100 A - 1.5 2.0 V
2001. 10. 23 Revision No : 0 1/2
KTD1854T
2001. 10. 23 Revision No : 0 2/2
