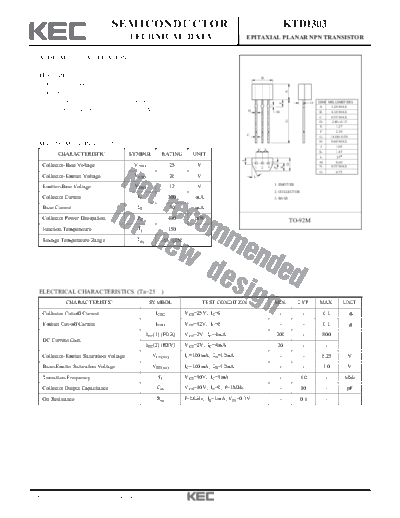

Image preview - the first page of the document
ktd1303


>> Download ktd1303 documenatation <<

Text preview - extract from the document
                                   SEMICONDUCTOR                                                                                 KTD1303
                                            TECHNICAL DATA                                      EPITAXIAL PLANAR NPN TRANSISTOR


  AUDIO MUTING APPLICATION.

  FEATURES                                                                                                  B
    High Emitter-Base Voltage : VEBO=12V(Min.).




                                                                                                                                  A
    High Reverse hFE
       : Reverse hFE=20(Min.) (VCE=2V, IC=4mA).                                                                                                O   DIM MILLIMETERS




                                                                                                                             F
                                                                                                                                                    A   3.20 MAX
    Low on Resistance :RON=0.6 (Typ.) (IB=1mA).                                                 H                       M                           B   4.30 MAX
                                                                                                                                                    C   0.55 MAX




                                                                                                                                  G
                                                                                                                                                    D         _
                                                                                                                                                        2.40 + 0.15
                                                                                                                                                    E       1.27
                                                                                                                                                    F       2.30
                                                                                                C                                                             _
                                                                                                                                                    G   14.00+ 0.50
                                                                                                                                                    H   0.60 MAX
  MAXIMUM RATING (Ta=25                 )                                                                                                           J       1.05
                                                                                                        E       E
                                                                                                                                                    K       1.45
          CHARACTERISTIC                    SYMBOL         RATING         UNIT                                                                      L       25




                                                                                            J
                                                                                                                                                    M      0.80




                                                                                                                                  D
    Collector-Base Voltage                   VCBO                 25       V




                                                                                                                             K
                                                                                                    1       2       3   N                           N   0.55 MAX
                                                                                                                                                    O      0.75
    Collector-Emitter Voltage                VCEO                 20       V                        L

                                                                                                                        1. EMITTER
    Emitter-Base Voltage                     VEBO                 12       V
                                                                                                                        2. COLLECTOR
    Collector Current                          IC               300       mA                                            3. BASE

    Base Current                               IB                 30      mA
    Collector Power Dissipation               PC                400       mW                                                          TO-92M
    Junction Temperature                       Tj               150
    Storage Temperature Range                 Tstg         -55 150




  ELECTRICAL CHARACTERISTICS (Ta=25                        )
               CHARACTERISTIC                         SYMBOL                   TEST CONDITION                           MIN.            TYP.       MAX.       UNIT
    Collector Cut-off Current                            ICBO          VCB=25V, IE=0                                         -            -          0.1         A
    Emitter Cut-off Current                              IEBO          VEB=12V, IC=0                                         -            -          0.1         A
                                                     hFE(1) (FOR)      VCE=2V, IC=4mA                                       200           -          800
    DC Current Gain
                                                     hFE(2) (REV)      VCE=2V, IC=4mA                                       20            -           -
    Collector-Emitter Saturation Voltage               VCE(sat)        IC=100mA, IB=10mA                                     -            -         0.25        V
    Base-Emitter Saturation Voltage                    VBE(sat)        IC=100mA, IB=10mA                                     -            -          1.0        V
    Transition Frequency                                  fT           VCE=10V, IC=1mA                                       -           60           -        MHz
    Collector Output Capacitance                         Cob           VCB=10V, IE=0, f=1MHz                                 -           10           -         pF
    On Resistance                                        Ron           f=1KHz, IB=1mA, VIN=0.3V                              -           0.6          -




1995. 10. 17                      Revision No : 0                                                                                                                     1/2
                                 KTD1303




1995. 10. 17   Revision No : 0             2/2
