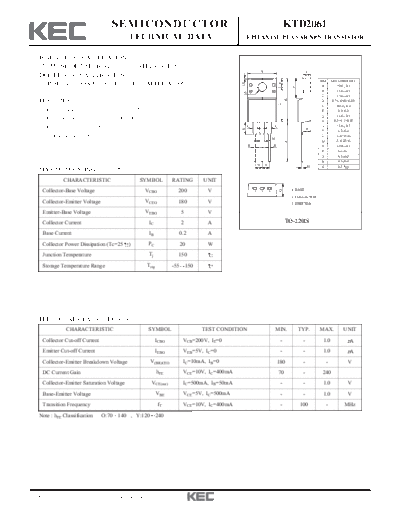

Image preview - the first page of the document
>> Download ktd2061 documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KTD2061
TECHNICAL DATA EPITAXIAL PLANAR NPN TRANSISTOR
HIGH VOLTAGE APPLICATION
TV, MONITOR VERTICAL OUTPUT APPLICATION
A C
DRIVER STAGE APPLICATION
DIM MILLIMETERS
F
COROR TV CLASS B SOUND OUTPUT APPLICATION S
A _
10.0 + 0.3
P
B _
15.0 + 0.3
E
C _
2.70 + 0.3
B
FEATURES D 0.76+0.09/-0.05
G
E 3.2 + 0.2
_
High Breakdown Voltage : VCEO=180V(Min.) F _
3.0 + 0.3
G _
12.0 + 0.3
High Transition Frequency : fT=100MHz(Typ.) H 0.5+0.1/-0.05
J _
13.6 + 0.5
High Current : IC(max)=2A. L L
K
R _
K 3.7 + 0.2
Complementary to KTB1369. L 1.2+0.25/-0.1
M
M 1.5+0.25/-0.1
J
D D N _
2.54 + 0.1
P _
6.8 + 0.1
Q _
4.5 + 0.2
R _
2.6 + 0.2
N N H S 0.5 Typ
MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Collector-Base Voltage VCBO 200 V 1. BASE
Q
1 2 3
2. COLLECTOR
Collector-Emitter Voltage VCEO 180 V 3. EMITTER
Emitter-Base Voltage VEBO 5 V
Collector Current IC 2 A TO-220IS
Base Current IB 0.2 A
Collector Power Dissipation (Tc=25 ) PC 20 W
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB=200V, IE=0 - - 1.0 A
Emitter Cut-off Current IEBO VEB=5V, IC=0 - - 1.0 A
Collector-Emitter Breakdown Voltage V(BR)CEO IC=10mA, IB=0 180 - - V
DC Current Gain hFE VCE=10V, IC=400mA 70 - 240
Collector-Emitter Saturation Voltage VCE(sat) IC=500mA, IB=50mA - - 1.0 V
Base-Emitter Voltage VBE VCE=5V, IC=500mA - - 1.0 V
Transition Frequency fT VCE=10V, IC=400mA - 100 - MHz
Note : hFE Classification O:70 140 , Y:120 240
2007. 5. 22 Revision No : 4 1/2
KTD2061
I C - VCE h FE - I C
1.0 1k
COLLECOTR CURRENT I C (A)
I B =8mA 500
DC CURRENT GAIN h FE
0.8
I B =7mA 300
0.6 I B =6mA
VCE =10V
I B =5mA 100
I B =4mA
0.4
I B =3mA
50
I B =2mA 30
0.2
I B =1mA
0 10
0 10 20 30 40 50 0.01 0.03 0.1 0.3 1 3 10
COLLECTOR-EMITTER VOLTAGE VCE (V) COLLECTOR CURRENT I C (A)
SATURATION VOLTAGE VBE(sat) ,VCE(sat) (V)
VCE(sat) ,V BE(sat) - I C SAFE OPERATING AREA
10 7
5 5 I C MAX(PULSED)
I C =10IB
3 3 I C MAX
10
