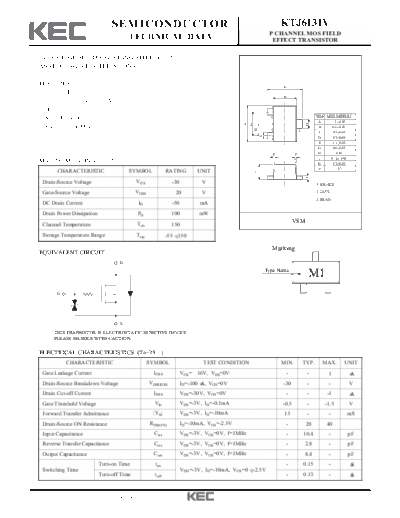

Image preview - the first page of the document
ktj6131v


>> Download ktj6131v documenatation <<

Text preview - extract from the document
                                SEMICONDUCTOR                                                                           KTJ6131V
                                                                                                               P CHANNEL MOS FIELD
                                           TECHNICAL DATA                                                       EFFECT TRANSISTOR


ULTRA-HIGH SPEED SWITCHING APPLICATIONS
ANALOG SWITCH APPLICATIONS

FEATURES                                                                                                                E
  2.5 Gate Drive.
                                                                                                                        B
  Low Threshold Voltage : Vth=-0.5          -1.5V.
  High Speed.
                                                                                                                                               DIM MILLIMETERS
  Small Package.                                                                                                2
                                                                                                                                                A        _
                                                                                                                                                     1.2 +0.05




                                                                                                                                         D
                                                                                                  G
                                                                                              A
  Enhancement-Mode.                                                                                                                             B        _
                                                                                                                                                     0.8 +0.05




                                                                                                      H
                                                                                                                1                   3                    _
                                                                                                                                                C    0.5 + 0.05




                                                                                                          K
                                                                                                                                                D        _
                                                                                                                                                     0.3 + 0.05
                                                                                                                                                E        _
                                                                                                                                                     1.2 + 0.05
                                                                                                                                                G        _
                                                                                                                                                     0.8 + 0.05
                                                                                                                    P           P               H       0.40
                                                                                                                                                J         _
                                                                                                                                                     0.12 + 0.05
MAXIMUM RATING (Ta=25                  )                                                                                                        K        _
                                                                                                                                                     0.2 + 0.05
                                                                                                                                                P         5
        CHARACTERISTIC                     SYMBOL               RATING         UNIT




                                                                                                      C




                                                                                                                                         J
 Drain-Source Voltage                       VDS                   -30           V                                                              1. SOURCE

 Gate-Source Voltage                        VGSS                   20           V                                                              2. GATE

                                                                                                                                               3. DRAIN
 DC Drain Current                            ID                   -50          mA
 Drain Power Dissipation                     PD                   100          mW
                                             Tch                                                                                VSM
 Channel Temperature                                              150
 Storage Temperature Range                  Tstg                -55 150

                                                                                                                Marking
EQUIVALENT CIRCUIT
                                   D
                                                                                                              Type Name
                                                                                                                                         M1
        G




                                   S

      THIS TRANSISTOR IS ELECTROSTATIC SENSITIVE DEVICE.
      PLEASE HANDLE WITH CAUTION.

ELECTRICAL CHARACTERISTICS (Ta=25                           )
              CHARACTERISTIC                       SYMBOL                        TEST CONDITION                         MIN.            TYP.      MAX.      UNIT
 Gate Leakage Current                                IGSS               VGS=   16V, VDS=0V                                  -            -           1         A
 Drain-Source Breakdown Voltage                    V(BR)DSS             ID=-100 A, VGS=0V                               -30              -           -        V
 Drain Cut-off Current                               IDSS               VDS=-30V, VGS=0V                                    -            -          -1         A
 Gate Threshold Voltage                              Vth                VDS=-3V, ID=-0.1mA                              -0.5             -         -1.5       V
 Forward Transfer Admittance                         |Yfs|              VDS=-3V, ID=-10mA                                15              -           -       mS
 Drain-Source ON Resistance                        RDS(ON)              ID=-10mA, VGS=-2.5V                                 -            20         40
 Input Capacitance                                   Ciss               VDS=-3V, VGS=0V, f=1MHz                             -           10.4         -        pF
 Reverse Transfer Capacitance                        Crss               VDS=-3V, VGS=0V, f=1MHz                             -           2.8          -        pF
 Output Capacitance                                  Coss               VDS=-3V, VGS=0V, f=1MHz                             -           8.4          -        pF
                           Turn-on Time               ton                                                                   -           0.15         -         S
 Switching Time                                                         VDD=-3V, ID=-10mA, VGS=0 -2.5V
                           Turn-off Time             toff                                                                   -           0.13         -         S


2011. 7. 12                   Revision No : 0                                                                                                                      1/3
                                KTJ6131V




2011. 7. 12   Revision No : 0              2/3
                                KTJ6131V




2011. 7. 12   Revision No : 0              3/3
