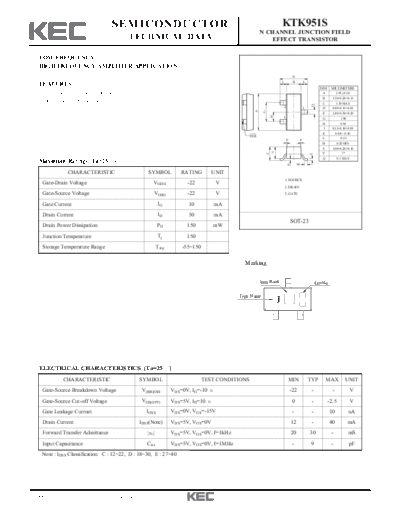

Image preview - the first page of the document
ktk951s


>> Download ktk951s documenatation <<

Text preview - extract from the document
                                  SEMICONDUCTOR                                                                       KTK951S
                                                                                                     N CHANNEL JUNCTION FIELD
                                          TECHNICAL DATA                                                EFFECT TRANSISTOR


  LOW FREQUENCY /
  HIGH FREQUENCY AMPLIFIER APPLICATION
                                                                                                                               E
                                                                                                                      L        B            L
  FEATURES
                                                                                                                                                        DIM    MILLIMETERS
    Low Gain Controlled Amplifier                                                                                                                        A             _
                                                                                                                                                                  2.93 + 0.20
                                                                                                                                                         B     1.30+0.20/-0.15
    High Transter Admittance                                                                                                                             C        1.30 MAX




                                                                                                                                                 D
                                                                                                                      2                     3            D     0.40+0.15/-0.05




                                                                                                 A

                                                                                                      G
                                                                                                                                                         E     2.40+0.30/-0.20




                                                                                                              H
                                                                                                                      1                                  G            1.90
                                                                                                                                                         H            0.95
                                                                                                                                                         J     0.13+0.10/-0.05
                                                                                                                                                         K       0.00 ~ 0.10
                                                                                                 Q
                                                                                                                                                         L            0.55
                                                                                                                          P             P
                                                                                                                                                         M        0.20 MIN
                                                                                                                                                         N     1.00+0.20/-0.10




                                                                                                              N
                                                                                                          C
                                                                                                                                                         P             7




                                                                                                                                                J
                                                                                                                                                         Q         0.1 MAX
  Maximum Ratings (Ta=25           )




                                                                                                                           K
                                                                                                                                    M

               CHARACTERISTIC                      SYMBOL           RATING        UNIT
                                                                                                                          1. SOURCE
   Gate-Drain Voltage                                     VGDO         -22          V
                                                                                                                          2. DRAIN
   Gate-Source Voltage                                    VGSO         -22          V                                     3. GATE

   Gate Current                                            IG          10         mA
   Drain Current                                           ID          50         mA
                                                                                                                              SOT-23
   Drain Power Dissipation                                 PD          150        mW
   Junction Temperature                                    Tj          150
   Storage Temperature Range                              Tstg       -55~150

                                                                                            Marking


                                                                                                     IDSS Rank                                       Lot No.

                                                                                          Type Name
                                                                                                                  J




  ELECTRICAL CHARACTERISTICS (Ta=25 )
              CHARACTERISTIC                  SYMBOL                           TEST CONDITIONS                                MIN               TYP       MAX          UNIT
   Gate-Source Breakdown Voltage               V(BR)GSS          VDS=0V, IG=-10                                               -22                -              -         V
   Gate-Source Cut-off Voltage                 VGS(OFF)          VDS=5V, ID=10                                                 0                 -            -2.5        V
   Gate Leakage Currnet                            IGSS          VDS=0V, VGS=-15V                                              -                 -             10         nA
   Drain Current                              IDSS(Note)         VDS=5V, VGS=0V                                                12                -             40        mA
   Forward Transfer Admittance                      yfs          VDS=5V, VGS=0V, f=1kHz                                        20               30             -         mS
   Input Capacitance                               Ciss          VDS=5V, VGS=0V, f=1MHz                                        -                 9             -          pF
   Note : IDSS Classification C : 12~22, D : 18~30, E : 27~40




2009. 5. 15                      Revision No : 0                                                                                                                                 1/3
                                KTK951S




2009. 5. 15   Revision No : 0             2/3
                                KTK951S




2009. 5. 15   Revision No : 0             3/3
