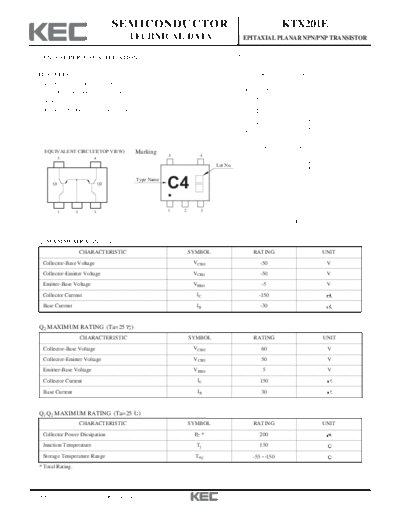

Image preview - the first page of the document
ktx201e


>> Download ktx201e documenatation <<

Text preview - extract from the document
                                     SEMICONDUCTOR                                                               KTX201E
                                             TECHNICAL DATA                              EPITAXIAL PLANAR NPN/PNP TRANSISTOR


 GENERAL PURPOSE APPLICATION.

                                                                                                                  B
 FEATURES
                                                                                                                 B1
   Including two devices in TESV.
   (Thin Extreme Super mini type with 5 pin)
   Simplify circuit design.                                                                            1                     5       DIM   MILLIMETERS




                                                                                                  C
                                                                                                                                      A          _
                                                                                                                                             1.6 + 0.05
   Reduce a quantity of parts and manufacturing process.




                                                                                             A1
                                                                                         A
                                                                                                                                     A1          _
                                                                                                                                             1.0 + 0.05
                                                                                                       2




                                                                                                  C
                                                                                                                                     B           _
                                                                                                                                             1.6 + 0.05
                                                                                                                                     B1          _
                                                                                                                                             1.2+ 0.05




                                                                                                                                 D
                                                                                                       3                     4       C           0.50
                                                                                                                                     D             _
                                                                                                                                               0.2 + 0.05
                                                                                                                                     H             _
                                                                                                                                               0.5 + 0.05
                                                                                                            P            P            J             _
                                                                                                                                               0.12 + 0.05
                                                                                                                                      P            5
   EQUIVALENT CIRCUIT(TOP VIEW)                   Marking
                                                              5          4
         5                 4




                                                                                             H
                                                                               Lot No.




                                                                                                                                 J
       Q1                      Q2
                                                  Type Name
                                                              C4                                  1. Q 1 BASE
                                                                                                  2. Q 1, Q 2 EMITTER
                                                                                                  3. Q 2 BASE
                                                                                                  4. Q 2 COLLECTOR
                                                                                                  5. Q 1 COLLECTOR


         1         2       3                                  1   2      3

                                                                                                                        TESV


 Q1 MAXIMUM RATING (Ta=25                    )
                       CHARACTERISTIC                                 SYMBOL                      RATING                              UNIT
   Collector-Base Voltage                                              VCBO                           -50                                  V
   Collector-Emitter Voltage                                           VCEO                           -50                                  V
   Emitter-Base Voltage                                                VEBO                            -5                                  V
   Collector Current                                                    IC                            -150
   Base Current                                                         IB                            -30


 Q2 MAXIMUM RATING (Ta=25                     )
                       CHARACTERISTIC                                 SYMBOL                      RATING                                  UNIT
   Collector-Base Voltage                                              VCBO                            60                                  V
   Collector-Emitter Voltage                                           VCEO                            50                                  V
   Emitter-Base Voltage                                                VEBO                            5                                   V
   Collector Current                                                    IC                            150
   Base Current                                                         IB                             30


 Q1 Q2 MAXIMUM RATING (Ta=25                      )
                       CHARACTERISTIC                                 SYMBOL                      RATING                              UNIT
   Collector Power Dissipation                                         PC *                           200
   Junction Temperature                                                 Tj                            150
   Storage Temperature Range                                           Tstg                       -55 150
 * Total Rating.




2008. 9. 23                         Revision No : 2                                                                                                          1/5
                                                                KTX201E


 Q1 ELECTRICAL CHARACTERISTICS (Ta=25                      )
              CHARACTERISTIC                  SYMBOL                     TEST CONDITION                MIN.   TYP.   MAX.   UNIT.
  Collector Cut-off Current                        ICBO        VCB=-50V, IE=0                           -      -     -0.1
  Emitter Cut-off Current                          IEBO        VEB=-5V, IC=0                            -      -     -0.1
  DC Current Gain                             hFE (Note)       VCE=-6V, IC=-2                          120     -     400
  Collector-Emitter Saturation Voltage         VCE(SAT)        IC=-100   , IB=-10                       -     -0.1   -0.3    V
  Transition Frequency                              fT         VCE=-10V, IC=-1                          80     -       -
  Collector Output Capacitance                     Cob         VCB=-10V, IE=0, f=1                      -     4.0     7.0
  Noise Figure                                     NF          VCE=-6V, IC=-0.1     , f=1    , Rg=10    -     1.0     10
 Note)hFE Classification : Y(4)120~240,   GR(6)200~400




 Q2 ELECTRICAL CHARACTERISTICS (Ta=25                      )
              CHARACTERISTIC                  SYMBOL                     TEST CONDITION                MIN.   TYP.   MAX.   UNIT.
  Collector Cut-off Current                        ICBO        VCB=60V, IE=0                            -      -      0.1
  Emitter Cut-off Current                          IEBO        VEB=5V, IC=0                             -      -      0.1
  DC Current Gain                             hFE (Note)       VCE=6V, IC=2                            120     -     400
  Collector-Emitter Saturation Voltage         VCE(SAT)        IC=100 , IB=10                           -     0.1    0.25    V
  Transition Frequency                              fT         VCE=10V, IC=1                            80     -       -
  Collector Output Capacitance                     Cob         VCB=10V, IE=0, f=1                       -     2.0     3.5
  Noise Figure                                     NF          VCE=6V, IC=0.1 , f=1         , Rg=10     -     1.0     10
 Note)hFE Classification : Y(4)120~240,   GR(6)200~400




2008. 9. 23                      Revision No : 2                                                                                    2/5
                                                                                                                 KTX201E


                     Q 1 (PNP TRANSISTOR)

                                                                        I C - V CE                                                                                             h FE - I C

                                          -240                                                                                                      3k
                                                                                  COMMON EMITTER
          COLLECTOR CURRENT I C (mA)




                                                          I B =-2.0mA
                                                                                  Ta=25 C                                                                                                         COMMON EMITTER
                                          -200




                                                                                                                         DC CURRENT GAIN h FE
                                                                        I B =-1.5mA
                                                                                                                                                    1k
                                          -160
                                                                           I B =-1.0mA                                                             500
                                          -120                                                                                                     300                         Ta=100 C                   VCE =-6V
                                                                                  I B =-0.5mA                                                                                  Ta=25 C
                                           -80
                                                                                                                                                                               Ta=-25 C
                                                                                                                                                   100
                                                                                      I B =-0.2mA                                                                                                              VCE =-1V
                                           -40
                                                                                                                                                    50
                                                                                      I B =0mA
                                             0                                                                                                      30
                                                  0     -1      -2         -3         -4         -5        -6    -7                                  -0.1     -0.3     -1           -3        -10         -30     -100
                                                                                                                                                                                                                          -300
                                                      COLLECTOR-EMITTER VOLTAGE VCE (V)                                                                          COLLECTOR CURRENT I C (mA)




                                                                  VCE(sat) - I C                                                                                         VBE(sat) - I C

                                             -1                                                                                                    -10
    COLLECTOR-EMITTER SATURATION




                                                                                      COMMON EMITTER                                                                                              COMMON EMITTER
                                                                                                                        BASE-EMITTER SATURATION




                                           -0.5                                       IC /I B =10                                                   -5                                            I C /I B =10
                                                                                                                                                                                                  Ta=25 C
         VOLTAGE VCE(sat) (V)




                                                                                                                          VOLTAGE VBE(sat) (V)




                                           -0.3                                                                                                     -3


                                                                                                      C
                                           -0.1                                                  00                                                 -1
                                                                                              =1
                                                                                            Ta
                                          -0.05                                                                                                   -0.5
                                          -0.03                                                  Ta=25 C                                          -0.3
                                                                                              Ta=-25 C


                                          -0.01                                                                                                   -0.1
                                              -0.1      -0.3    -1         -3     -10           -30       -100   -300                                -0.1     -0.3      -1           -3       -10         -30     -100    -300

                                                          COLLECTOR CURRENT I C (mA)                                                                                 COLLECTOR CURRENT I C (mA)




                                                                        fT - IC                                                                                                     IB - VBE
         TRANSITION FREQUENCY f T (MHz)




                                            3k                                                                                                     -1k
                                                                                      COMMON EMITTER                                                         COMMON EMITTER
                                                                                      VCE =-10V
                                                                                                                                                  -300       VCE =-6V
                                                                                                                          BASE CURRENT IB (
