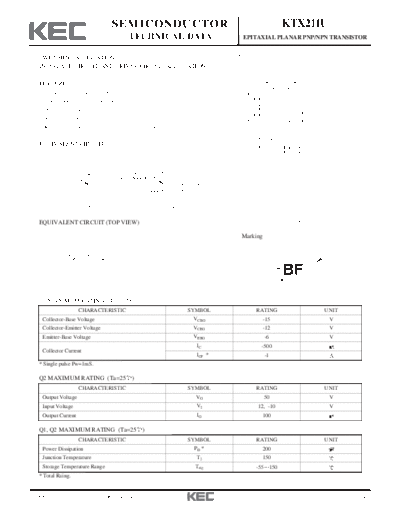

Image preview - the first page of the document
>> Download ktx211u documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KTX211U
TECHNICAL DATA EPITAXIAL PLANAR PNP/NPN TRANSISTOR
SWITCHING APPLICATION.
INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION.
B
FEATURES B1
Including two devices in US6.
1 6 DIM MILLIMETERS
(Ultra Super mini type with 6 leads.) A _
2.00 + 0.20
C
_
A1
2 5 A1 1.3 + 0.1
A
With Built-in bias resistors. B _
2.1 + 0.1
C
3 4 D B1 _
1.25 + 0.1
Simplify circuit design.
C 0.65
Reduce a quantity of parts and manufacturing process. D 0.2+0.10/-0.05
G 0-0.1
H _
0.9 + 0.1
H
EQUIVALENT CIRCUIT T T 0.15+0.1/-0.05
Q1 C Q2 OUT G
1. Q1 (EMITTER)
R1 Q2 2. Q1 (BASE)
B IN 3. Q2 OUT (COLLECTOR)
R1=2.2K 4. Q2 COMMON (EMITTER)
R2=2.2K 5. Q2 IN (BASE)
R2 6. Q1 (COLLECTOR)
E COMMON
EQUIVALENT CIRCUIT (TOP VIEW) US6
6 5 4
Marking
6 5 4
Lot No.
Q1
BF
Q2
Type Name
1 2 3
1 2 3
Q1 MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Collector-Base Voltage VCBO -15 V
Collector-Emitter Voltage VCEO -12 V
Emitter-Base Voltage VEBO -6 V
IC -500
Collector Current
ICP * -1
* Single pulse Pw=1mS.
Q2 MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Output Voltage VO 50 V
Input Voltage VI 12, -10 V
Output Current IO 100
Q1, Q2 MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Power Dissipation PD * 200
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
* Total Raing.
2008. 9. 23 Revision No : 2 1/4
KTX211U
Q1 ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB=-15V, IE=0 - - -100 nA
Collector-Base Breakdown Voltage V(BR)CBO IE=-10 A -15 - - V
Collector-Emitter Breakdown Voltage V(BR)CEO IC=-1mA -12 - - V
Emitter-Base Breakdown Voltage V(BR)EBO IE=-10 A -6 - - V
DC Current Gain hFE VCE=-2V, IC=-10mA 270 - 680 -
Collector-Emitter Saturation Voltage VCE(sat) IC=-200mA, IB=-10mA - -100 -250 mV
Transition Frequency fT VCE=-2V, IC=-10mA, fT=100MHz - 260 - MHz
Collector Output Capacitance Cob VCB=-10V, IE=0, f=1MHz - 6.5 - pF
Q2 ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT.
Output Cut-off Current IO(OFF) VO=50V, VI=0 - - 500
DC Current Gain GI VO=5V, IO=20 20 - -
Output Voltage VO(ON) IO=10 , II=0.5 - 0.1 0.3 V
Input Voltage (ON) VI(ON) VO=0.3V, IO=20 - 1.83 3 V
Input Voltage (OFF) VI(OFF) VO=5V, IO=0.1 0.5 1.15 - V
Transition Frequency fT * VO=10V, IO=5 - 250 -
Input Current II VI=5V - - 3.8
Note : * Characteristic of Transistor Only.
2008. 9. 23 Revision No : 2 2/4
KTX211U
Q 1 (PNP TRANSISTOR)
h FE - I C VCE(sat) - I C
COLLECTOR-EMITTER SATURATION
1K -1K
I C /IB =20
Ta=125 C -500
500
Ta=25 C -300
DC CURRENT GAIN h FE
VOLTAGE VCE(sat) (mV)
300
Ta=-40 C
-100
C
-50 125
Ta=
100 -30
25 C C
Ta= =-40
Ta
50
-10
30 -5
-3
VCE =-2V
10 -1
-1 -3 -10 -30 -100 -300 -1K -1 -3 -10 -30 -100 -300 -1K
COLLECTOR CURRENT I C (mA) COLLECTOR CURRENT I C (mA)
VCE(sat) - I C VBE(sat) - I C
-1K
COLLECTOR-EMITTER SATURATION
-10K
Ta=25 C I C /IB =20
-500
BASE-EMITTER SATURATION
-300 -5K
VOLTAGE VCE(sat) (mV)
VOLTAGE VBE(sat) (mV)
-3K
-100
-50 I C /IB =50
-30 -1K Ta=-40 C
I C /IB =20
I C /IB =10
-10 -500 Ta=25 C C
Ta=125
-5 -300
-3
-1 -100
-1 -3 -10 -30 -100 -300 -1K -1 -3 -10 -30 -100 -300 -1K
COLLECTOR CURRENT I C (mA) COLLECTOR CURRENT I C (mA)
I C - VBE fT - IC
-1K 1K
TRANSITION FREQUENCY f T (MHz)
VCE =-2V VCE =-2V
COLLECTOR CURRENT IC (mA)
-500 Ta=25 C
-300 500
300
-100
-50
25 C
5 C
40 C
-30 100
Ta=1
Ta=2
Ta=-
-10 50
-5 30
-3
-1 10
0 -0.5 -1.0 -1.5 -1 -3 -10 -30 -100 -300 -1K
BASE-EMITTER VOLTAGE VBE (V) COLLECTOR CURRENT I C (mA)
2008. 9. 23 Revision No : 2 3/4
KTX211U
Q 1 (PNP TRANSISTOR)
C ob - VCB , C ib - VEB
Pc - Ta
COLLECTOR LPOWER DISSIPATION P C (mW)
COLLECTOR OUTPUT CAPACITANCE C ob (PF)
1K
COLLECTOR INPUT CAPACITANCE C ib (PF)
I E =0A
500 f=1MHz 250
Ta=25 C
300
200
100
50 150
30
C ib
100
10
C ob 50
5
3
0
0 25 50 75 100 125 150
1
-0.1 -0.3 -1 -3 -10 -30 -100 AMBIENT TEMPERATURE Ta ( C)
COLLECTOR-BASE VOLTAGE VCB (V)
EMITTER-BASE VOLTAGE VEB (V)
I O - V I(ON) I O - V I(OFF)
Q2 Q2
100 3k
50
OUTPUT CURRENT I O (mA)
