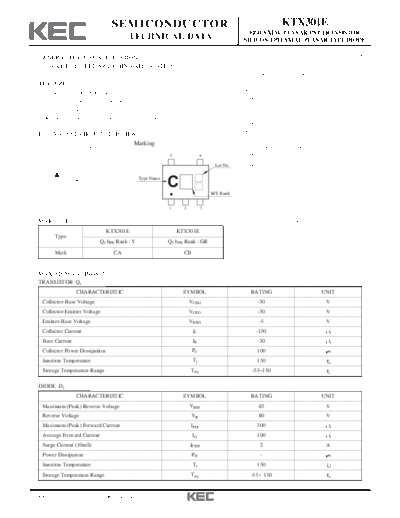

Image preview - the first page of the document
>> Download ktx301e documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KTX301E
EPITAXIAL PLANAR PNP TRANSISTOR
TECHNICAL DATA SILICON EPITAXIAL PLANAR TYPE DIODE
GENERAL PURPOSE APPLICATION.
ULTRA HIGH SPEED SWITCHING APPLICATION.
B
B1
FEATURES
Including two(TR, Diode) devices in TESV.
(Thin Extreme Super mini type with 5pin.) 1 5 DIM MILLIMETERS
C
A _
1.6 + 0.05
Simplify circuit design.
A1
A
A1 _
1.0 + 0.05
2
C
Reduce a quantity of parts and manufacturing process. B _
1.6 + 0.05
B1 _
1.2+ 0.05
D
3 4 C 0.50
D _
0.2 + 0.05
EQUIVALENT CIRCUIT (TOP VIEW)
H _
0.5 + 0.05
5 4
Marking P P J _
0.12 + 0.05
P 5
5 4
H
Lot No.
J
Q1
C
D1
Type Name
1. D 1 ANODE
2. Q 1 EMITTER
3. Q 1 BASE
hFE Rank
4. Q 1 COLLECTOR
1 2 3 5. D 1 CATHODE
1 2 3
MARK SPEC TESV
KTX301E KTX301E
Type
Q1 hFE Rank : Y Q1 hFE Rank : GR
Mark CA CB
MAXIMUM RATINGS (Ta=25 )
TRANSISTOR Q1
CHARACTERISTIC SYMBOL RATING UNIT
Collector-Base Voltage VCBO -50 V
Collector-Emitter Voltage VCEO -50 V
Emitter-Base Voltage VEBO -5 V
Collector Current IC -150
Base Current IB -30
Collector Power Dissipation PC 100
Junction Temperature Tj 150
Storage Temperature Range Tstg -55~150
DIODE D1
CHARACTERISTIC SYMBOL RATING UNIT
Maximum (Peak) Reverse Voltage VRM 85 V
Reverse Voltage VR 80 V
Maximum (Peak) Forward Current IFM 300
Average Forward Current IO 100
Surge Current (10mS) IFSM 2 A
Power Dissipation PD -
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
2008. 9. 23 Revision No : 2 1/2
KTX301E
ELECTRICAL CHARACTERISTICS (Ta=25 )
TRANSISTOR Q1
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB=-50V, IE=0 - - -0.1
Emitter Cut-off Current IEBO VEB=-5V, IC=0 - - -0.1
DC Current Gain hFE (Note) VCE=-6V, IC=-2 120 - 400
Collector-Emitter Saturation Voltage VCE(SAT) IC=-100 , IB=-10 - -0.1 -0.3 V
Transition Frequency fT VCE=-10V, IC=-1 80 - -
Collector Output Capacitance Cob VCB=-10V, IE=0, f=1 - 4 7
Noise Figure NF VCE=-6V, IC=-0.1 , f=1 , Rg=10 - 1.0 10 dB
Note) hFE Classification Y(4):120~240, GR:200~400.
DIODE D1
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
VF(1) IF=1mA - 0.60 -
Forward Voltage VF(2) IF=10mA - 0.72 - V
VF(3) IF=100mA - 0.90 1.20
Reverse Current IR VR=80V - - 0.5
Total Capacitance CT VR=0, f=1 - 0.9 3.0
Reverse Recovery Time trr IF=10 - 1.6 4.0
2008. 9. 23 Revision No : 2 2/2
