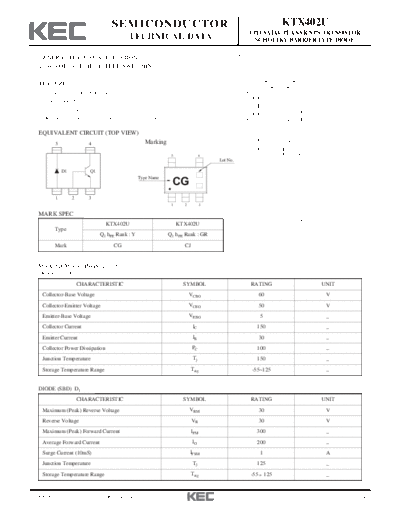

Image preview - the first page of the document
>> Download ktx402u documenatation <<Text preview - extract from the document SEMICONDUCTOR KTX402U
EPITAXIAL PLANAR NPN TRANSISTOR
TECHNICAL DATA SCHOTTKY BARRIER TYPE DIODE
GENERAL PURPOSE APPLICATION.
LOW VOLTAGE HIGH SPEED SWITCHING.
B
FEATURES B1
Including two(TR, Diode) devices in USV.
1 5 DIM MILLIMETERS
(Ultra Super Mini type with 5 leads) A _
2.00 + 0.20
C
A1
2 _
1.3 + 0.1
A
A1
Simplify circuit design.
C
B _
2.1 + 0.1
3 4 D _
Reduce a quantity of parts and manufacturing process. B1 1.25+ 0.1
C 0.65
D 0.2+0.10/-0.05
EQUIVALENT CIRCUIT (TOP VIEW) G 0-0.1
H _
0.9 + 0.1
5 4 Marking T 0.15+0.1/-0.05
H
T
5 4 G
Lot No.
D1 Q1 1. D 1 ANODE
CG
Type Name 2. Q 1 BASE
3. Q 1 EMITTER
4. Q 1 COLLECTOR
5. D 1 CATHODE
1 2 3
1 2 3
MARK SPEC
KTX402U KTX402U
USV
Type
Q1 hFE Rank : Y Q1 hFE Rank : GR
Mark CG CJ
