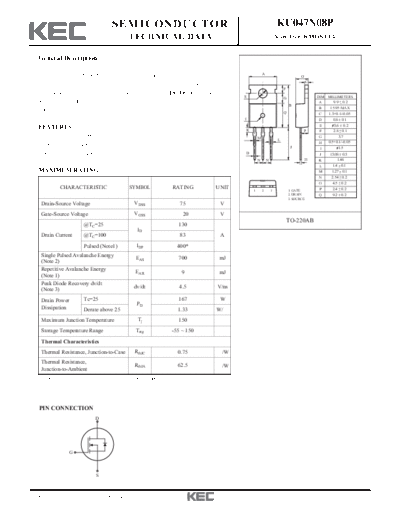

Image preview - the first page of the document
>> Download ku047n08p documenatation <<Text preview - extract from the document SEMICONDUCTOR KU047N08P
TECHNICAL DATA N-ch Trench MOS FET
General Description
This Trench MOSFET has better characteristics, such as fast A
O
C
switching time, low on resistance, low gate charge and excellent
F
avalanche characteristics. It is mainly suitable for DC/DC Converter,
E G DIM MILLIMETERS
Synchronous Rectification and a load switch in battery powered A _
9.9 + 0.2
B
B 15.95 MAX
applications Q C 1.3+0.1/-0.05
I D _
0.8 + 0.1
E _
3.6 + 0.2
FEATURES K _
P F 2.8 + 0.1
VDSS= 75V, ID= 130A M G 3.7
L
H 0.5+0.1/-0.05
Drain-Source ON Resistance : J I 1.5
RDS(ON)=4.7m (Max.) @VGS = 10V D J _
13.08 + 0.3
N N H K 1.46
L _
1.4 + 0.1
MAXIMUM RATING (Tc=25 ) M _
1.27 + 0.1
N _
2.54 + 0.2
O _
4.5 + 0.2
CHARACTERISTIC SYMBOL RATING UNIT 1 2 3 P _
2.4 + 0.2
1. GATE
2. DRAIN Q _
9.2 + 0.2
3. SOURCE
Drain-Source Voltage VDSS 75 V
Gate-Source Voltage VGSS 20 V
TO-220AB
@TC=25 130
ID
Drain Current @TC=100 83 A
Pulsed (Note1) IDP 400*
Single Pulsed Avalanche Energy EAS 700 mJ
(Note 2)
Repetitive Avalanche Energy EAR 9 mJ
(Note 1)
Peak Diode Recovery dv/dt
dv/dt 4.5 V/ns
(Note 3)
Drain Power Tc=25 167 W
PD
Dissipation Derate above 25 1.33 W/
Maximum Junction Temperature Tj 150
Storage Temperature Range Tstg -55 ~ 150
Thermal Characteristics
Thermal Resistance, Junction-to-Case RthJC 0.75 /W
Thermal Resistance,
RthJA 62.5 /W
Junction-to-Ambient
* : Drain current limited by maximum junction temperature.
PIN CONNECTION
D
G
S
2011. 1. 14 Revision No : 0 1/7
KU047N08P
ELECTRICAL CHARACTERISTICS (Tc=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Static
Drain-Source Breakdown Voltage BVDSS ID=250 A, VGS=0V 75 - - V
Breakdown Voltage Temperature Coefficient BVDSS/ Tj ID=5mA, Referenced to 25 - 0.07 - V/
Drain Cut-off Current IDSS VDS=75V, VGS=0V, - - 10 A
Gate Threshold Voltage Vth VDS=VGS, ID=250 A 2.0 - 4.0 V
Gate Leakage Current IGSS VGS= 20V, VDS=0V - - 100 nA
Drain-Source ON Resistance RDS(ON) VGS=10V, ID=65A - 3.9 4.7 m
Dynamic
Total Gate Charge Qg - 200 -
VDS=60V, ID=80A
Gate-Source Charge Qgs - 40 - nC
VGS=10V (Note4,5)
Gate-Drain Charge Qgd - 65 -
Turn-on Delay time td(on) - 140 -
VDD=37V
Turn-on Rise time tr - 200 -
ID=80A ns
Turn-off Delay time td(off) - 520 -
RG=25 (Note4,5)
Turn-off Fall time tf - 200 -
Input Capacitance Ciss - 8800 -
Output Capacitance Coss VDS=25V, VGS=0V, f=1.0MHz - 815 - pF
Reverse Transfer Capacitance Crss - 390 -
Source-Drain Diode Ratings
Continuous Source Current IS - - 130
VGS
