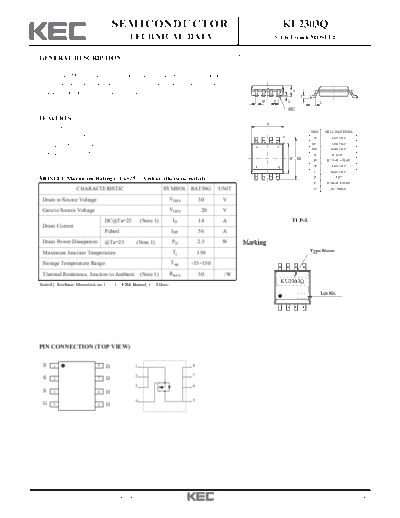

Image preview - the first page of the document
ku2303q


>> Download ku2303q documenatation <<

Text preview - extract from the document
                                     SEMICONDUCTOR                                                                 KU2303Q
                                           TECHNICAL DATA                                                  N-Ch Trench MOSFET


  GENERAL DESCRIPTION

   This Trench MOSFET has better characteristics, such as fast switching time, low
  on resistance, low gate charge and excellent avalanche characteristiscs. It is mainly
                                                                                                                         H
  suitable for DC/DC Converter and Battery pack.
                                                                                                                             T
                                                                                                   D       P         G                 L
                                                                                                                         U

  FEATURES
                                                                                                       A
    VDSS=30V, ID=14A.
                                                                                                                                 DIM       MILLIMETERS
    Drain to Source On Resistance.                                                                                                A                 _
                                                                                                                                               4.85 + 0.2
                                                                                                                                  B1                _
                                                                                                                                               3.94 + 0.2
       RDS(ON)=8.2m (Max.) @ VGS=10V                                                           8               5
                                                                                                                                  B2                 _
                                                                                                                                               6.02 + 0.3
       RDS(ON)=14.7m (Max.) @ VGS=4.5V                                                                                            D                 _
                                                                                                                                                0.4 + 0.1
                                                                                                                     B1 B2        G         0.15+0.1/-0.05
                                                                                               1                                  H                  _
                                                                                                                                               1.63 + 0.2
                                                                                                               4
                                                                                                                                  L                 _
                                                                                                                                               0.65 + 0.2
  MOSFET Maximum Ratings (Ta=25                     Unless otherwise noted)                                                       P               1.27
                                                                                                                                  T         0.20+0.1/-0.05
                   CHARACTERISTIC                            SYMBOL RATING          UNIT                                          U            0.1 MAX

   Drain to Source Voltage                                    VDSS           30       V
   Gate to Source Voltage                                     VGSS            20      V
                                 DC@Ta=25         (Note 1)        ID         14       A                                  FLP-8
   Drain Current
                                 Pulsed                           IDP        56       A
   Drain Power Dissipation       @Ta=25       (Note 1)            PD         2.5      W
   Maximum Junction Temperature                                   Tj         150
   Storage Temperature Range                                      Tstg   -55~150
   Thermal Resistance, Junction to Ambient        (Note 1)    RthJA          50           /W
                                                                                                                   KU2303Q
  Note1) Surface Mounted on 1        1 FR4 Board, t      10sec.




  PIN CONNECTION (TOP VIEW)


   S     1                   8   D            1                          8

                                              2                          7
   S     2                   7   D
                                              3                          6
   S     3                   6   D
                                              4                          5
   G     4                   5   D




2009. 4. 24                       Revision No : 0                                                                                                            1/4
                                                               KU2303Q

  ELECTRICAL CHARACTERISTICS (Ta=25 ) UNLESS OTHERWISE NOTED
              CHARACTERISTIC                 SYMBOL                 TEST CONDITION             MIN.   TYP.   MAX.   UNIT
   Static
   Drain to Source Breakdown Voltage           BVDSS      VGS=0V, ID=250 A                      30     -       -     V
   Drain Cut-off Current                        IDSS      VGS=0V, VDS=30V                       -      -      1      A
   Gate to Source Leakage Current               IGSS      VGS= 20V, VDS=0V                      -      -      100   nA
   Gate to Source Threshold Voltage              Vth      VDS=VGS, ID=250 A                    1.0     -      3.0    V
                                                          VGS=10V, ID=14A            (Note2)    -     6.8     8.2
   Drain to Source On Resistance              RDS(ON)                                                               m
                                                          VGS=4.5V, ID=11A           (Note2)    -     12.3   14.7
   Forward Transconductance                      gfs      VDS=5V, ID=14A             (Note2)    -      46      -     S
   Dynamic
   Input Capaclitance                           Ciss                                            -     937      -
   Ouput Capacitance                            Coss      VDS=15V, VGS=0V, f=1MHz    (Note2)    -     311      -     pF
   Reverse Transfer Capacitance                 Crss                                            -     154      -
   Gate Resistance                               Rg       f=1MHz                                -     1.3      -
                            VGS=10V                                                             -     18.4     -
   Total Gate Charge                             Qg
                            VGS=4.5V                                                            -     9.6      -
                                                          VDS=15V, VGS=10V, ID=14A   (Note2)                         nC
   Gate to Source Charge                         Qgs                                            -     3.0      -
   Gate to Drain Charge                         Qgd                                             -     4.9      -
   Turn-On Delay Time                           td(on)                                          -     6.2      -
   Turn-On Rise Time                              tr      VDS=15V, VGS=10V                      -     7.0      -
                                                                                                                     ns
   Turn-Off Delay Time                          td(off)   ID=14A, RG=1.6             (Note2)    -     20.3     -
   Turn-Off Fall Time                             tf                                            -     6.0      -
   Source to Drain Diode Ratings
   Source to Drain Forward Voltage              VSD       VGS=0V, IS=14A             (Note2)    -     0.8     1.2    V
   Reverse Recovery Time                          trr     IS=14A, dI/dt=100A/ s                 -     17.7     -     ns
   Reverse Recovered Charge                      Qrr      IS=14A, dI/dt=100A/ s                 -     8.4      -     nC

   Note2) Pulse Test : Pulse Width 300     , Duty Cycle   2%




2009. 4. 24                        Revision No : 0                                                                         2/4
                                KU2303Q




2009. 4. 24   Revision No : 0             3/4
                                KU2303Q




2009. 4. 24   Revision No : 0             4/4
