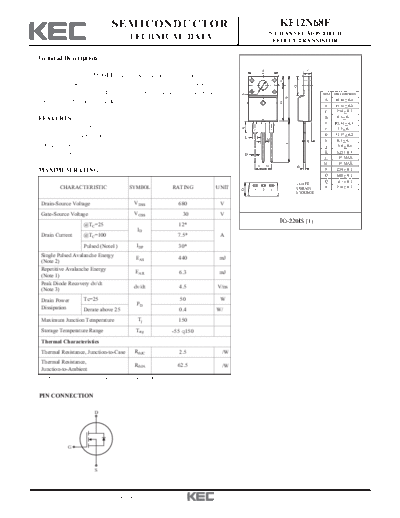

Image preview - the first page of the document
>> Download kf12n68f documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KF12N68F
N CHANNEL MOS FIELD
TECHNICAL DATA EFFECT TRANSISTOR
General Description
A C
This planar stripe MOSFET has better characteristics, such as fast
F
switching time, low on resistance, low gate charge and excellent
O
avalanche characteristics. It is mainly suitable for active power factor E DIM MILLIMETERS
B
A _
10.16 + 0.2
correction and switching mode power supplies.
G
B _
15.87 + 0.2
C _
2.54 + 0.2
_
FEATURES D 0.8 + 0.1
E _
3.18 + 0.1
VDSS=680V, ID=12A
K
F _
3.3 + 0.1
Drain-Source ON Resistance : G _
12.57 + 0.2
L M
R H _
0.5 + 0.1
RDS(ON)(Max)=0.71 @VGS=10V
J
J _
13.0 + 0.5
Qg(typ.)= 30nC K _
3.23 + 0.1
D
L 1.47 MAX
M 1.47 MAX
N N H
MAXIMUM RATING (Tc=25 ) N _
2.54 + 0.2
O _
6.68 + 0.2
Q _
4.7 + 0.2
1. GATE
CHARACTERISTIC SYMBOL RATING UNIT 2. DRAIN R _
2.76 + 0.2
Q
1 2 3
3. SOURCE
Drain-Source Voltage VDSS 680 V
Gate-Source Voltage VGSS 30 V
TO-220IS (1)
@TC=25 12*
ID
Drain Current @TC=100 7.5* A
Pulsed (Note1) IDP 30*
Single Pulsed Avalanche Energy EAS 440 mJ
(Note 2)
Repetitive Avalanche Energy EAR 6.3 mJ
(Note 1)
Peak Diode Recovery dv/dt
dv/dt 4.5 V/ns
(Note 3)
Drain Power Tc=25 50 W
PD
Dissipation Derate above 25 0.4 W/
Maximum Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
Thermal Characteristics
Thermal Resistance, Junction-to-Case RthJC 2.5 /W
Thermal Resistance,
RthJA 62.5 /W
Junction-to-Ambient
* : Drain current limited by maximum junction temperature.
PIN CONNECTION
D
G
S
2012. 12. 21 Revision No : 0 1/6
KF12N68F
ELECTRICAL CHARACTERISTICS (Tc=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Static
Drain-Source Breakdown Voltage BVDSS ID=250 A, VGS=0V 680 - - V
Breakdown Voltage Temperature Coefficient BVDSS/ Tj ID=250 A, Referenced to 25 - 0.65 - V/
Drain Cut-off Current IDSS VDS=680V, VGS=0V - - 10 uA
Gate Threshold Voltage Vth VDS=VGS, ID=250 A 2.5 - 4.5 V
Gate Leakage Current IGSS VGS= 30V, VDS=0V - - 100 nA
Drain-Source ON Resistance RDS(ON) VGS=10V, ID=6A - 0.58 0.71
Dynamic
Total Gate Charge Qg - 30 -
VDS=520V, ID=12A
Gate-Source Charge Qgs - 7.0 - nC
VGS=10V (Note4,5)
Gate-Drain Charge Qgd - 11 -
Turn-on Delay time td(on) - 35 -
VDD=325V
Turn-on Rise time tr - 40 -
ID=12A ns
Turn-off Delay time td(off) - 90 -
RG=25 (Note4,5)
Turn-off Fall time tf - 45 -
Input Capacitance Ciss - 1700 -
Output Capacitance Coss VDS=25V, VGS=0V, f=1.0MHz - 175 - pF
Reverse Transfer Capacitance Crss - 11 -
Source-Drain Diode Ratings
Continuous Source Current IS - - 12
VGS
