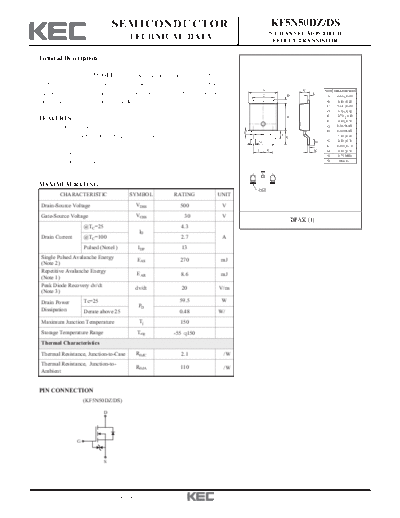

Image preview - the first page of the document
kf5n50dz-ds


>> Download kf5n50dz-ds documenatation <<

Text preview - extract from the document
                                    SEMICONDUCTOR                                                       KF5N50DZ/DS
                                                                                                    N CHANNEL MOS FIELD
                                            TECHNICAL DATA                                           EFFECT TRANSISTOR

 General Description

    This planar stripe MOSFET has better characteristics, such as fast
 switching time, fast reverse recovery time, low on resistance, low gate
                                                                                                A                       K           DIM MILLIMETERS
 charge and excellent avalanche characteristics. It is mainly suitable for                      C               D           L
                                                                                                                                     A         _
                                                                                                                                         6.60 + 0.20
 electronic ballast and switching mode power supplies.                                                                               B         _
                                                                                                                                          6.10 + 0.20
                                                                                                                                     C         _
                                                                                                                                         5.34 + 0.30
                                                                                                                                     D         _
                                                                                                                                          0.70 + 0.20
                                                                                                                                     E         _
                                                                                                                                         2.70 + 0.15
 FEATURES                                                                                                       B
                                                                                                                                     F         _
                                                                                                                                          2.30 + 0.10
                                                                                                                                     G   0.96 MAX
   VDSS= 500V, ID= 4.3A
                                                                                                                                     H   0.90 MAX
                                                                                    H
   Drain-Source ON Resistance : RDS(ON)=1.4 (Max) @VGS = 10V                                                J                        J         _
                                                                                                                                          1.80 + 0.20
                                                                                                                E
                                                                                            G                                   N    K         _
                                                                                                                                          2.30 + 0.10
   Qg(typ) = 12nC                                                                                                                    L         _
                                                                                                                                         0.50 + 0.10
                                                                                            F       F                       M        M         _
                                                                                                                                          0.50 + 0.10
   trr(typ) = 150ns (KF5N50DS)                                                                                                       N    0.70 MIN
   trr(typ) = 300ns (KF5N50DZ)                                                                                                       O     Max 0.1


                                                                                        1       2       3



 MAXIMUM RATING (Tc=25 )
                                                                                                O
             CHARACTERISTIC                 SYMBOL      RATING               UNIT
  Drain-Source Voltage                         VDSS       500                 V
  Gate-Source Voltage                          VGSS         30                V
                                                                                                                    DPAK (1)
                      @TC=25                               4.3
                                                ID
  Drain Current       @TC=100                              2.7                A
                      Pulsed (Note1)           IDP         13
  Single Pulsed Avalanche Energy               EAS        270                 mJ
  (Note 2)
  Repetitive Avalanche Energy                  EAR         8.6                mJ
  (Note 1)
  Peak Diode Recovery dv/dt
                                              dv/dt        20                V/ns
  (Note 3)
  Drain Power         Tc=25                               59.5                W
                                                PD
  Dissipation         Derate above 25                     0.48               W/
  Maximum Junction Temperature                  Tj        150
  Storage Temperature Range                    Tstg     -55 150
  Thermal Characteristics
  Thermal Resistance, Junction-to-Case         RthJC       2.1                /W
  Thermal Resistance, Junction-to-
                                               RthJA      110                 /W
  Ambient


 PIN CONNECTION
                      (KF5N50DZ/DS)

                              D




                  G



                               S




2010. 9. 1                         Revision No : 0                                                                                                      1/6
                                                                KF5N50DZ/DS

 ELECTRICAL CHARACTERISTICS (Tc=25 )
                 CHARACTERISTIC                         SYMBOL                            TEST CONDITION          MIN.   TYP.   MAX.   UNIT
  Static
  Drain-Source Breakdown Voltage                          BVDSS               ID=250      , VGS=0V                500     -       -     V
  Breakdown Voltage Temperature Coefficient              BVDSS/ Tj            ID=250 , Referenced to 25            -     0.55     -    V/
  Drain Cut-off Current                                    IDSS               VDS=500V, VGS=0V,                    -      -      10
  Gate Threshold Voltage                                       Vth            VDS=VGS, ID=250                     2.5     -      4.5    V
  Gate Leakage Current                                     IGSS                         VGS= 25V, VDS=0V           -      -       10
  Drain-Source ON Resistance                              RDS(ON)             VGS=10V, ID=2.15A                    -     1.10    1.4
  Dynamic
  Total Gate Charge                                            Qg                                                  -      12      -
                                                                              VDS=400V, ID=5A
  Gate-Source Charge                                        Qgs                                                    -     2.4      -     nC
                                                                              VGS=10V                 (Note4,5)
  Gate-Drain Charge                                        Qgd                                                     -     5.4      -
  Turn-on Delay time                                       td(on)                                                  -     22.5     -
                                                                              VDD=250V
  Turn-on Rise time                                            tr                                                  -      29      -
                                                                              ID=5A                                                     ns
  Turn-off Delay time                                      td(off)                                                 -      58      -
                                                                              RG=25                   (Note4,5)
  Turn-off Fall time                                           tf                                                  -      18      -
  Input Capacitance                                        Ciss                                                    -     430      -
  Output Capacitance                                       Coss               VDS=25V, VGS=0V, f=1.0MHz            -      71      -     pF
  Reverse Transfer Capacitance                             Crss                                                    -     7.5      -
  Source-Drain Diode Ratings
  Continuous Source Current                                    IS                                                  -      -      5
                                                                              VGS
