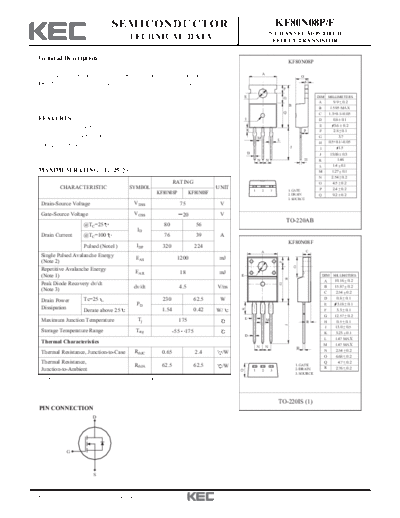

Image preview - the first page of the document
kf80n08p_f


>> Download kf80n08p_f documenatation <<

Text preview - extract from the document
                                   SEMICONDUCTOR                                                                           KF80N08P/F
                                                                                                                       N CHANNEL MOS FIELD
                                              TECHNICAL DATA                                                            EFFECT TRANSISTOR


 General Description
                                                                                                                                   KF80N08P

  It s mainly suitable for low voltage applications such as automotive,                                        A
                                                                                                                                            O
                                                                                                                                                C
 DC/DC converters and a load switch in battery powered applications
                                                                                                                               F

                                                                                               E                               G                    DIM MILLIMETERS
                                                                                                                                                     A        _
                                                                                                                                                          9.9 + 0.2
                                                                                                                                   B
                                                                                                                                                    B         15.95 MAX
                                                                                                                               Q                    C        1.3+0.1/-0.05
 FEATURES                                                                                      I                                                    D               _
                                                                                                                                                                0.8 + 0.1
                                                                                                                                                    E                _
                                                                                                                                                                 3.6 + 0.2
    VDSS= 75V, ID= 80A                                                                         K                                                                     _
                                                                                                                                            P        F          2.8 + 0.1
    Drain-Source ON Resistance :                                                                           M                                        G               3.7
                                                                                                                           L
                                                                                                                                                    H        0.5+0.1/-0.05
    RDS(ON)=10m (Max.) @VGS = 10V                                                                                                   J                I              1.5
                                                                                                   D                                                 J               _
                                                                                                                                                              13.08 + 0.3
                                                                                                           N       N                            H   K             1.46
                                                                                                                                                     L             _
                                                                                                                                                               1.4 + 0.1
 MAXIMUM RATING (Tc=25                    )                                                                                                         M               _
                                                                                                                                                               1.27 + 0.1
                                                                                                                                                    N               _
                                                                                                                                                               2.54 + 0.2
                                                                RATING                                                                              O              _
                                                                                                                                                               4.5 + 0.2
              CHARACTERISTIC                  SYMBOL                                UNIT               1       2       3                             P              _
                                                                                                                                                               2.4 + 0.2
                                                                                                                                   1. GATE
                                                       KF80N08P          KF80N08F                                                  2. DRAIN         Q              _
                                                                                                                                                               9.2 + 0.2
                                                                                                                                   3. SOURCE
   Drain-Source Voltage                        VDSS                75                V
   Gate-Source Voltage                         VGSS                 20               V
                                                                                                                                   TO-220AB
                     @TC=25                              80                56
                                                ID
   Drain Current     @TC=100                             76                39        A
                                                                                                                                   KF80N08F
                     Pulsed (Note1)             IDP      320               224
                                                                                                               A                                C
  Single Pulsed Avalanche Energy               EAS                1200               mJ
  (Note 2)                                                                                                                 F



                                                                                                                                        O
  Repetitive Avalanche Energy                  EAR                 18                mJ
  (Note 1)                                                                                 E                                                             DIM    MILLIMETERS
                                                                                                                               B


                                                                                                                                                         A              _
                                                                                                                                                                 10.16 + 0.2
  Peak Diode Recovery dv/dt
                                                                                                                           G




                                               dv/dt              4.5               V/ns                                                                 B              _
                                                                                                                                                                 15.87 + 0.2
  (Note 3)                                                                                                                                               C             _
                                                                                                                                                                 2.54 + 0.2
                     Tc=25                               230               62.5      W                                                                   D            _
                                                                                                                                                                  0.8 + 0.1
   Drain Power
                                                PD                                                                                                       E              _
                                                                                                                                                                  3.18 + 0.1
   Dissipation
                                                                                           K




                     Derate above 25                     1.54              0.42     W/                                                                   F            _
                                                                                                                                                                  3.3 + 0.1
                                                                                                                                                         G             _
                                                                                                                                                                 12.57 + 0.2
                                                Tj                                             L
   Maximum Junction Temperature                                   175                                              M
                                                                                                                                                R        H            _
                                                                                                                                                                  0.5 + 0.1
                                                                                                                               J




                                                                                                                                                         J            _
                                                                                                                                                                 13.0 + 0.5
   Storage Temperature Range                   Tstg             -55 175                                                                                  K            _
                                                                                                                                                                 3.23 + 0.1
                                                                                               D
                                                                                                                                                         L       1.47 MAX
   Thermal Characteristics
                                                                                                                                                         M       1.47 MAX
                                                                                                           N       N                    H
                                               RthJC                                                                                                     N            _
                                                                                                                                                                 2.54 + 0.2
   Thermal Resistance, Junction-to-Case                  0.65              2.4       /W
                                                                                                                                                         O            _
                                                                                                                                                                 6.68 + 0.2
   Thermal Resistance,                                                                                                                                   Q            _
                                                                                                                                                                  4.7 + 0.2
                                               RthJA     62.5              62.5      /W                                                 1. GATE
                                                                                                                                                         R            _
                                                                                                                                                                 2.76 + 0.2
   Junction-to-Ambient                                                                                 1       2       3                2. DRAIN
                                                                                           Q




                                                                                                                                        3. SOURCE
 * : Drain current limited by maximum junction temperature.



                                                                                                                           TO-220IS (1)
  PIN CONNECTION
                          D




                G



                          S



2008. 6. 19                    Revision No : 0                                                                                                                                 1/7
                                                                         KF80N08P/F

 ELECTRICAL CHARACTERISTICS (Tc=25                                   )
                CHARACTERISTIC                                  SYMBOL                   TEST CONDITION           MIN.   TYP.   MAX.   UNIT

   Static
   Drain-Source Breakdown Voltage                                BVDSS          ID=250 A, VGS=0V                   75     -       -     V
   Breakdown Voltage Temperature Coefficient                    BVDSS/ Tj       ID=250 A, Referenced to 25         -     0.11     -    V/
   Drain Cut-off Current                                          IDSS          VDS=75V, VGS=0V,                   -      -      10     A
   Gate Threshold Voltage                                          Vth          VDS=VGS, ID=250 A                  2      -      4      V
   Gate Leakage Current                                           IGSS          VGS= 20V, VDS=0V                   -      -      100   nA
   Drain-Source ON Resistance                                   RDS(ON)         VGS=10V, ID=40A                    -     8.5    10.0   m
   Dynamic
   Total Gate Charge                                               Qg                                              -     107      -
                                                                                VDS=60V, ID=80A
   Gate-Source Charge                                              Qgs                                             -      20      -     nC
                                                                                VGS=10V               (Note4,5)
   Gate-Drain Charge                                               Qgd                                             -      47      -
   Turn-on Delay time                                             td(on)                                           -      63      -
                                                                                VDD=37.5V
   Turn-on Rise time                                                tr                                             -     228      -
                                                                                ID=80A                                                  ns
   Turn-off Delay time                                            td(off)                                          -     217      -
                                                                                RG=25                 (Note4,5)
   Turn-off Fall time                                               tf                                             -     150      -
   Input Capacitance                                               Ciss                                            -     3860     -
   Output Capacitance                                             Coss          VDS=25V, VGS=0V, f=1.0MHz          -     840      -     pF
   Reverse Transfer Capacitance                                    Crss                                            -     175      -
   Source-Drain Diode Ratings
   Continuous Source Current                                        IS                                             -      -      80
                                                                                VGS
