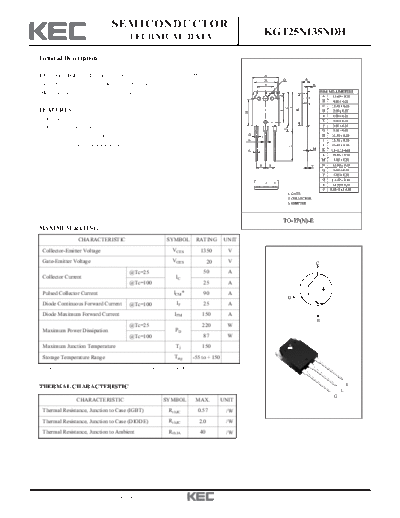

Image preview - the first page of the document
kgt25n135ndh


>> Download kgt25n135ndh documenatation <<

Text preview - extract from the document
                                  SEMICONDUCTOR
                                          TECHNICAL DATA
                                                                                                 KGT25N135NDH

  General Description

  KEC NPT IGBTs offer low switching losses, high energy efficiency
  and high avalanche ruggedness for soft switching application such as
  IH(induction heating), microwave oven, etc.

  FEATURES
    High speed switching
    High system efficiency
    Soft current turn-off waveforms
    Extremely enhanced avalanche capability




  MAXIMUM RATING (Ta=25 )
                   CHARACTERISTIC                          SYMBOL          RATING         UNIT
   Collector-Emitter Voltage                                  VCES           1350          V
   Gate-Emitter Voltage                                       VGES                20       V

                                          @Tc=25                              50           A
   Collector Current                                            IC
                                          @Tc=100                             25           A
   Pulsed Collector Current                                   ICM*            90           A
   Diode Continuous Forward Current       @Tc=100               IF            25           A
   Diode Maximum Forward Current                               IFM            150          A

                                          @Tc=25                              220          W
   Maximum Power Dissipation                                   PD
                                          @Tc=100                             87           W
   Maximum Junction Temperature                                 Tj            150
   Storage Temperature Range                                   Tstg       -55 to + 150
  *Repetitive rating : Pulse width limited by max. junction temperature

                                                                                                                   E
  THERMAL CHARACTERISTIC                                                                                       C
                                                                                                           G
                  CHARACTERISTIC                         SYMBOL            MAX.          UNIT
   Thermal Resistance, Junction to Case (IGBT)              Rt h JC         0.57          /W
   Thermal Resistance, Junction to Case (DIODE)             Rt h JC         2.0           /W
   Thermal Resistance, Junction to Ambient                  Rt h JA          40           /W




2012. 7. 12                     Revision No : 0                                                                        1/8
                                                        KGT25N135NDH

 ELECTRICAL CHARACTERISTICS (Ta=25 )
              CHARACTERISTIC                SYMBOL                  TEST CONDITION          MIN.   TYP.   MAX.       UNIT
   Static
   Collector-Emitter Breakdown Voltage       BVCES       VGE=0V , IC=1mA                    1350    -       -         V
   Collector Cut-off Current                   ICES      VGE=0V, VCE=1350V                   -      -      1.0       mA
   Gate Leakage Current                        IGES      VCE=0V, VGE=    20V                 -      -      100       nA
   Gate Threshold Voltage                    VGE(th)     VGE=VCE, IC=25mA                   4.5    6.0     7.5        V
                                                         VGE=15V, IC=25A                     -     1.85   2.25        V
   Collector-Emitter Saturation Voltage      VCE(sat)    VGE=15V, IC=25A, TC = 125           -     2.15     -         V
                                                         VGE=15V, IC=50A                     -     2.40     -         V
   Dynamic
   Total Gate Charge                           Qg                                            -     150      -         nC
   Gate-Emitter Charge                         Qge       VCC=600V, VGE=15V, IC= 25A          -      20      -         nC
   Gate-Collector Charge                       Qgc                                           -      70      -         nC
   Turn-On Delay Time                         td(on)                                         -      40      -         ns
   Rise Time                                    tr                                           -      25      -         ns
   Turn-Off Delay Time                        td(off)                                        -     200      -         ns
                                                         VCC=600V, IC=25A, VGE=15V,RG=10
   Fall Time                                    tf                                           -     150      -         ns
                                                         Inductive Load, TC = 25
   Turn-On Switching Loss                      Eon                                           -     3.5      -         mJ
   Turn-Off Switching Loss                     Eoff                                          -     1.2      -         mJ
   Total Switching Loss                        Ets                                           -     4.7           -    mJ
   Turn-On Delay Time                         td(on)                                         -      45      -         ns
   Rise Time                                    tr                                           -      30      -         ns
   Turn-Off Delay Time                        td(off)                                        -     210      -         ns
                                                         VCC=600V, IC=25A, VGE=15V, RG=10
   Fall Time                                    tf                                           -     220      -         ns
                                                         Inductive Load, TC = 125
   Turn-On Switching Loss                      Eon                                           -     4.0      -         mJ
   Turn-Off Switching Loss                     Eoff                                          -     2.0      -         mJ
   Total Switching Loss                        Ets                                           -     6.0      -         mJ
   Input Capacitance                           Cies                                          -     2500     -         pF
   Ouput Capacitance                           Coes      VCE=30V, VGE=0V, f=1MHz             -     100      -         pF
   Reverse Transfer Capacitance                Cres                                          -      70      -         pF




 Marking




2012. 7. 12                       Revision No : 0                                                                           2/8
                                                     KGT25N135NDH

 ELECTRICAL CHARACTERISTIC OF DIODE
              CHARACTERISTIC               SYMBOL                TEST CONDITION   MIN.   TYP.   MAX.   UNIT
                                                                        TC=25      -     1.8     2.5
   Diode Forward Voltage                      VF      IF = 25A                                          V
                                                                        TC=125     -     1.9      -
                                                                        TC=25      -     270    350
   Diode Reverse Recovery Time                 trr                                                      ns
                                                                        TC=125     -     300      -

                                                      IF = 25A          TC=25      -      30     39
   Diode Peak Reverse Recovery Current         Irr                                                      A
                                                      di/dt = 200A/ s   TC=125     -      31      -
                                                                        TC=25      -     3100   4700
   Diode Reverse Recovery Charge              Qrr                                                       nC
                                                                        TC=125     -     4650     -




2012. 7. 12                      Revision No : 0                                                              3/8
                                KGT25N135NDH




2012. 7. 12   Revision No : 0                  4/8
                                KGT25N135NDH




2012. 7. 12   Revision No : 0                  5/8
                                KGT25N135NDH




2012. 7. 12   Revision No : 0                  6/8
                                KGT25N135NDH




2012. 7. 12   Revision No : 0                  7/8
                                KGT25N135NDH




2012. 7. 12   Revision No : 0                  8/8
