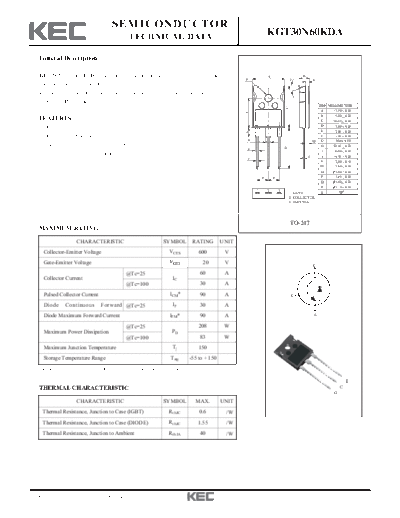

Image preview - the first page of the document
>> Download kgt30n60kda documenatation <<
Text preview - extract from the document
SEMICONDUCTOR
TECHNICAL DATA
KGT30N60KDA
General Description
KEC NPT Trench IGBTs offer low switching losses, high energy efficiency A B
O S K
and short circuit ruggedness.
It is designed for applications such as motor control, uninterrupted power
supplies(UPS), general inverters.
DIM MILLIMETERS
C
A _
15.90 + 0.30
J
B _
5.00 + 0.20
FEATURES C _
20.85 + 0.30
D _
3.00 + 0.20
High speed switching _
E 2.00 + 0.20
G
High system efficiency F _
1.20 + 0.20
D M G Max. 4.50
Short Circuit Withstand Times 10us H _
20.10 + 0.70
H
E _
I 0.60 + 0.02
Extremely enhanced avalanche capability J _
I 14.70 + 0.20
F _
K 2.00 + 0.10
M _
2.40 + 0.20
O _
3.60 + 0.30
P P P _
5.45 + 0.30
Q _
3.60 + 0.20
R _
7.19 + 0.10
1 2 3
1. GATE S
2. COLLECTOR
3. EMITTER
TO-247
MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Collector-Emitter Voltage VCES 600 V
Gate-Emitter Voltage VGES 20 V C
@Tc=25 60 A
Collector Current IC
@Tc=100 30 A
Pulsed Collector Current ICM* 90 A G
Diode Continuous Forward @Tc=25 IF 30 A
Diode Maximum Forward Current IFM* 90 A E
@Tc=25 208 W
Maximum Power Dissipation PD
@Tc=100 83 W
Maximum Junction Temperature Tj 150
Storage Temperature Range Tstg -55 to + 150
*Repetitive rating : Pulse width limited by max. junction temperature
E
THERMAL CHARACTERISTIC C
G
CHARACTERISTIC SYMBOL MAX. UNIT
Thermal Resistance, Junction to Case (IGBT) Rt h JC 0.6 /W
Thermal Resistance, Junction to Case (DIODE) Rt h JC 1.55 /W
Thermal Resistance, Junction to Ambient Rt h JA 40 /W
2012. 2. 23 Revision No : 0 1/8
KGT30N60KDA
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Static
Collector-Emitter Breakdown Voltage BVCES VGE=0V , IC=250 600 - - V
Collector Cut-off Current ICES VGE=0V, VCE=600V - - 250
Gate Leakage Current IGES VCE=0V, VGE= 20V - - 100 nA
Gate Threshold Voltage VGE(th) VGE=VCE, IC=3mA 4.5 5.5 7.0 V
VGE=15V, IC=30A - 1.80 2.20 V
Collector-Emitter Saturation Voltage VCE(sat) VGE=15V, IC=30A, TC = 125 - 2.10 - V
VGE=15V, IC=60A, TC = 25 - 2.55 - V
Dynamic
Total Gate Charge Qg - 170 - nC
Gate-Emitter Charge Qge VCC=300V, VGE=15V, IC= 30A - 25 - nC
Gate-Collector Charge Qgc - 80 - nC
Turn-On Delay Time td(on) - 45 - ns
Rise Time tr - 30 - ns
Turn-Off Delay Time td(off) - 155 - ns
VCC=300V, IC=30A, VGE=15V,RG=10
Fall Time tf - 33 - ns
Inductive Load, TC = 25
Turn-On Switching Loss Eon - 0.55 - mJ
Turn-Off Switching Loss Eoff - 0.3 - mJ
Total Switching Loss Ets - 0.85 - mJ
Turn-On Delay Time td(on) - 45 - ns
Rise Time tr - 30 - ns
Turn-Off Delay Time td(off) - 170 - ns
VCC=300V, IC=30A, VGE=15V,RG=10
Fall Time tf - 35 - ns
Inductive Load, TC = 125
Turn-On Switching Loss Eon - 0.6 - mJ
Turn-Off Switching Loss Eoff - 0.4 - mJ
Total Switching Loss Ets - 1.0 - mJ
Input Capacitance Cies - 2200 - pF
Ouput Capacitance Coes VCE=30V, VGE=0V, f=1MHz - 200 - pF
Reverse Transfer Capacitance Cres - 30 - pF
Short Circuit Withstand Time tsc VCC=300V, VGE=15V, TC=100 10 - - s
Marking
KGT 1 Device Mark
30N60KDA
001 2 Lot No
2012. 2. 23 Revision No : 0 2/8
KGT30N60KDA
ELECTRICAL CHARACTERISTIC OF DIODE
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
TC=25 - 1.7 2.5
Diode Forward Voltage VF IF = 30A V
TC=125 - 1.4 -
TC=25 - 51 -
Diode Reverse Recovery Time trr ns
TC=125 - 85 -
VCE = 300V
TC=25 - 12 -
Diode Peak Reverse Recovery Current Irr IF = 30A A
TC=125 - 18 -
di/dt = -600A/ s
TC=25 - 950 -
Diode Reverse Recovery Charge Qrr nC
TC=125 - 1100 -
2012. 2. 23 Revision No : 0 3/8
KGT30N60KDA
Typical Performance Characteristics
Fig 1. Saturation Voltage Characteristics Fig 2. Saturation Voltage Characteristics
100 100
Common Emitter
12V 90 VGE = 15V
20V 15V TC = 25 C
Collector Current IC (A)
Collector Current IC (A)
80 TC = 25 C
80
TC = 125 C
70
60 60
TC = 125 C
10V 50
40 40
30
20 20
10
0 0
0 2 4 6 8 10 0 1 2 3 4
Collector - Emitter Voltage VCE (V) Collector - Emitter Voltage VCE (V)
Fig 3. Saturation Voltage vs. Case Temperature Fig 4. Saturation Voltage vs. VGE
3.5 20
Collector - Emitter Voltage VCE (V)
Collector - Emitter Voltage VCE (V)
Common Emitter Common Emitter
VGE = 15V TC = 25 C
16
3.0
IC = 30A
IC = 60A 12
2.5
8
2.0 IC = 30A IC = 15A IC = 50A
4
1.5 0
0 50 100 150 0 4 8 12 16 20
Case Temperature TC ( C ) Gate - Emitter Voltage VGE (V)
Fig 5. Saturation Voltage vs. VGE Fig 6. Capacitance Characteristics
20 4000
Collector - Emitter Voltage VCE (V)
Common Emitter
Common Emitter
3500 VGE = 0V, f = 1MHZ
TC = 125 C
TC = 25 C
16 Cies
3000
Capacitance (pF)
12 2500
2000
IC = 30A
8
1500
Coes
IC = 15A IC = 50A 1000
4
500
Cres
0 0
0 4 8 12 16 20 1 10 100
Gate - Emitter Voltage VGE (V) Collector - Emitter Voltage VCE (V)
2012. 2. 23 Revision No : 0 4/8
KGT30N60KDA
Typical Performance Characteristics (Continued)
Fig 7. Turn-On Characteristics vs. Gate Resistance Fig 8. Turn-Off Characteristics vs. Gate Resistance
100 1000
td(on)
Switching Time (ns)
Switching Time (ns)
td(off)
tr 100
Common Emitter Common Emitter
VCC = 300V, VGE = 15V VCC = 300V, VGE = 15V
IC = 30A tf
IC = 30A
25
TC =25 C TC =25 C
TC =125 C TC =125 C
10 10
0 20 40 60 0 20 40 60
Gate Resistance RG () Gate Resistance RG ()
Fig 9. Switching Loss vs. Gate Resistance Fig 10. Turn-On Characteristics vs. Collector Current
10 100
Switching Time (ns)
Switching Loss (mJ)
Eon td(on)
1
Eoff Common Emitter
VCC = 300V, VGE = 15V tr Common Emitter
IC = 30A VCC = 300V, RG = 10
TC =25 C TC = 25 C
TC =125 C TC = 125
0.1 10
0 20 40 60 0 20 30 40 60
Gate Resistance RG () Collector Current IC ()
Fig 11. Turn-Off Characteristics vs. Collector Current Fig 12. Switching Loss vs. Collector Current
1000 Common Emitter 10 Common Emitter
VCC = 300V, RG = 10 VCC = 300V, RG = 10
TC = 25 C TC = 25 C
TC = 125 C TC = 125
Switching Loss (mJ)
Switching Time (ns)
td(off) 1
100 Eoff
tf
1.0 Eon
10 0.01
0 20 40 60 0 20 40 60
Collector Current IC () Collector Current IC ()
2012. 2. 23 Revision No : 0 5/8
KGT30N60KDA
Typical Performance Characteristics (Continued)
Fig 13. Gate Charge Characteristics Fig 14. SOA Characteristics
18 100
