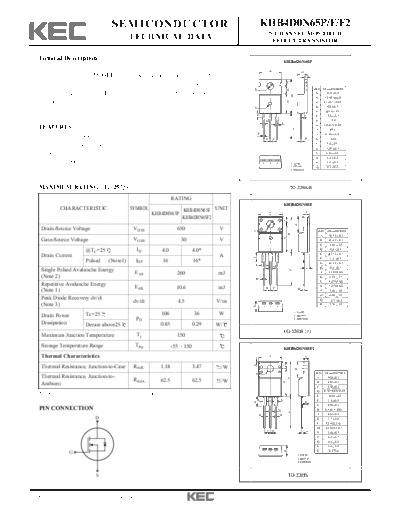

Image preview - the first page of the document
khb4d0n65p_f_f2


>> Download khb4d0n65p_f_f2 documenatation <<

Text preview - extract from the document
                                  SEMICONDUCTOR                                                      KHB4D0N65P/F/F2
                                                                                                             N CHANNEL MOS FIELD
                                               TECHNICAL DATA                                                 EFFECT TRANSISTOR

  General Description                                                                                                            KHB4D0N65P
                                                                                                             A
                                                                                                                                                         O
    This planar stripe MOSFET has better characteristics, such as fast                                                                                       C
                                                                                                                                     F
  switching time, low on resistance, low gate charge and excellent
                                                                                         E                                           G                           DIM MILLIMETERS
  avalanche characteristics. It is mainly suitable for switch mode power                                                                     B
                                                                                                                                                                  A        _
                                                                                                                                                                       9.9 + 0.2
                                                                                                                                                                 B         15.95 MAX
  supplies.                                                                                                                          Q                           C        1.3+0.1/-0.05
                                                                                             I                                                                   D               _
                                                                                                                                                                             0.8 + 0.1
                                                                                                                                                                 E                _
                                                                                                                                                                              3.6 + 0.2
                                                                                             K                                                           P        F               _
                                                                                                                                                                             2.8 + 0.1
                                                                                                         M                                                       G               3.7
                                                                                                                             L
                                                                                                                                                                          0.5+0.1/-0.05
  FEATURES                                                                                                                                   J
                                                                                                                                                                 H
                                                                                                                                                                  I              1.5
                                                                                                 D                                                                J               _
                                                                                                                                                                           13.08 + 0.3
    VDSS=650V, ID=4A                                                                                                                                         H   K              1.46
                                                                                                         N       N
                                                                                                                                                                                 _
    Drain-Source ON Resistance                                                                                                                                    L          1.4 + 0.1
                                                                                                                                                                                  _
                                                                                                                                                                 M           1.27 + 0.1
     : RDS(ON)=3.0   @VGS = 10V                                                                                                                                  N                _
                                                                                                                                                                             2.54 + 0.2
                                                                                                                                                                 O               _
                                                                                                                                                                             4.5 + 0.2
    Qg(typ.)=20nC                                                                                    1       2       3                   1. GATE                  P               _
                                                                                                                                                                             2.4 + 0.2
                                                                                                                                         2. DRAIN                Q               _
                                                                                                                                                                             9.2 + 0.2
                                                                                                                                         3. SOURCE




  MAXIMUM RATING (Tc=25                    )                                                                                             TO-220AB

                                                                 RATING
                                                                                                                                 KHB4D0N65F
              CHARACTERISTIC                   SYMBOL              KHB4D0N65F UNIT                           A                                               C
                                                        KHB4D0N65P
                                                                   KHB4D0N65F2




                                                                                                                                 F



                                                                                                                                                 O
   Drain-Source Voltage                         VDSS               650             V     E                                                                            DIM     MILLIMETERS




                                                                                                                                     B
                                                                                                                                                                      A               _
                                                                                                                                                                               10.16 + 0.2




                                                                                                                                 G
   Gate-Source Voltage                          VGSS                30             V                                                                                  B               _
                                                                                                                                                                               15.87 + 0.2
                                                                                                                                                                      C              _
                                                                                                                                                                               2.54 + 0.2
                                                 ID        4.0             4.0*                                                                                                     _
                      @TC=25                                                                                                                                          D         0.8 + 0.1
                                                                                                                                                                      E               _
                                                                                                                                                                                3.18 + 0.1
   Drain Current                                                                   A
                                                                                         K




                                                                                                                                                                      F             _
                                                                                                                                                                                3.3 + 0.1
                      Pulsed     (Note1)         IDP       16              16*                                                                                        G              _
                                                                                                                                                                               12.57 + 0.2
                                                                                             L                   M
                                                                                                                                                             R        H             _
                                                                                                                                                                                0.5 + 0.1
   Single Pulsed Avalanche Energy               EAS                                                                                      J
                                                                   260            mJ                                                                                  J        13.0 MAX
   (Note 2)                                                                                  D
                                                                                                                                                                      K             _
                                                                                                                                                                               3.23 + 0.1
                                                                                                                                                                      L        1.47 MAX
   Repetitive Avalanche Energy                  EAR                                                                                                                   M        1.47 MAX
                                                                  10.6            mJ                     N       N                                   H
   (Note 1)                                                                                                                                                           N              _
                                                                                                                                                                               2.54 + 0.2
                                                                                                                                                                      O             _
                                                                                                                                                                               6.68 + 0.2
   Peak Diode Recovery dv/dt                                                                                                                                          Q             _
                                                                                                                                                                                4.7 + 0.2
                                                dv/dt              4.5            V/ns
   (Note 3)                                                                                                                                                           R             _
                                                                                                                                                                               2.76 + 0.2
                                                                                         Q




                                                                                                     1       2       3
                                                                                                                                             1. GATE
   Drain Power        Tc=25                                106             36      W                                                         2. DRAIN
                                                 PD                                                                                          3. SOURCE
   Dissipation        Derate above25                      0.85             0.29   W/
                                                                                                                                 TO-220IS (1)
   Maximum Junction Temperature                  Tj                150
   Storage Temperature Range                    Tstg             -55 150                                                         KHB4D0N65F2
   Thermal Characteristics                                                                                   A                                               C
                                                                                                                                 F




                                                                                         S
   Thermal Resistance, Junction-to-Case         RthJC     1.18             3.47    /W
                                                                                                                                                 P




                                                                                             E                                                                   DIM        MILLIMETERS
   Thermal Resistance, Junction-to-                                                                                                                               A                _
                                                                                                                                                                              10.0 + 0.3
                                                                                                                                     B




                                                RthJA     62.5             62.5    /W                                                                             B                _
                                                                                                                                 G




                                                                                                                                                                              15.0 + 0.3
   Ambient                                                                                                                                                        C                _
                                                                                                                                                                              2.70 + 0.3
                                                                                                                                                                  D         0.76+0.09/-0.05
  * : Drain current limited by maximum junction temperature.                                                                                                      E            3.2 +0.2
                                                                                                                                                                                      _
                                                                                                 L                           L                                    F                _
                                                                                                                                                                               3.0 + 0.3
                                                                                         K




                                                                                                                                                             R
                                                                                                                                                                  G                _ 0.3
                                                                                                                                                                              12.0 +
  PIN CONNECTION                                                                                                         M                                        H         0.5+0.1/-0.05
                                                                                                                                     J




                                                                                                 D                       D                                        J                _
                                                                                                                                                                              13.6 + 0.5
                          D                                                                                                                                       K                _
                                                                                                                                                                               3.7 + 0.2
                                                                                                                                                                  L         1.2+0.25/-0.1
                                                                                                                                                                  M         1.5+0.25/-0.1
                                                                                                         N       N                                           H    N                _
                                                                                                                                                                              2.54 +0.1
                                                                                                                                                                  P                _
                                                                                                                                                                               6.8 + 0.1
                                                                                                                                                                  Q                _
                                                                                                                                                                               4.5 + 0.2
                                                                                                                                                                  R                _
                                                                                                                                                                               2.6 + 0.2
                                                                                                                                                                               0.5 Typ
                                                                                                                                 Q




                                                                                                     1       2       3                                            S
                G                                                                                                                                1. GATE
                                                                                                                                                 2. DRAIN
                                                                                                                                                 3. SOURCE



                          S                                                                                                          TO-220IS



2007. 5. 10                    Revision No : 0                                                                                                                                                1/1
                                                       KHB4D0N65P/F/F2

 ELECTRICAL CHARACTERISTICS (Tc=25                               )

                CHARACTERISTIC                          SYMBOL                     TEST CONDITION             MIN.   TYP.   MAX.    UNIT

   Static
   Drain-Source Breakdown Voltage                         BVDSS             ID=250 A, VGS=0V                  650     -       -      V
   Breakdown Voltage Temperature Coefficient            BVDSS/ Tj           ID=250 A, Referenced to 25         -     0.95     -     V/
   Gate Threshold Voltage                                      Vth          VDS=VGS, ID=250 A                 2.0     -      4.0     V
   Drain Cut-off Current                                      IDSS          VDS=650V, VGS=0V,                  -      -      10      A
   Gate Leakage Current                                       IGSS          VGS= 30V, VDS=0V                   -      -      100    nA
   Drain-Source ON Resistance                            RDS(ON)            VGS=10V, ID=2.0A                   -     2.4     3.0
   Forward Transconductance                                    gFS          VDS=50V, ID=2.0A      (Note4)      -     3.8      -      S
   Dynamic
   Total Gate Charge                                           Qg                                              -      20     25
                                                                            VDS=520V, ID=4.0A
   Gate-Source Charge                                          Qgs                                             -     4.0      -      nC
                                                                            VGS=10V              (Note4, 5)
   Gate-Drain Charge                                          Qgd                                              -     7.5      -
   Turn-on Delay time                                         td(on)                                           -     29.5    69
   Turn-on Rise time                                            tr          VDD=325V, RG=25                    -     63.4   136.7
                                                                                                                                     ns
   Turn-off Delay time                                        td(off)       ID=4.0A              (Note4, 5)    -     63.2   136.4
   Turn-off Fall time                                           tf                                             -      30     70
   Input Capacitance                                          Ciss                                             -     645    838
   Output Capacitance                                         Coss          VDS=25V, VGS=0V, f=1.0MHz          -      60     78      pF
   Reverse Transfer Capacitance                               Crss                                             -     7.4     9.6
   Source-Drain Diode Ratings
   Continuous Source Current                                    IS                                             -      -      4.0
                                                                            VGS
