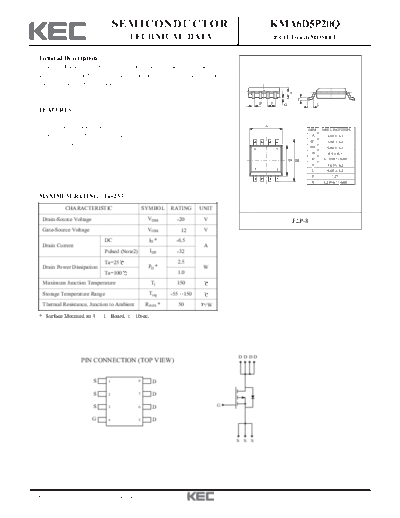

Image preview - the first page of the document
>> Download kma6d5p20q documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KMA6D5P20Q
TECHNICAL DATA P-CH Trench MOSFET
General Description
Battery Packs and Battery-powered portable equipment applications.
It s mainly suitable for use as a load switch in battery powered applications
and protection in battery packs.
H
T
D P G L
FEATURES
VDSS=-20V, ID=-6.5A.
Drain-Source ON Resistance. A
DIM MILLIMETERS
: RDS(ON)=35m (Max.) @ VGS=-4.5V. A _
4.85 + 0.2
B1 _
3.94 + 0.2
: RDS(ON)=60m (Max.) @ VGS=-2.5V. B2 _
8 5 6.02 + 0.3
D _
0.4 + 0.1
B1 B2 G 0.15+0.1/-0.05
H _
1.63 + 0.2
1 4 L _
0.65 + 0.2
P 1.27
T 0.20+0.1/-0.05
MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Drain-Source Voltage VDSS -20 V FLP-8
Gate-Source Voltage VGSS 12 V
DC ID * -6.5
Drain Current A
Pulsed (Note2) IDP -32
Ta=25 2.5
Drain Power Dissipation PD * W
Ta=100 1.0
Maximum Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
Thermal Resistance, Junction to Ambient RthJA * 50 /W
* : Surface Mounted on 1 1 Board, t 10sec.
D DDD
PIN CONNECTION (TOP VIEW)
S 1 8 D
S 2 7 D
S G
3 6 D
G 4 5 D
S S S
2007. 3. 22 Revision No : 3 1/5
KMA6D5P20Q
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Static
Drain-Source Breakdown Voltage BVDSS ID=-250 A, VGS=0V, -20 - - V
Drain Cut-off Current IDSS VDS=-20V, VGS=0V, - - -1 A
Gate Threshold Voltage Vth VDS=VGS, ID=-250 A -0.6 - - V
Gate Leakage Current IGSS VGS= 12V, VDS=0V - - 100 nA
VGS=-4.5V, ID=-6.5A (Note 2) - 27 35
Drain-Source ON Resistance RDS(ON) m
VGS=-2.5V, ID=-5.0A (Note 2) - 46 60
Dynamic (Note 3)
Total Gate Charge Qg VDS=-10V, ID=-6.5A - 13.6 -
Gate-Source Charge Qgs VGS=-4.5V - 2.3 - nC
Gate-Drain Charge Qgd (Fig.1) - 5.5 -
Turn-on Delay time td(on) - 10 -
VDD=-10V,
Turn-on Rise time tr - 35 -
RL=1.5 , RG=6 ns
Turn-off Delay time td(off) - 38 -
(Fig.2)
Turn-off Fall time tf - 50 -
Source-Drain Diode Ratings
Continuous Source Current IS VGS < Vth (Note 1) - - -1.7 A
Diode Forward Voltage VSD IS=-6.5A, VGS=0V (Note 2) - - -1.5 V
Note 1) Based on thermal dissipation from junction to ambient while mounted on a 1 1 PCB Board.
Note 2) Pulse test : Pulse width 300 .
Note 3) Guaranteed by design, not subject to production testing.
2007. 3. 22 Revision No : 3 2/5
KMA6D5P20Q
2007. 3. 22 Revision No : 3 3/5
KMA6D5P20Q
2007. 3. 22 Revision No : 3 4/5
KMA6D5P20Q
2007. 3. 22 Revision No : 3 5/5
