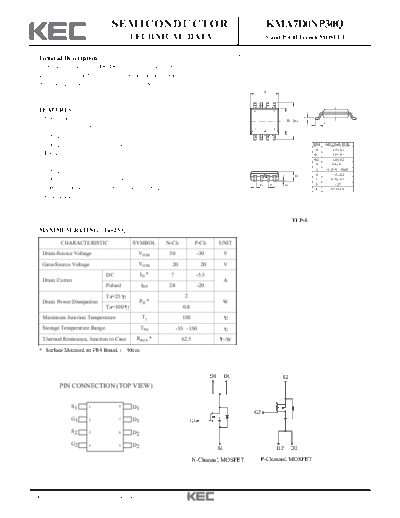

Image preview - the first page of the document
kma7d0np30q


>> Download kma7d0np30q documenatation <<

Text preview - extract from the document
                                  SEMICONDUCTOR                                                             KMA7D0NP30Q
                                               TECHNICAL DATA                                               N and P-CH Trench MOSFET


  General Description
  Switching regulator and DC-DC converter applications.
  It s mainly suitable for power management in notebook,
  portable equipment and battery powered systems.
                                                                                                            A




  FEATURES                                                                                          8               5

   N-Channel                                                                                                                 B1 B2
                                                                                                                                      T
                                                                                                                                                L
      : VDSS=30V, ID=7A.                                                                            1               4

      : RDS(ON)=17m (Typ.) @ VGS=10V.
      : RDS(ON)=22m (Typ.) @ VGS=4.5V.                                                                                                    DIM   MILLIMETERS
                                                                                                                                           A              _
                                                                                                                                                     4.9 + 0.1
    P-Channel                                                                                                                              B1             _
                                                                                                                                                     3.9 + 0.1
                                                                                                                                           B2             _
                                                                                                                                                      6.0 + 0.2
      : VDSS=-30V, ID=-5.5A.                                                                                                               D             _
                                                                                                                                                     0.4 + 0.1
      : RDS(ON)=35m (Typ.) @ VGS=-10V.                                                                                                     G     0.15+0.1/-0.05
                                                                                                                                           H              _
                                                                                                                                                      1.5 + 0.2
                                                                                                                                  H
      : RDS(ON)=51m (Typ.) @ VGS=-4.5V.                                                                                                    L              _
                                                                                                                                                    0.75 + 0.2
                                                                                                        D       P            G             P           1.27
    Super high dense cell design for extermely low RDS(ON).                                                                                T        0.5 MAX

    Reliable and rugged.



                                                                                                                                 FLP-8
  MAXIMUM RATING (Ta=25                    )
               CHARACTERISTIC                  SYMBOL      N-Ch            P-Ch           UNIT
    Drain-Source Voltage                        VDSS          30               -30             V
    Gate-Source Voltage                         VGSS           20               20             V
                                DC                  ID *      7             -5.5
    Drain Curren                                                                               A
                                Pulsed              IDP       28               -20

                                Ta=25                                 2
    Drain Power Dissipation                         PD *                                   W
                                Ta=100                               0.8
    Maximum Junction Temperature                     Tj              150
    Storage Temperature Range                       Tstg           -55 150
    Thermal Resistance, Junction to Case        RthJA *             62.5                       /W
  * : Surface Mounted on FR4 Board, t 10sec.



                                                                                     D1        D1                        S2
           PIN CONNECTION (TOP VIEW)

                  S1    1            8         D1
                                                                                                    G2
                  G1    2            7         D1                         G1
                  S2    3            6         D2
                  G2    4            5         D2
                                                                                          S1                            D2       D2

                                                                           N-Channel MOSFET             P-Channel MOSFET




2005. 10. 25                    Revision No : 3                                                                                                                   1/8
                                                              KMA7D0NP30Q

  ELECTRICAL CHARACTERISTICS (Ta=25 )
               CHARACTERISTIC                 SYMBOL                      TEST CONDITION                MIN.   TYP.   MAX.   UNIT

    Static
                                                                                                 N-Ch    30     -       -
    Drain-Source Breakdown Voltage               BVDSS          ID= 250 A, VGS=0V                                             V
                                                                                                 P-Ch   -30     -       -
                                                                VDS=24V, VGS=0V                  N-Ch    -      -      1
    Drain Cut-off Current                         IDSS                                                                        A
                                                                VDS=-24V, VGS=0V                 P-Ch    -      -      -1
                                                                                                 N-Ch    1     1.5     2
    Gate Threshold Voltage                         Vth          VDS=VGS, ID=   250 A                                          V
                                                                                                 P-Ch    -1    -1.5    -2
                                                                                                 N-Ch
    Gate Leakage Current                          IGSS          VGS=   20V, VDS=0V                       -      -      100   nA
                                                                                                 P-Ch
                                                                VGS=10V, ID=7A                           -      17     24
                                                                                                 N-Ch
                                                                VGS=4.5V, ID=5A                          -      22     30
    Drain-Source ON Resistance                RDS(ON)(Note 1)                                                                m
                                                                VGS=-10V, ID=-5.5A                       -      35     56
                                                                                                 P-Ch
                                                                VGS=-4.5V, ID=-4A                        -      51     78
                                                                IDR=2A, VGS=0V                   N-Ch    -     0.7     1.3
    Source-Drain Diode Forward Voltage         VSD (Note 1)                                                                   V
                                                                IDR=-2.3A, VGS=0V                P-Ch    -     -0.7   -1.3
    Dynamic (Note 2)
                                                                                                 N-Ch    -      19     28
    Total Gate Charge                              Qg           N-Channel
                                                                VDS=15V, ID=7A                   P-Ch    -      33     43
                                                                VGS=10V                          N-Ch    -     1.6      -
    Gate-Source Charge                             Qgs                                                                        nC
                                                                P-Channel                        P-Ch    -      5       -
                                                                VDS=-15V, ID=-5.5A               N-Ch    -     3.6      -
    Gate-Drain Charge                              Qgd          VGS=-10V               (Fig.1)
                                                                                                 P-Ch    -      4       -
                                                                                                 N-Ch    -      11     20
    Turn-on Delay time                            td(on)        N-Channel
                                                                                                 P-Ch    -      12     24
                                                                VDD=15V, ID=2A
                                                                VIN=10V, RG=6                    N-Ch    -      17     28
    Turn-on Rise time                                tr
                                                                RL=7.5                           P-Ch    -      15     29
                                                                                                                              ns
                                                                P-Channel                        N-Ch    -      36     62
    Turn-off Delay time                           td(off)
                                                                VDD=-15V, ID=-2A                 P-Ch    -      35     60
                                                                VIN=-10V, RG=6
                                                                RL=7.5                 (Fig.2)   N-Ch    -      20     36
    Turn-off Fall time                               tf
                                                                                                 P-Ch    -      15     30
                                                                                                 N-Ch    -     835      -
    Input Capacitance                              Ciss         N-Channel
                                                                VDS=25V, VGS=0V                  P-Ch    -     950      -
                                                                f=1.0MHz                         N-Ch    -      15      -
    Reverse Transfer Capacitance                   Crss                                                                       pF
                                                                P-Channel                        P-Ch    -     110      -
                                                                VDS=-25V, VGS=0V                 N-Ch    -     145      -
    Output Capacitance                             Coss         f=1.0MHz
                                                                                                 P-Ch    -     160      -
  Note 1) Pulse test : Pulse width 300    , duty cycle 2%
  Note 2) Guaranteed by design, not subject to production testing.




2005. 10. 25                       Revision No : 3                                                                                  2/8
                                                                                                                      KMA7D0NP30Q


                                                N-Channel

                                                                                        ID - VDS                                                                                                       ID - VGS

                                                  30                                                                                                            30
                                                                              VGS = 4, 5, 6, 7, 8, 9, 10V
                                                  25                                                                                                            25




                                                                                                                                  Drain Current ID (A)
       Drain Current ID (A)




                                                  20                                                                                                            20

                                                  15                                             VGS=3V
                                                                                                                                                                15                                Tj=125 C


                                                  10                                                                                                            10
                                                                                                                                                                                                                           Tj= -55 C
                                                                                                                                                                                                 Tj=25 C
                                                     5                                                                                                           5
                                                                                                  VGS=2V
                                                     0                                                                                                           0
                                                         0              1               2             3           4          5                                        0               1            2                  3          4      5

                                                                        Drain - Source Voltage VDS (V)                                                                                    Gate - Source Voltage VGS (V)




                                                                                         Vth - Tj                                                                                                 RDS(ON) - ID
         Normalized Threshold Voltage Vth (V)




                                                 1.6                                                                                                             40
                                                             IDS= 250
