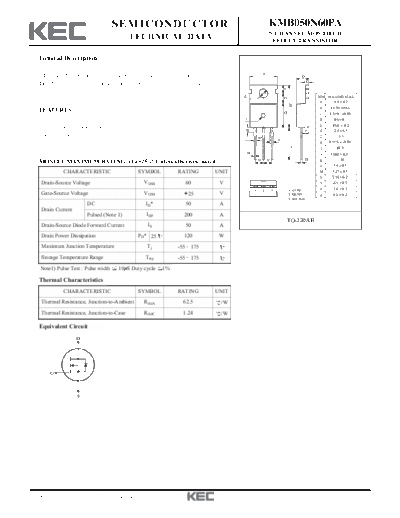

Image preview - the first page of the document
kmb050n60pa


>> Download kmb050n60pa documenatation <<

Text preview - extract from the document
                                    SEMICONDUCTOR                                                           KMB050N60PA
                                                                                                            N CHANNEL MOS FIELD
                                         TECHNICAL DATA                                                      EFFECT TRANSISTOR

 General Description

  It s mainly suitable for low viltage applications such as automotive,                                 A
                                                                                                                                   O
                                                                                                                                        C
 DC/DC converters and a load switch in battery powered applications
                                                                                                                        F

                                                                                        E                               G                   DIM MILLIMETERS
                                                                                                                                             A        _
                                                                                                                                                  9.9 + 0.2
                                                                                                                            B
                                                                                                                                            B     15.95 MAX
 FEATURES                                                                                                               Q                   C    1.3+0.1/-0.05
   VDSS= 60V, ID= 50A                                                                   I                                                   D           _
                                                                                                                                                    0.8 + 0.1
                                                                                                                                            E            _
                                                                                                                                                     3.6 + 0.2
   Drain-Source ON Resistance :                                                         K                                                                _
                                                                                                                                    P        F      2.8 + 0.1
   RDS(ON)=18m (Max.) @VGS = 10V                                                                    M                                       G           3.7
                                                                                                                    L
                                                                                                                                            H    0.5+0.1/-0.05
                                                                                                                             J               I          1.5
                                                                                            D                                                J           _
                                                                                                                                                  13.08 + 0.3
                                                                                                                                        H             1.46
 MOSFET MAXIMUM RATING (Ta=25                            Unless otherwise noted)                    N       N                               K
                                                                                                                                                      _
                                                                                                                                             L    1.4 + 0.1
             CHARACTERISTIC                 SYMBOL               RATING       UNIT                                                          M          _
                                                                                                                                                  1.27 + 0.1
                                                                                                                                            N          _
                                                                                                                                                  2.54 + 0.2
  Drain-Source Voltage                           VDSS              60              V                                                        O         _
                                                                                                                                                  4.5 + 0.2
                                                                                                1       2       3                            P         _
                                                                                                                                                  2.4 + 0.2
                                                                                                                            1. GATE
  Gate-Source Voltage                            VGSS                25            V                                        2. DRAIN        Q         _
                                                                                                                                                  9.2 + 0.2
                                                                                                                            3. SOURCE
                      DC                         I D*              50              A
  Drain Current
                      Pulsed (Note 1)            IDP               200             A
                                                                                                                            TO-220AB
  Drain-Source Diode Forward Current              IS               50              A
  Drain Power Dissipation                   PD* 25                 120             W
  Maximum Junction Temperature                    Tj             -55 175
  Storage Temperature Range                      Tstg            -55 175
  Note1) Pulse Test : Pulse width   10 S Duty cycle        1%

 Thermal Characteristics
             CHARACTERISTIC                 SYMBOL               RATING       UNIT
  Thermal Resistance, Junction-to-Ambient        RthJA             62.5            /W
  Thermal Resistance, Junction-to-Case           RthJC             1.24            /W

 Equivalent Circuit
                  D




      G



                  S




2007. 8. 9                     Revision No : 1                                                                                                                   1/6
                                                           KMB050N60PA

 MOSFET Electrical Characteristics (Ta=25                  Unless otherwise noted)

                  CHARACTERISTIC                      SYMBOL                  TEST CONDITION            MIN.   TYP.   MAX.   UNIT

  Static
  Drain-Source Breakdown Voltage                          BVDSS      ID=250 A, VGS=0V                    60     -       -     V
  Drain Cut-off Current                                    IDSS      VDS=60V, VGS=0V,                    -      -      1      A
  Gate Leakage Current                                     IGSS      VGS= 25V, VDS=0V                    -      -      100   nA
  Gate Threshold Voltage                                    Vth      VDS=VGS, ID=250 A                  2.0     -      4.0    V
  Drain-Source ON Resistance                             RDS(ON)     VGS=10V, ID=25A                     -      16     18
  Forward Transconductance                                  gFS      VDS=25V, ID=25A                     -      22      -
  Dynamic
  Input Capacitance                                        Ciss                                          -     1050   1365
  Output Capacitance                                       Coss      VDS=25V, VGS=0V, f=1.0MHz           -      70     90     pF
  Reverse Transfer Capacitance                             Crss                                          -     460    600
  Total Gate Charge                                         Qg       VDS= 48V,                           -      49     59
  Gate-Source Charge                                        Qgs      VGS= 10V,                           -      10      -
                                                                                                                              nC
  Gate-Drain Charge                                        Qgd       ID=25A                 (Note1,2)    -      13      -
  Turn-On Delay Time                                       td(on)                                        -      20     50
                                                                     VDD= 30V
  Turn-On Rise Time                                          tr                                          -     100    210
                                                                     ID=25A
  Turn-Off Delay Time                                      td(off)                                       -      80    170     ns
                                                                     RG= 25                (Note1,2)
  Turn-Off Fall Time                                         tf                                          -      85    185
 Note 1) Pulse Test : Pulse width     10 s, Duty Cycle     1%.
 Note 2) Essentially Independent of Operating Temperature.


 DIODE Electrical Characteristics (Ta=25                 Unless otherwise noted)
                  CHARACTERISTIC                      SYMBOL                  TEST CONDITION            MIN.   TYP.   MAX.   UNIT
  Diode Forward Voltage                                    VSD       ISD=50A, VGS=0V                     -      -      1.5    V
  Reverse Recovery Time                                     Trr      VGS=0V, IS=50A, dIF/dt=100A/ s      -      50      -


 Marking




    1            KMB

             050N60P
             A     701     2




                            1 PRODUCT NAME

                            2 LOT NO




2007. 8. 9                          Revision No : 1                                                                                 2/6
                                                                                                                   KMB050N60PA


                                                                         Fig 1. ID - VDS                                                                                                    Fig 2. ID - VGS

                                            50                                                                                                                 100
                                                                                  10                     6         5
                                                                                                                       4.5                                                                                      25
                                                                         15                                                                                                          Tc=-55 C
                                            40                                                                                                                  80                                              100
       Drain Current ID (A)




                                                                                                                                 Drain Current ID (A)
                                            30                                                                         4                                        60


                                            20                                                                                                                  40
                                                                                                                       3.5
                                            10                                                                                                                  20
                                                                                                                   VGS=3V
                                             0                                                                                                                   0
                                                  0            0.2             0.4           0.6             0.8           1.0                                       0           2              4           6               8       10


                                                                  Drain - Source Voltage VDS (V)                                                                              Drain - Source Voltage VGS (V)




                                                                         Fig 3. BVDSS - Tj                                                                                                Fig 4. RDS(ON) - ID
       Normalized Breakdown Voltage BVDSS




                                            1.2                                                                                                                0.05
                                                         VGS = 0V
                                                                                                                                  On - Resistance RDS(ON) ()




                                                         IDS = 250
                                                                                                                                                               0.04
                                            1.1
                                                                                                                                                                                                VGS = 10V
                                                                                                                                                               0.03
                                            1.0                                                                                                                                                                         VGS = 20V
                                                                                                                                                               0.02

                                            0.9
                                                                                                                                                               0.01


                                            0.8                                                                                                                0.00
                                              -100           -50           0           50          100        150       200                                        0                 50             100               150           200

                                                                  Junction Temperature Tj ( C )                                                                                           Drain Current ID (A)




                                                                              Fig 5. IS - VSD                                                                                              Fig 6. RDS(ON) - Tj

                                                                                                                                                               2.5
                                                      VGS = 0V                                                                                                           VGS = 10V
          Reverse Drain Current IS (A)




                                              2
                                            10        250
