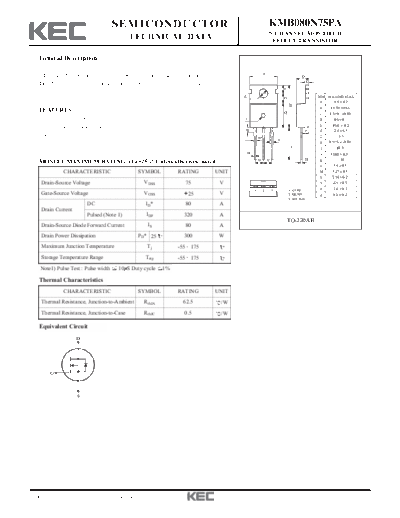

Image preview - the first page of the document
kmb080n75pa


>> Download kmb080n75pa documenatation <<

Text preview - extract from the document
                                     SEMICONDUCTOR                                                           KMB080N75PA
                                                                                                             N CHANNEL MOS FIELD
                                          TECHNICAL DATA                                                      EFFECT TRANSISTOR

  General Description

   It s mainly suitable for low voltage applications such as automotive,                                 A
                                                                                                                                    O
                                                                                                                                         C
  DC/DC converters and a load switch in battery powered applications
                                                                                                                         F

                                                                                         E                               G                   DIM MILLIMETERS
                                                                                                                                              A        _
                                                                                                                                                   9.9 + 0.2
                                                                                                                             B
                                                                                                                                             B     15.95 MAX
  FEATURES                                                                                                               Q                   C    1.3+0.1/-0.05
    VDSS= 75V, ID= 80A                                                                   I                                                   D           _
                                                                                                                                                     0.8 + 0.1
                                                                                                                                             E            _
                                                                                                                                                      3.6 + 0.2
    Drain-Source ON Resistance :                                                         K                                                                _
                                                                                                                                     P        F      2.8 + 0.1
    RDS(ON)=12m (Max.) @VGS = 10V                                                                    M                                       G           3.7
                                                                                                                     L
                                                                                                                                             H    0.5+0.1/-0.05
                                                                                                                              J               I          1.5
                                                                                             D                                                J           _
                                                                                                                                                   13.08 + 0.3
                                                                                                                                         H             1.46
  MOSFET MAXIMUM RATING (Ta=25                            Unless otherwise noted)                    N       N                               K
                                                                                                                                                       _
                                                                                                                                              L    1.4 + 0.1
               CHARACTERISTIC                SYMBOL               RATING       UNIT                                                          M          _
                                                                                                                                                   1.27 + 0.1
                                                                                                                                             N          _
                                                                                                                                                   2.54 + 0.2
   Drain-Source Voltage                           VDSS              75              V                                                        O         _
                                                                                                                                                   4.5 + 0.2
                                                                                                 1       2       3                            P         _
                                                                                                                                                   2.4 + 0.2
                                                                                                                             1. GATE
   Gate-Source Voltage                            VGSS                25            V                                        2. DRAIN        Q         _
                                                                                                                                                   9.2 + 0.2
                                                                                                                             3. SOURCE
                       DC                         I D*              80              A
   Drain Current
                       Pulsed (Note 1)            IDP               320             A
                                                                                                                             TO-220AB
   Drain-Source Diode Forward Current              IS               80              A
   Drain Power Dissipation                   PD* 25                 300             W
   Maximum Junction Temperature                    Tj             -55 175
   Storage Temperature Range                      Tstg            -55 175
   Note1) Pulse Test : Pulse width   10 S Duty cycle        1%

  Thermal Characteristics
               CHARACTERISTIC                SYMBOL               RATING       UNIT
   Thermal Resistance, Junction-to-Ambient        RthJA             62.5            /W
   Thermal Resistance, Junction-to-Case           RthJC             0.5             /W

  Equivalent Circuit
                   D




       G



                   S




2007. 10. 31                    Revision No : 2                                                                                                                   1/6
                                                               KMB080N75PA

  MOSFET Electrical Characteristics (Ta=25                     Unless otherwise noted)

                    CHARACTERISTIC                       SYMBOL                   TEST CONDITION            MIN.   TYP.   MAX.   UNIT

    Static
    Drain-Source Breakdown Voltage                            BVDSS      ID=250 A, VGS=0V                    75     -       -     V
    Drain Cut-off Current                                      IDSS      VDS=75V, VGS=0V,                    -      -      10     A
    Gate Leakage Current                                       IGSS      VGS= 20V, VDS=0V                    -      -      100   nA
    Gate Threshold Voltage                                      Vth      VDS=VGS, ID=250 A                   2      -      4      V
    Drain-Source ON Resistance                               RDS(ON)     VGS=10V, ID=40A                     -      10     12
    Forward Transconductance                                    gFS      VDS=15V, ID=40A                     -      20      -
    Dynamic
    Input Capacitance                                          Ciss                                          -     3700     -
    Output Capacitance                                         Coss      VDS=25V, VGS=0V, f=1.0MHz           -     730      -     pF
    Reverse Transfer Capacitance                               Crss                                          -     240      -
    Total Gate Charge                                           Qg       VDS= 60V,                           -     117      -
    Gate-Source Charge                                          Qgs      VGS= 10V,                           -      27      -
                                                                                                                                  nC
    Gate-Drain Charge                                          Qgd       ID=40A                 (Note1,2)    -      47      -
    Turn-On Delay Time                                         td(on)                                        -      25      -
                                                                         VDD= 30.5V
    Turn-On Rise Time                                            tr                                          -      25      -
                                                                         ID=40A
    Turn-Off Delay Time                                        td(off)                                       -      66      -     ns
                                                                         RG=25                 (Note1,2)
    Turn-Off Fall Time                                           tf                                          -      30      -
   Note 1) Pulse Test : Pulse width       10 s, Duty Cycle     1%.
   Note 2) Essentially Independent of Operating Temperature.


  DIODE Electrical Characteristics (Ta=25                    Unless otherwise noted)
                    CHARACTERISTIC                       SYMBOL                   TEST CONDITION            MIN.   TYP.   MAX.   UNIT
    Diode Forward Voltage                                      VSD       ISD=80A, VGS=0V                     -      -      1.5    V
    Reverse Recovery Time                                       Trr      VGS=0V, IS=80A, dIF/dt=100A/ s      -     132      -


  Marking




       1           KMB

               080N75P
               A     701     2




                             1   PRODUCT NAME

                             2   LOT NO




2007. 10. 31                          Revision No : 2                                                                                   2/6
                                                                                           KMB080N75PA


                                                                Fig 1. ID - VDS                                                                                        Fig 2. RDS(ON) - ID

                                     300                                                                                                   10
                                                     10V                           Common Source                                                                                                       Common Source




                                                                                                         On - Resistance RDS(ON) (m)
                                                                                   TC=25 C                                                                                                             TC=25 C
                                                           9V                      Pulse Test                                                                                                          Pulse Test
                                     240                                                                                                   9.6
        Drain Current ID (A)




                                                                                              7V

                                     180                                                                                                   9.2
                                                                                                                                                                          VGS = 10V


                                     120                                                      6V                                           8.8


                                     60                                                                                                    8.4
                                                                                           VGS=5V

                                      0                                                                                                    8.0
                                           0         4            8        12         16           20                                            0            20             40             60           80           100


                                                         Drain - Source Voltage VDS (V)                                                                               Drain Current ID (A)



                                                                Fig 3. ID - VGS                                                                                        Fig 4. RDS(ON) - Tj

                                     300                                                                                                   2.2
                                                                                                                                                      VGS = 10V
                                                                                                                                                      IDS = 40A
                                                                                                        Normalized On Resistance
        Drain Current ID (A)




                                     240                                                                                                   1.8


                                     180                                                                                                   1.4

                                                                                TC=25 C
                                     120                                                                                                   1.0


                                     60                                                                                                    0.6


                                      0                                                                                                    0.2
                                           0         2            4        6           8           10                                                  -50            0               50          100           150


                                                     Gate - Source Voltage VGS (V)                                                                                 Junction Temperature Tj ( C)




                                                                Fig 5. Vth - Tj                                                                                       Fig 6. IDR - VDSF

                                     1.1
                                                                                      VDS = VGS                                                      VGS = 0
                                                                                                            Reverse Drain Current IS (A)




                                                                                      ID = 250
