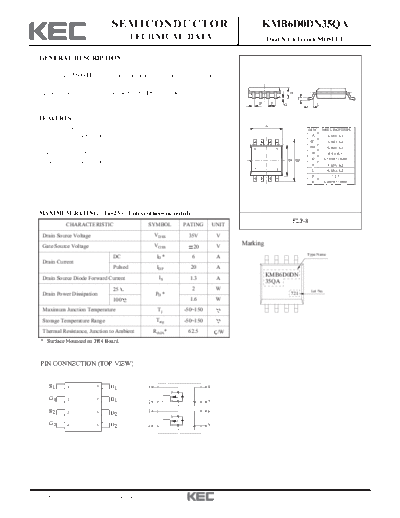

Image preview - the first page of the document
kmb6d0dn35qa


>> Download kmb6d0dn35qa documenatation <<

Text preview - extract from the document
                                  SEMICONDUCTOR                                                   KMB6D0DN35QA
                                            TECHNICAL DATA                                        Dual N-Ch Trench MOSFET


  GENERAL DESCRIPTION

  This Trench MOSFET has better characteristics, such as fast switching
  time, low on resistance, low gate charge and excellent avalanche
  characteristics. It is mainly suitable for DC/DC Converters.                                                    H
                                                                                                                      T
                                                                                              D       P       G                  L


  FEATURES
    VDSS=35V, ID=6A.                                                                              A
                                                                                                                           DIM       MILLIMETERS
    Drain-Source ON Resistance.                                                                                             A               _
                                                                                                                                       4.85 + 0.2
                                                                                                                            B1              _
                                                                                                                                       3.94 + 0.2
     RDS(ON)=28m    (Max.) @VGS=10V                                                                                         B2              _
                                                                                          8               5                            6.02 + 0.3
     RDS(ON)=42m    (Max.) @VGS=4.5V                                                                                        D               _
                                                                                                                                        0.4 + 0.1
                                                                                                                  B1 B2     G        0.15+0.1/-0.05
    Super High Dense Cell Design                                                                                            H               _
                                                                                                                                       1.63 + 0.2
    Very fast switching                                                                   1               4                 L               _
                                                                                                                                       0.65 + 0.2
                                                                                                                            P             1.27
                                                                                                                            T        0.20+0.1/-0.05




  MAXIMUM RATING (Ta=25                     Unless otherwise noted)
                                                                                                                   FLP-8
              CHARACTERISTIC                       SYMBOL       PATING          UNIT
   Drain Source Voltage                                VDSS       35V            V
   Gate Source Voltage                                 VGSS            20        V     Marking
                                                                                                                          Type Name
                                   DC                   ID *          6          A
   Drain Current
                                   Pulsed               IDP           20         A
                                                         IS                                       KMB6D0DN
   Drain Source Diode Forward Current                             1.3            A
                                                                                                  35QA
                                   25                                 2          W                                         Lot No.
   Drain Power Dissipation                             PD *                                                        721
                                   100                            1.6            W
   Maximum Junction Temperature                          Tj     -50~150
   Storage Temperature Range                            Tstg    -50~150
   Thermal Resistance, Junction to Ambient             RthJA*     62.5           /W
  * : Surface Mounted on FR4 Board



   PIN CONNECTION (TOP VIEW)


      S1      1           8       D1               1                        8

      G1      2           7       D1               2                        7

      S2      3           6       D2               3                        6

      G2      4           5       D2               4                        5




2007. 8. 13                    Revision No : 1                                                                                                        1/5
                                                           KMB6D0DN35QA

  ELECTRICAL CHARACTERISTICS (Ta=25                         ) UNLESS OTHERWISE NOTED
              CHARACTERISTIC                  SYMBOL                 TEST CONDITION    MIN.   TYP.   MAX.   UNIT
   Static

   Drain-Source Breakdown Voltage               BVDSS       ID=250 A, VGS=0V            35     -       -     V

   Drain Cut-off Current                          IDSS      VDS=24V, VGS=0V             -      -      1         A
   Gate Leakage Current                           IGSS      VGS=   25V, VDS=0V          -      -      100   nA

   Gate Threshold Voltage                        Vth*       VDS=VGS, ID=250 A          1.0    2.0     3.0    V

                                                            VGS=10.0V, ID=6A            -      24     28
   Drain-Source ON Resistance                  RDS(ON)*                                                     m
                                                            VGS=4.5V, ID=4.9A           -      35     42

   On-State Drain Current                       ID(ON)*     VDS=5V, VGS=10V             20     -       -     A

   Forward Transconductance                       gfs*      VDS=10V, ID=6A              -      20      -     S

   Dynamic

   Input Capacitance                              Ciss                                  -     740      -

   Ouput Capacitance                              Coss      VDS=15V, f=1MHz, VGS=0V     -     170      -     pF

   Reverse Transfer Capacitance                   Crss                                  -      75      -

   Total Gate Charge                              Qg*                                   -     7.0    10.0

   Gate-Source Charge                            Qgs*       VDS=10V, VGS=5V, ID=6A      -     3.8      -     nC

   Gate-Drain Charge                             Qgd*                                   -     2.5      -

   Turn-On Delay Time                            td(on)*                                -      8      16

   Turn-On Rise Time                              tr*       VDD=15V, VGS=10V            -      13     24
                                                                                                             ns
   Turn-Off Delay Time                          td(off)*    ID=1A, RG=6   (Note 1)      -      18     29

   Turn-Off Fall Time                             tf*                                   -      8      6

   Source-Drain Diode Ratings

   Source-Drain Forward Voltage                  VSDF       IDR=1.7A, VGS=0V            -     0.75    1.2    V

   Note>*Pulse Test : Pulse width      300   , Duty cycle   2%




2007. 8. 13                         Revision No : 1                                                                 2/5
                                                                                                 KMB6D0DN35QA


                                                                  Fig1. ID - VDS                                                                                                            Fig2. RDS(on) - ID




                                                                                                                        Drain Source On Resistance RDS(ON) ()
                                         20                                                                                                                     0.16
                                                                       VGS=4.5                                                                                               Common Source
                                                       VGS=10
                                                                                            Common Source                                                       0.14 Tc= 25 C
                                                                                                                                                                             Pulse Test
                                         16                                                 Tc= 25 C
       Drain Current ID (A)




                                                        VGS=5                               Pulse Test                                                          0.12

                                         12                                                                                                                      0.1
                                                                                                     VGS=4.0
                                                                                                                                                                0.08
                                                                                                                                                                                                                       VGS=4.5
                                          8                                                                                                                     0.06

                                                                                                                                                                0.04
                                          4                                                      VGS=3.5
                                                                                                                                                                0.02                                                             VGS=10.0
                                                                                                 VGS=3.0
                                          0                                                                                                                          0
                                              0           2            4           6             8             10                                                        0                  5               10              15          20


                                                         Drain - Source Voltage VDS (V)                                                                                                         Drain Current ID (A)



                                                                  Fig3. ID - VGS                                                                                                            Fig4. RDS(on) - Tj

                                         20                                                                                                                      50
                                                  Common Source                                                                                                              Common Source
                                                  VDS=5V                                                                                                                     VDS=10V
                                                                                                                     Drain Source On Resistance




                                                  Pulse Test                                                                                                                 Pulse Test
                                                                                                                                                                 40
       Drain Current ID (A)




                                         15
                                                                                                                            RDS(ON) (m)




                                                                                                                                                                 30
                                         10
                                                                                                                                                                 20
                                                                           125 C                     25 C
                                         5
                                                                                                     -55 C                                                       10


                                         0                                                                                                                       0
                                              1               2             3                4                 5                                                     -80            -40           0         40         80        120    160


                                                         Gate - Source Voltage VGS (V)                                                                                                    Junction Temperature Tj ( C )




                                                                  Fig5. Vth - Tj                                                                                                                Fig6. IDR - VSDF

                                          5 Common Source                                                                                                       10
                                                                                                                                                                                                                            Common Source
        Gate Threshold Voltage Vth (V)




                                                                                                                          Reverse Drain Current IDR (A)




                                            VGS=VDS                                                                                                                                                                         Tc= 25 C
                                            ID=250
