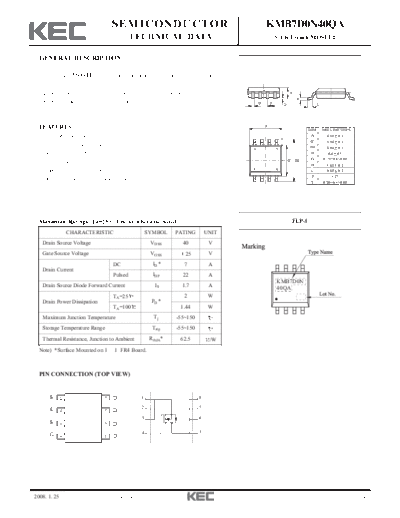

Image preview - the first page of the document
kmb7d0n40qa


>> Download kmb7d0n40qa documenatation <<

Text preview - extract from the document
                                    SEMICONDUCTOR                                           KMB7D0N40QA
                                              TECHNICAL DATA                                        N-Ch Trench MOSFET


  GENERAL DESCRIPTION

  This Trench MOSFET has better characteristics, such as fast switching
  time, low on resistance, low gate charge and excellent avalanche
  characteristics. It is mainly suitable for power management in pc, portable                               H
                                                                                                                T
  equipment and battery powered systems.                                                D       P       G                  L




  FEATURES                                                                                  A
                                                                                                                     DIM       MILLIMETERS
    VDSS=40V, ID=7A.                                                                                                  A               _
                                                                                                                                 4.85 + 0.2
                                                                                                                      B1              _
                                                                                                                                 3.94 + 0.2
    Drain-Source ON Resistance.                                                                                       B2              _
                                                                                    8               5                            6.02 + 0.3
     RDS(ON)=25m      (Max.) @VGS=10V                                                                                 D               _
                                                                                                                                  0.4 + 0.1
                                                                                                            B1 B2     G        0.15+0.1/-0.05
     RDS(ON)=45m      (Max.) @VGS=4.5V                                                                                H               _
                                                                                                                                 1.63 + 0.2
    Super High Dense Cell Design                                                    1               4                 L               _
                                                                                                                                 0.65 + 0.2
                                                                                                                      P             1.27
    High Power and Current Handing Capability
                                                                                                                      T        0.20+0.1/-0.05




  Maximum Ratings (Ta=25              Unless otherwise noted)                                                FLP-8
                  CHARACTERISTIC                     SYMBOL    PATING        UNIT
   Drain Source Voltage                               VDSS       40           V
   Gate Source Voltage                                VGSS        25          V
                                     DC                ID *      7            A
   Drain Current
                                     Pulsed            IDP       22           A
                                                                                                    KMB7D0N
   Drain Source Diode Forward Current                   IS       1.7          A                     40QA
                                     TA=25                       2            W
   Drain Power Dissipation                            PD *
                                     TA=100                     1.44          W
   Maximum Junction Temperature                         Tj     -55~150
   Storage Temperature Range                           Tstg    -55~150
   Thermal Resistance, Junction to Ambient            RthJA*    62.5          /W
  Note) *Surface Mounted on 1        1 FR4 Board.



  PIN CONNECTION (TOP VIEW)


      S       1                8     D           1                       8

                                                 2                       7
      S       2                7     D
                                                 3                       6
      S       3                6     D
                                                 4                       5
      G       4                5     D




2008. 1. 25                        Revision No : 0                                                                                              1/4
                                                         KMB7D0N40QA

 ELECTRICAL CHARACTERISTICS (Ta=25                        ) UNLESS OTHERWISE NOTED
              CHARACTERISTIC                SYMBOL                 TEST CONDITION    MIN.   TYP.   MAX.   UNIT
   Static
   Drain-Source Breakdown Voltage             BVDSS       ID=250 A, VGS=0V            40     -       -     V
   Drain Cut-off Current                        IDSS      VDS=32V, VGS=0V             -      -      1         A
   Gate Leakage Current                         IGSS      VGS=   25V, VDS=0V          -      -      100       A
   Gate Threshold Voltage                       Vth       VDS=VGS, ID=250 A           1     1.8     2.5    V
                                                          VGS=10.0V, ID=6A            -      20     25
   Drain-Source ON Resistance                RDS(ON)*                                                     m
                                                          VGS=4.5V, ID=5A             -      35     45
   On-State Drain Current                     ID(ON)*     VDS=5V, VGS=10V             15     -       -     A
   Forward Transconductance                     gfs*      VDS=5V, ID=6A               -      8       -     S
   Dynamic
   Input Capaclitance                           Ciss                                  -     947    1231
   Ouput Capacitance                            Coss      VDS=25V, f=1MHz, VGS=OV     -     117    152     pF
   Reverse Transfer Capacitance                 Crss                                  -      77    100
                                                          VDS=20V, VGS=10V, ID=6A     -     18.2    24
   Total Gate Charge                            Qg*
                                                          VDS=20V, VGS=4.5V, ID=6A    -     8.7     12
                                                                                                           nC
   Gate-Source Charge                          Qgs*                                   -     2.8     4
                                                          VDS=20V, VGS=4.5V, ID=6A
   Gate-Drain Charge                           Qgd*                                   -     3.3     5
   Turn-On Delat Time                          td(on)*                                -     16.7    19
   Turn-On Rise Time                            tr*       VDD=20V, VGS=10V            -     3.6     5
                                                                                                           ns
   Turn-On Deley Time                         td(off)*    ID=1A, RG=3.3               -     28.7    38
   Turn-On Fall Time                            tf*                                   -     10.1    14
   Source-Drain Diode Ratings
   Source-Drain Forward Voltage               VSDF*       IDR=1.7A, VGS=0V            -     0.78    1.2    V

   Note) *Pulse Test : Pulse width   10    , Duty cycle   1%




2008. 1. 25                       Revision No : 0                                                                 2/4
                                                                                                 KMB7D0N40QA


                                                                 Fig1. ID - VDS                                                                                                      Fig2. RDS(on) - ID




                                                                                                                   Drain Source On Resistance RDS(ON) ()
                                         20                                                                                                                 0.2
                                                   VGS=10,5,4.5V                         Common Source                                                                Common Source
                                                                                         TA=25 C                                                                      TA=25 C
                                                                                         Pulse Test                                                                   Pulse Test
                                         16                              4.0V                                                                              0.16
        Drain Current ID (A)




                                         12                                                                                                                0.12


                                          8                                                                                                                0.08
                                                                                                    3.5V                                                                                                                  4.5V

                                          4                                                                                                                0.04
                                                                                                                                                                                                                  VGS=10.0V
                                                                                                 VGS=3.0V
                                          0                                                                                                                  0
                                              0          2           4          6            8          10                                                        0           4             8         12            16           20

                                                     Drain - Source Voltage VDS (V)                                                                                               Drain - Current ID (A)




                                                                 Fig3. ID - VGS                                                                                                      Fig4. RDS(on) - Tj

                                         24                                                                                                                200
                                              Common Source                                                                                                           Common Source
                                              VDS=10V                                                                                                                 VDS=10V
                                                                                                              Normalized Drain Source On




                                              Pulse Test                                                                                                              Pulse Test
                                                                                                               Resistance RDS(ON) (m)




                                         20
                                                                                                                                                           160
        Drain Current ID (A)




                                         16
                                                                                                                                                           120
                                         12                                     25 C

                                                                                                                                                            80
                                          8
                                                                                             Tc=-55 C
                                                                                                                                                                                                                 ID=6A
                                                                      125 C                                                                                 40
                                          4

                                          0                                                                                                                   0
                                              1              2            3              4              5                                                         -80       -40        0         40         80        120        160

                                                      Gate-Source Volatage VGS (V)
                                                                                                                                                                                  Junction Temperature Tj ( C )




                                                                 Fig5. Vth - Tj                                                                                                       Fig6. IDR - VSDF

                                          5 Common Source                                                                                                   10
        Gate Threshold Voltage Vth (V)




                                                                                                                                                                                                                 Common Source
                                                                                                                   Reverse Drain Current IDR (A)




                                            VGS=VDS                                                                                                                                                              TA= 25 C
                                            ID=250
