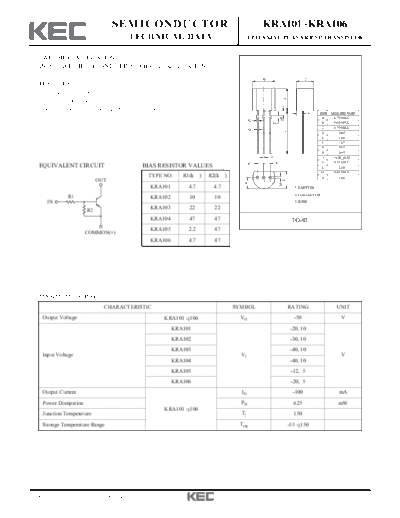

Image preview - the first page of the document
>> Download kra101-106 documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KRA101~KRA106
TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR
SWITCHING APPLICATION.
INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION.
B C
FEATURES
With Built-in Bias Resistors.
A
Simplify Circuit Design.
Reduce a Quantity of Parts and Manufacturing Process.
N DIM MILLIMETERS
E A 4.70 MAX
K
G B 4.80 MAX
D C 3.70 MAX
D 0.45
J
E 1.00
F 1.27
G 0.85
H 0.45
H J _
14.00 + 0.50
F F K 0.55 MAX
EQUIVALENT CIRCUIT BIAS RESISTOR VALUES L 2.30
M 0.45 MAX
TYPE NO. R1(k ) R2(k ) N 1.00
OUT 1 2 3
C
L
M
KRA101 4.7 4.7 1. EMITTER
2. COLLECTOR
R1 KRA102 10 10
IN 3. BASE
R2 KRA103 22 22
KRA104 47 47 TO-92
KRA105 2.2 47
COMMON(+)
KRA106 4.7 47
MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Output Voltage KRA101 106 VO -50 V
KRA101 -20, 10
KRA102 -30, 10
KRA103 -40, 10
Input Voltage VI V
KRA104 -40, 10
KRA105 -12, 5
KRA106 -20, 5
Output Current IO -100 mA
Power Dissipation PD 625 mW
KRA101 106
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
2011. 6. 14 Revision No : 1 1/6
KRA101~KRA106
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Output Cut-off Current KRA101 106 IO(OFF) VO=-50V, VI=0 - - -500 nA
KRA101 30 55 -
KRA102 50 80 -
KRA103 70 120 -
DC Current Gain GI VO=-5V, IO=-10mA
KRA104 80 200 -
KRA105 80 200 -
KRA106 80 200 -
Output Voltage KRA101 106 VO(ON) IO=-10mA, II=-0.5mA - -0.1 -0.3 V
KRA101 - -1.5 -2.0
KRA102 - -1.8 -2.4
KRA103 - -2.1 -3.0
Input Voltage (ON) VI(ON) VO=-0.2V, IO=-5mA V
KRA104 - -2.8 -5.0
KRA105 - -0.8 -1.1
KRA106 - -0.9 -1.3
KRA101 104 -1.0 -1.2 -
Input Votlage (OFF) VI(OFF) VO=-5V, IO=-0.1mA V
KRA105 106 -0.5 -0.65 -
Transition Frequency KRA101 106 fT * VO=-10V, IO=-5mA - 200 - MHz
KRA101 - - -1.8
KRA102 - - -0.88
KRA103 - - -0.36
Input Current II VI=-5V mA
KRA104 - - -0.18
KRA105 - - -3.6
KRA106 - - -1.8
KRA101 3.29 4.7 6.11
KRA102 7 10 13
KRA103 15.4 22 28.6
Input Resistor R1 - k
KRA104 32.9 47 61.1
KRA105 1.54 2.2 2.86
KRA106 3.29 4.7 6.11
Note : *Characteristic of Transistor Only
2011. 6. 14 Revision No : 1 2/6
KRA101~KRA106
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
KRA101 - 0.07 -
KRA102 - 0.06 -
Rise KRA103 - 0.2 -
tr
Time KRA104 - 0.24 -
KRA105 - 0.02 -
KRA106 - 0.07 -
KRA101 - 1.1 -
KRA102 - 1.1 -
VO=-5V
Switching Storage KRA103 - 1.1 -
tstg VIN=-5V S
Time Time KRA104 - 1.1 -
RL=1k
KRA105 - 1.1 -
KRA106 - 1.1 -
KRA101 - 0.15 -
KRA102 - 0.24 -
Fall KRA103 - 0.38 -
tf
Time KRA104 - 0.63 -
KRA105 - 0.1 -
KRA106 - 0.2 -
2011. 6. 14 Revision No : 1 3/6
KRA101~KRA106
I O - V I(ON) I O - V I(ON)
KRA101 KRA102
-100 -25
-100
VO =-0.2V VO =-0.2V
25 -25
-50 -50
OUTPUT CURRENT I O (mA)
OUTPUT CURRENT IO (mA)
100 25
-30 -30 100
-10 -10
-5 -5
-3
Ta=100 C
Ta=100 C
-3
Ta=25 C Ta=25 C
Ta=-25 C Ta=-25 C
-1 -1
-0.5 -0.5
-0.3 -0.3
-0.1 -0.3 -1 -3 -10 -30 -100 -0.1 -0.3 -1 -3 -10 -30 -100
INPUT ON VOLTAGE V I(ON) (V) INPUT ON VOLTAGE V I(ON) (V)
I O - V I(ON) I O - V I(ON)
KRA103 KRA104
-100 -100
VO =-0.2V VO =-0.2V
OUTPUT CURRENT IO (mA)
-50 -50
OUTPUT CURRENT I O (mA)
-30 -30
-10 -10
-5 -5
Ta=100 C
Ta=25 C Ta=100 C
-3 -3
Ta=-25 C
Ta=25 C
Ta=-25 C
-1 -1
-0.5 -0.5
-0.3 -0.3
-0.1 -0.3 -1 -3 -10 -30 -100 -0.1 -0.3 -1 -3 -10 -30 -100
INPUT ON VOLTAGE V I(ON) (V) INPUT ON VOLTAGE V I(ON) (V)
I O - VI(ON) I O - V I(ON)
KRA105 KRA106
-100 -100
VO =-0.2V VO =-0.2V
OUTPUT CURRENT I O (mA)
-50 -50
OUTPUT CURRENT IO (mA)
-30 -30
-10 -10
-5 -5
Ta=100 C
Ta=100 C
-3 Ta=25 C -3 Ta=25 C
Ta=-25 C Ta=-25 C
-1 -1
-0.5 -0.5
-0.3 -0.3
-0.1 -0.3 -1 -3 -10 -30 -100 -0.1 -0.3 -1 -3 -10 -30 -100
INPUT ON VOLTAGE V I(ON) (V) INPUT ON VOLTAGE V I(ON) (V)
2011. 6. 14 Revision No : 1 4/6
KRA101~KRA106
I O - V I(OFF) I O - V I(OFF)
KRA101 KRA102
-10k -10k
VO =-5V VO =-5V
-5k -5k
