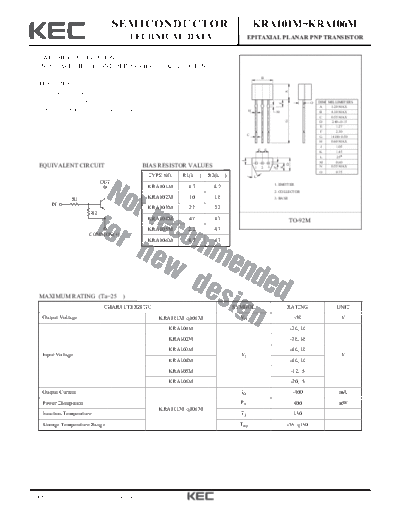

Image preview - the first page of the document
>> Download kra101_6m documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KRA101M~KRA106M
TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR
SWITCHING APPLICATION.
INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION.
B
FEATURES
A
With Built-in Bias Resistors.
Simplify Circuit Design. O DIM MILLIMETERS
F
A 3.20 MAX
Reduce a Quantity of Parts and Manufacturing Process. H M B 4.30 MAX
C 0.55 MAX
G
D _
2.40 + 0.15
E 1.27
F 2.30
C _
G 14.00+ 0.50
H 0.60 MAX
J 1.05
E E
K 1.45
L 25
J
M 0.80
D
EQUIVALENT CIRCUIT BIAS RESISTOR VALUES
K
1 2 3 N N 0.55 MAX
O 0.75
TYPE NO. R1(k ) R2(k ) L
OUT 1. EMITTER
KRA101M 4.7 4.7
2. COLLECTOR
R1 KRA102M 10 10 3. BASE
IN
KRA103M 22 22
R2
KRA104M 47 47 TO-92M
KRA105M 2.2 47
COMMON(+)
KRA106M 4.7 47
MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Output Voltage KRA101M 106M VO -50 V
KRA101M -20, 10
KRA102M -30, 10
KRA103M -40, 10
Input Voltage VI V
KRA104M -40, 10
KRA105M -12, 5
KRA106M -20, 5
Output Current IO -100 mA
Power Dissipation PD 400 mW
KRA101M 106M
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
2008. 11. 20 Revision No : 5 1/6
KRA101M~KRA106M
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Output Cut-off Current KRA101M 106M IO(OFF) VO=-50V, VI=0 - - -500 nA
KRA101M 30 55 -
KRA102M 50 80 -
KRA103M 70 120 -
DC Current Gain GI VO=-5V, IO=-10mA
KRA104M 80 200 -
KRA105M 80 200 -
KRA106M 80 200 -
Output Voltage KRA101M 106M VO(ON) IO=-10mA, II=-0.5mA - -0.1 -0.3 V
KRA101M - -1.5 -2.0
KRA102M - -1.8 -2.4
KRA103M - -2.1 -3.0
Input Voltage (ON) VI(ON) VO=-0.2V, IO=-5mA V
KRA104M - -2.8 -5.0
KRA105M - -0.8 -1.1
KRA106M - -0.9 -1.3
KRA101M 104M -1.0 -1.2 -
Input Votlage (OFF) VI(OFF) VO=-5V, IO=-0.1mA V
KRA105M 106M -0.5 -0.65 -
Transition Frequency KRA101M 106M fT * VO=-10V, IO=-5mA - 200 - MHz
KRA101M - - -1.8
KRA102M - - -0.88
KRA103M - - -0.36
Input Current II VI=-5V mA
KRA104M - - -0.18
KRA105M - - -3.6
KRA106M - - -1.8
KRA101M 3.29 4.7 6.11
KRA102M 7 10 13
KRA103M 15.4 22 28.6
Input Resistor R1 - k
KRA104M 32.9 47 61.1
KRA105M 1.54 2.2 2.86
KRA106M 3.29 4.7 6.11
KRA101M~104M 0.8 1.0 1.2
Resistor Ratio KRA105M R2/R1 - 17 21 26
KRA106M 8 10 12
Note : *Characteristic of Transistor Only
2008. 11. 20 Revision No : 5 2/6
KRA101M~KRA106M
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
KRA101M - 0.07 -
KRA102M - 0.06 -
Rise KRA103M - 0.2 -
tr
Time KRA104M - 0.24 -
KRA105M - 0.02 -
KRA106M - 0.07 -
KRA101M - 1.1 -
KRA102M - 1.1 -
VO=-5V
Switching Storage KRA103M - 1.1 -
tstg VIN=-5V S
Time Time KRA104M - 1.1 -
RL=1k
KRA105M - 1.1 -
KRA106M - 1.1 -
KRA101M - 0.15 -
KRA102M - 0.24 -
Fall KRA103M - 0.38 -
tf
Time KRA104M - 0.63 -
KRA105M - 0.1 -
KRA106M - 0.2 -
2008. 11. 20 Revision No : 5 3/6
KRA101M~KRA106M
I O - V I(ON) I O - V I(ON)
KRA101M KRA102M
-100 -25
-100
VO =-0.2V VO =-0.2V
25 -25
OUTPUT CURRENT I O (mA)
OUTPUT CURRENT IO (mA)
-50 -50 25
100
-30 -30 100
-10 -10
-5 -5
Ta=100 C
Ta=100 C
-3 -3
Ta=25 C Ta=25 C
Ta=-25 C Ta=-25 C
-1 -1
-0.5 -0.5
-0.3 -0.3
-0.1 -0.3 -1 -3 -10 -30 -100 -0.1 -0.3 -1 -3 -10 -30 -100
INPUT ON VOLTAGE V I(ON) (V) INPUT ON VOLTAGE V I(ON) (V)
I O - V I(ON) I O - V I(ON)
KRA103M KRA104M
-100 -100
VO =-0.2V VO =-0.2V
OUTPUT CURRENT IO (mA)
OUTPUT CURRENT I O (mA)
-50 -50
-30 -30
-10 -10
-5 -5
Ta=100 C
Ta=25 C Ta=100 C
-3 -3
Ta=-25 C
Ta=25 C
Ta=-25 C
-1 -1
-0.5 -0.5
-0.3 -0.3
-0.1 -0.3 -1 -3 -10 -30 -100 -0.1 -0.3 -1 -3 -10 -30 -100
INPUT ON VOLTAGE V I(ON) (V) INPUT ON VOLTAGE V I(ON) (V)
I O - VI(ON) I O - V I(ON)
KRA105M KRA106M
-100 -100
VO =-0.2V VO =-0.2V
OUTPUT CURRENT I O (mA)
OUTPUT CURRENT IO (mA)
-50 -50
-30 -30
-10 -10
-5 -5
Ta=100 C
Ta=100 C
-3 Ta=25 C -3 Ta=25 C
Ta=-25 C Ta=-25 C
-1 -1
-0.5 -0.5
-0.3 -0.3
-0.1 -0.3 -1 -3 -10 -30 -100 -0.1 -0.3 -1 -3 -10 -30 -100
INPUT ON VOLTAGE V I(ON) (V) INPUT ON VOLTAGE V I(ON) (V)
2008. 11. 20 Revision No : 5 4/6
KRA101M~KRA106M
I O - V I(OFF) I O - V I(OFF)
KRA101M KRA102M
-10k -10k
VO =-5V VO =-5V
-5k
