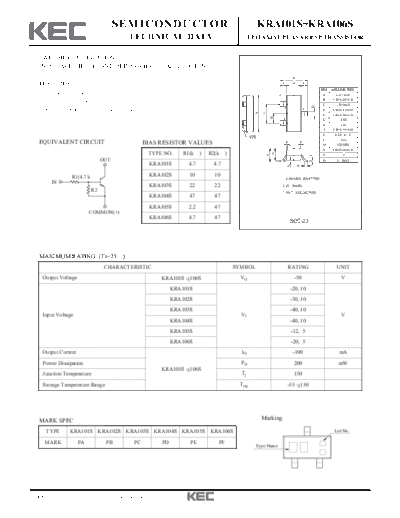

Image preview - the first page of the document
>> Download kra101_6s documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KRA101S~KRA106S
TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR
SWITCHING APPLICATION.
INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION.
E
FEATURES L B L
DIM MILLIMETERS
With Built-in Bias Resistors. A _
2.93 + 0.20
Simplify Circuit Design. B 1.30+0.20/-0.15
C 1.30 MAX
D
2
Reduce a Quantity of Parts and Manufacturing Process. 3 D 0.40+0.15/-0.05
A
G
E 2.40+0.30/-0.20
H
1 G 1.90
H 0.95
J 0.13+0.10/-0.05
K 0.00 ~ 0.10
Q
L 0.55
EQUIVALENT CIRCUIT BIAS RESISTOR VALUES P P
M 0.20 MIN
N 1.00+0.20/-0.10
TYPE NO. R1(k ) R2(k )
N
C
P 7
J
OUT Q 0.1 MAX
KRA101S 4.7 4.7
K
M
R1(4.7 k KRA102S 10 10
1. COMMON (EMITTER)
IN
KRA103S 22 22 2. IN (BASE)
R2 3. OUT (COLLECTOR)
KRA104S 47 47
KRA105S 2.2 47
COMMON(+)
KRA106S 4.7 47
SOT-23
MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Output Voltage KRA101S 106S VO -50 V
KRA101S -20, 10
KRA102S -30, 10
KRA103S -40, 10
Input Voltage VI V
KRA104S -40, 10
KRA105S -12, 5
KRA106S -20, 5
Output Current IO -100 mA
Power Dissipation PD 200 mW
KRA101S 106S
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
MARK SPEC Marking
TYPE KRA101S KRA102S KRA103S KRA104S KRA105S KRA106S Lot No.
MARK PA PB PC PD PE PF
Type Name
2008. 10. 29 Revision No : 4 1/6
KRA101S~KRA106S
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Output Cut-off Current KRA101S 106S IO(OFF) VO=-50V, VI=0 - - -500 nA
KRA101S 30 55 -
KRA102S 50 80 -
KRA103S 70 120 -
DC Current Gain GI VO=-5V, IO=-10mA
KRA104S 80 200 -
KRA105S 80 200 -
KRA106S 80 200 -
Output Voltage KRA101S 106S VO(ON) IO=-10mA, II=-0.5mA - -0.1 -0.3 V
KRA101S - -1.5 -2.0
KRA102S - -1.8 -2.4
KRA103S - -2.1 -3.0
Input Voltage (ON) VI(ON) VO=-0.2V, IO=-5mA V
KRA104S - -2.8 -5.0
KRA105S - -0.8 -1.1
KRA106S - -0.9 -1.3
KRA101S 104S -1.0 -1.2 -
Input Votlage (OFF) VI(OFF) VO=-5V, IO=-0.1mA V
KRA105S 106S -0.5 -0.65 -
Transition Frequency KRA101S 106S fT * VO=-10V, IO=-5mA - 200 - MHz
KRA101S - - -1.8
KRA102S - - -0.88
KRA103S - - -0.36
Input Current II VI=-5V mA
KRA104S - - -0.18
KRA105S - - -3.6
KRA106S - - -1.8
KRA101S 3.29 4.7 6.11
KRA102S 7 10 13
KRA103S 15.4 22 28.6
Input Resistor R1 - k
KRA104S 32.9 47 61.1
KRA105S 1.54 2.2 2.86
KRA106S 3.29 4.7 6.11
KRA101S~104S 0.8 1.0 1.2
Resistor Ratio KRA105S R2/R1 - 17 21 26
KRA106S 8 10 12
Note : *Characteristic of Transistor Only
2008. 10. 29 Revision No : 4 2/6
KRA101S~KRA106S
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
KRA101S - 0.07 -
KRA102S - 0.06 -
Rise KRA103S - 0.2 -
tr
Time KRA104S - 0.24 -
KRA105S - 0.02 -
KRA106S - 0.07 -
KRA101S - 1.1 -
KRA102S - 1.1 -
VO=-5V
Switching Storage KRA103S - 1.1 -
tstg VIN=-5V S
Time Time KRA104S - 1.1 -
RL=1k
KRA105S - 1.1 -
KRA106S - 1.1 -
KRA101S - 0.15 -
KRA102S - 0.24 -
Fall KRA103S - 0.38 -
tf
Time KRA104S - 0.63 -
KRA105S - 0.1 -
KRA106S - 0.2 -
2008. 10. 29 Revision No : 4 3/6
KRA101S~KRA106S
2008. 10. 29 Revision No : 4 4/6
KRA101S~KRA106S
2008. 10. 29 Revision No : 4 5/6
KRA101S~KRA106S
2008. 10. 29 Revision No : 4 6/6
