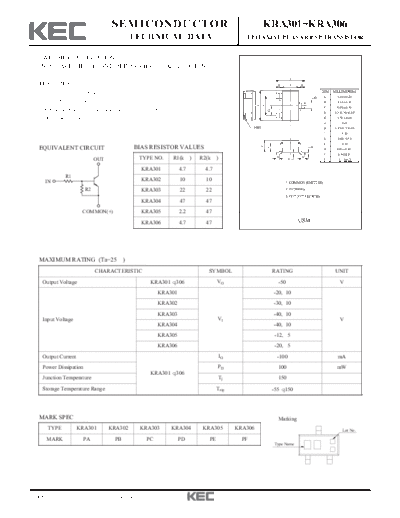

Image preview - the first page of the document
>> Download kra301_6 documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KRA301~KRA306
TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR
SWITCHING APPLICATION.
INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION.
E
FEATURES M B M
With Built-in Bias Resistors. DIM MILLIMETERS
A _
2.00 + 0.20
D
Simplify Circuit Design. 2 B _
1.25 + 0.15
A
J
C _
0.90 + 0.10
Reduce a Quantity of Parts and Manufacturing Process.
G
1 3
D 0.3+0.10/-0.05
_
High Packing Density. E 2.10 + 0.20
G 0.65
P H 0.15+0.1/-0.06
J 1.30
K 0.00~0.10
L 0.70
C
EQUIVALENT CIRCUIT BIAS RESISTOR VALUES
L
H _
M 0.42 + 0.10
N 0.10 MIN
TYPE NO. N N
OUT R1(k ) R2(k ) K P 0.1 MAX
KRA301 4.7 4.7
R1
IN KRA302 10 10 1. COMMON (EMITTER)
R2 KRA303 22 22 2. IN (BASE)
3. OUT (COLLECTOR)
KRA304 47 47
COMMON(+) KRA305 2.2 47
KRA306 4.7 47 USM
MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Output Voltage KRA301 306 VO -50 V
KRA301 -20, 10
KRA302 -30, 10
KRA303 -40, 10
Input Voltage VI V
KRA304 -40, 10
KRA305 -12, 5
KRA306 -20, 5
Output Current IO -100 mA
Power Dissipation PD 100 mW
KRA301 306
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
MARK SPEC Marking
TYPE KRA301 KRA302 KRA303 KRA304 KRA305 KRA306 Lot No.
MARK PA PB PC PD PE PF
Type Name
2008. 10. 30 Revision No : 5 1/6
KRA301~KRA306
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Output Cut-off Current KRA301 306 IO(OFF) VO=-50V, VI=0 - - -500 nA
KRA301 30 55 -
KRA302 50 80 -
KRA303 70 120 -
DC Current Gain GI VO=-5V, IO=-10mA
KRA304 80 200 -
KRA305 80 200 -
KRA306 80 200 -
Output Voltage KRA301 306 VO(ON) IO=-10mA, II=-0.5mA - -0.1 -0.3 V
KRA301 - -1.5 -2.0
KRA302 - -1.8 -2.4
KRA303 - -2.1 -3.0
Input Voltage (ON) VI(ON) VO=-0.2V, IO=-5mA V
KRA304 - -2.8 -5.0
KRA305 - -0.8 -1.1
KRA306 - -0.9 -1.3
KRA301 304 -1.0 -1.2 -
Input Voltage (OFF) VI(OFF) VO=-5V, IO=-0.1mA V
KRA305 306 -0.5 -0.65 -
Transition Frequency KRA301 306 fT * VO=-10V, IO=-5mA - 200 - MHz
KRA301 - - -1.8
KRA302 - - -0.88
KRA303 - - -0.36
Input Current II VI=-5V mA
KRA304 - - -0.18
KRA305 - - -3.6
KRA306 - - -1.8
KRA301 3.29 4.7 6.11
KRA302 7 10 13
KRA303 15.4 22 28.6
Input Resistor R1 - k
KRA304 32.9 47 61.1
KRA305 1.54 2.2 2.86
KRA306 3.29 4.7 6.11
KRA301~304 0.8 1.0 1.2
Resistor Ratio KRA305 R2/R1 - 17 21 26
KRA306 8 10 12
Note : * Characteristic of Transistor Only.
2008. 10. 30 Revision No : 5 2/6
KRA301~KRA306
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
KRA301 - 0.07 -
KRA302 - 0.06 -
KRA303 - 0.2 -
Rise Time tr
KRA304 - 0.24 -
KRA305 - 0.02 -
KRA306 - 0.07 -
KRA301 - 1.1 -
KRA302 - 1.1 -
VO=-5V
Switching KRA303 - 1.1 -
Storage Time tstg VIN=-5V S
Time KRA304 - 1.1 -
RL=1k
KRA305 - 1.1 -
KRA306 - 1.1 -
KRA301 - 0.15 -
KRA302 - 0.24 -
KRA303 - 0.38 -
Fall Time tf
KRA304 - 0.63 -
KRA305 - 0.1 -
KRA306 - 0.2 -
2008. 10. 30 Revision No : 5 3/6
KRA301~KRA306
I O - V I(ON) I O - V I(ON)
KRA301 KRA302
-100 -25
-100
VO =-0.2V VO =-0.2V
25 -25
OUTPUT CURRENT I O (mA)
OUTPUT CURRENT IO (mA)
-50 -50 25
100
-30 -30 100
-10 -10
-5 -5
Ta=100 C
Ta=100 C
-3 -3
Ta=25 C Ta=25 C
Ta=-25 C Ta=-25 C
-1 -1
-0.5 -0.5
-0.3 -0.3
-0.1 -0.3 -1 -3 -10 -30 -100 -0.1 -0.3 -1 -3 -10 -30 -100
INPUT ON VOLTAGE V I(ON) (V) INPUT ON VOLTAGE V I(ON) (V)
I O - V I(ON) I O - V I(ON)
KRA303 KRA304
-100 -100
VO =-0.2V VO =-0.2V
OUTPUT CURRENT IO (mA)
OUTPUT CURRENT I O (mA)
-50 -50
-30 -30
-10 -10
-5 -5
Ta=100 C
Ta=25 C Ta=100 C
-3 -3
Ta=-25 C
Ta=25 C
Ta=-25 C
-1 -1
-0.5 -0.5
-0.3 -0.3
-0.1 -0.3 -1 -3 -10 -30 -100 -0.1 -0.3 -1 -3 -10 -30 -100
INPUT ON VOLTAGE V I(ON) (V) INPUT ON VOLTAGE V I(ON) (V)
I O - VI(ON) I O - V I(ON)
KRA305 KRA306
-100 -100
VO =-0.2V VO =-0.2V
OUTPUT CURRENT I O (mA)
OUTPUT CURRENT IO (mA)
-50 -50
-30 -30
-10 -10
-5 -5
Ta=100 C
Ta=100 C
-3 Ta=25 C -3 Ta=25 C
Ta=-25 C Ta=-25 C
-1 -1
-0.5 -0.5
-0.3 -0.3
-0.1 -0.3 -1 -3 -10 -30 -100 -0.1 -0.3 -1 -3 -10 -30 -100
INPUT ON VOLTAGE V I(ON) (V) INPUT ON VOLTAGE V I(ON) (V)
2008. 10. 30 Revision No : 5 4/6
KRA301~KRA306
I O - V I(OFF) I O - V I(OFF)
KRA301 KRA302
-10k -10k
VO =-5V VO =-5V
-5k
