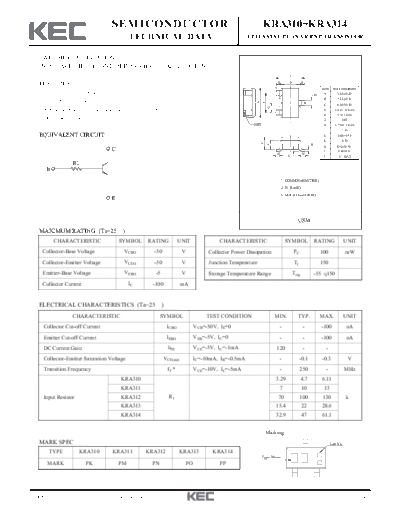

Image preview - the first page of the document
>> Download kra310_14 documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KRA310~KRA314
TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR
SWITCHING APPLICATION.
INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION.
E
M B M
FEATURES
DIM MILLIMETERS
With Built-in Bias Resistors. D A _
2.00 + 0.20
2 B _
1.25 + 0.15
Simplify Circuit Design.
A
J
C _
0.90 + 0.10
G
1 3
Reduce a Quantity of Parts and Manufacturing Process. D 0.3+0.10/-0.05
E _
2.10 + 0.20
High Packing Density. G 0.65
P H 0.15+0.1/-0.06
J 1.30
EQUIVALENT CIRCUIT K 0.00~0.10
L 0.70
C
L
H _
M 0.42 + 0.10
C N 0.10 MIN
N N
K P 0.1 MAX
R1
B
1. COMMON (EMITTER)
2. IN (BASE)
3. OUT (COLLECTOR)
E
USM
MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT CHARACTERISTIC SYMBOL RATING UNIT
Collector-Base Voltage VCBO -50 V Collector Power Dissipation PC 100 mW
Collector-Emitter Voltage VCEO -50 V Junction Temperature Tj 150
Emitter-Base Voltage VEBO -5 V Storage Temperature Range Tstg -55 150
Collector Current IC -100 mA
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Collector Cut-off Current ICBO VCB=-50V, IE=0 - - -100 nA
Emitter Cut-off Current IEBO VEB=-5V, IC=0 - - -100 nA
DC Current Gain hFE VCE=-5V, IC=-1mA 120 - -
Collector-Emitter Saturation Voltage VCE(sat) IC=-10mA, IB=-0.5mA - -0.1 -0.3 V
Transition Frequency fT * VCE=-10V, IC=-5mA - 250 - MHz
KRA310 3.29 4.7 6.11
KRA311 7 10 13
Input Resistor KRA312 R1 70 100 130 k
KRA313 15.4 22 28.6
KRA314 32.9 47 61.1
Marking
MARK SPEC Lot No.
TYPE KRA310 KRA311 KRA312 KRA313 KRA314
Type Name
MARK PK PM PN PO PP
2008. 10. 29 Revision No : 4 1/4
KRA310~KRA314
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
KRA310 - 0.2 -
KRA311 - 0.065 -
Rise Time KRA312 tr - 0.4 -
KRA313 - 0.1 -
KRA314 - 0.15 -
KRA310 - 2.0 -
KRA311 VO=-5V - 1.7 -
Switching
Storage Time KRA312 tstg VIN=-5V - 3.0 - S
Time
KRA313 RL=1k - 2.0 -
KRA314 - 1.5 -
KRA310 - 0.3 -
KRA311 - 0.3 -
Fall Time KRA312 tf - 1.7 -
KRA313 - 0.8 -
KRA314 - 1.5 -
2008. 10. 29 Revision No : 4 2/4
KRA310~314
h FE - I C V CE(sat) - I C
KRA310 KRA310
COLLECTOR-EMITTER SATURATION
2k -2
I C /I B =20
1k -1
DC CURRENT GAIN h FE
VOLTAGE VCE(sat) (V)
500 Ta=100 C -0.5
300 -0.3
Ta=25 C
Ta=-25 C
100 -0.1
Ta=100 C
50 -0.05
30 -0.03 Ta=25 C
VCE =-5V Ta=-25 C
10 -0.01
-0.1 -0.3 -1 -3 -10 -30 -100 -0.1 -0.3 -1 -3 -10 -30 -100
COLLECTOR CURRENT I C (mA) COLLECTOR CURRENT I C (mA)
h FE - I C V CE(sat) - I C
KRA311 KRA311
COLLECTOR-EMITTER SATURATION
2k -2
I C /I B =20
1k -1
DC CURRENT GAIN h FE
VOLTAGE VCE(sat) (V)
500 -0.5
300 Ta=100 C -0.3
Ta=25 C
Ta=-25 C
100 -0.1
Ta=100 C
50 -0.05
30 -0.03 Ta=25 C
VCE =-5V Ta=-25 C
10 -0.01
-0.1 -0.3 -1 -3 -10 -30 -100 -0.1 -0.3 -1 -3 -10 -30 -100
COLLECTOR CURRENT I C (mA) COLLECTOR CURRENT I C (mA)
h FE - I C VCE(sat) - I C
KRA312 KRA312
COLLECTOR-EMITTER SATURATION
2k -2
I C /I B =20
1k -1
DC CURRENT GAIN h FE
VOLTAGE VCE(sat) (V)
500 -0.5
300 Ta=100 C -0.3
Ta=25 C
100 Ta=-25 C -0.1
Ta=100 C
50 -0.05
30 -0.03 Ta=25 C
V CE =-5V Ta=-25 C
10 -0.01
-0.1 -0.3 -1 -3 -10 -30 100 -0.1 -0.3 -1 -3 -10 -30 -100
COLLECTOR CURRENT I C (mA) COLLECTOR CURRENT I C (mA)
2008. 10. 29 Revision No : 4 3/4
KRA310~314
h FE - I C VCE(sat) - I C
KRA313 KRA313
COLLECTOR-EMITTER SATURATION
2k -2
I C /I B =20
1k -1
VOLTAGE VCE(sat) (V)
DC CURRENT GAIN h FE
500 -0.5
300 Ta=100 C -0.3
Ta=25 C
100 Ta=-25 C -0.1
Ta=100 C
50 -0.05
30 -0.03 Ta=25 C
V CE =-5V Ta=-25 C
10 -0.01
-0.1 -0.3 -1 -3 -10 -30 -100 -0.1 -0.3 -1 -3 -10 -30 -100
COLLECTOR CURRENT I C (mA) COLLECTOR CURRENT I C (mA)
h FE - I C VCE(sat) - I C
KRA314 KRA314
COLLECTOR-EMITTER SATURATION
2k -2
I C /I B =20
1k -1
DC CURRENT GAIN h FE
VOLTAGE VCE(sat) (V)
500 -0.5
300 Ta=100 C -0.3
Ta=25 C
100 Ta=-25 C
-0.1
Ta=100 C
50 -0.05
30 -0.03 Ta=25 C
Ta=-25 C
V CE =-5V
10 -0.01
-0.1 -0.3 -1 -3 -10 -30 -100 -0.1 -0.3 -1 -3 -10 -30 -100
COLLECTOR CURRENT I C (mA) COLLECTOR CURRENT I C (mA)
2008. 10. 29 Revision No : 4 4/4
