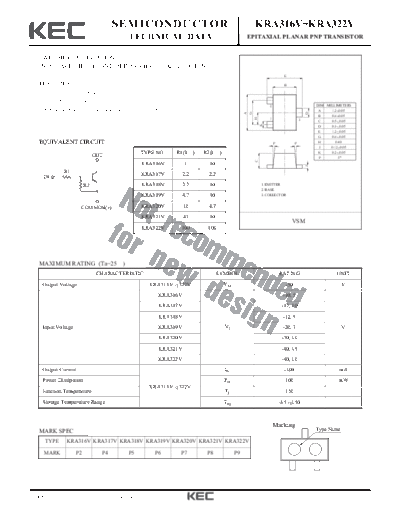

Image preview - the first page of the document
>> Download kra317v documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KRA316V~KRA322V
TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR
SWITCHING APPLICATION.
INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION
E
FEATURES B
With Built-in Bias Resistors.
Simplify Circuit Design.
2 DIM MILLIMETERS
Reduce a Quantity of Parts and Manufacturing Process. A _
1.2 +0.05
D
G
A
B _
0.8 +0.05
H
1 3 _
C 0.5 + 0.05
K
D _
0.3 + 0.05
E _
1.2 + 0.05
G _
0.8 + 0.05
EQUIVALENT CIRCUIT P P H 0.40
J _
0.12 + 0.05
TYPE NO. _
OUT R1(k ) R2(k ) K 0.2 + 0.05
P 5
C
KRA316V 1 10
J
R1 KRA317V 2.2 2.2
IN
R2 KRA318V 2.2 10 1. EMITTER
2. BASE
KRA319V 4.7 10 3. COLLECTOR
COMMON(+) KRA320V 10 4.7
KRA321V 47 10
VSM
KRA322V 100 100
MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Output Voltage KRA316V 322V VO -50 V
KRA316V -10, 5
KRA317V -12, 10
KRA318V -12, 5
Input Voltage KRA319V VI -20, 7 V
KRA320V -30, 10
KRA321V -40, 15
KRA322V -40, 10
Output Current IO -100 mA
Power Dissipation PD 100 mW
KRA316V 322V
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
Marking
MARK SPEC Type Name
TYPE KRA316V KRA317V KRA318V KRA319V KRA320V KRA321V KRA322V
MARK P2 P4 P5 P6 P7 P8 P9
2008. 11. 20 Revision No : 2 1/6
KRA316V~KRA322V
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Output Cut-off Current KRA316V 322V IO(OFF) VO=-50V, VI=0 - - -500 nA
KRA316V VO=-5V, IO=-5mA 33 - -
KRA317V VO=-5V, IO=-20mA 20 - -
KRA318V VO=-5V, IO=-10mA 33 - -
DC Current Gain KRA319V GI VO=-5V, IO=-10mA 30 - -
KRA320V VO=-5V, IO=-10mA 24 - -
KRA321V VO=-5V, IO=-5mA 33 - -
KRA322V VO=-5V, IO=-5mA 62 - -
KRA316V IO=-10mA, II=-0.5mA - - -0.3
KRA317V IO=-10mA, II=-0.5mA - -0.1 -0.3
KRA318V IO=-10mA, II=-0.5mA - - -0.3
Output Voltage KRA319V VO(ON) IO=-10mA, II=-0.5mA - -0.1 -0.3 V
KRA320V IO=-10mA, II=-0.5mA - -0.1 -0.3
KRA321V IO=-10mA, II=-0.5mA - -0.1 -0.3
KRA322V IO=-5mA, II=-0.25mA - -0.1 -0.3
KRA316V VO=-0.3V, IO=-20mA - -0.98 -3
KRA317V VO=-0.3V, IO=-20mA - -1.83 -3
KRA318V VO=-0.3V, IO=-20mA - -1.22 -3
Input Voltage (ON) KRA319V VI(ON) VO=-0.3V, IO=-20mA - -1.76 -2.5 V
KRA320V VO=-0.3V, IO=-2mA - -2 -3
KRA321V VO=-0.3V, IO=-2mA - -3.9 -5
KRA322V VO=-0.3V, IO=-1mA - -1.64 -3
KRA316V -0.3 -0.63 -
KRA317V -0.5 -1.15 -
Input Voltage (OFF) KRA318V VI(OFF) VCC=-5V, IO=-100 A -0.3 -0.67 - V
KRA319V -0.3 -0.82 -
KRA320V -0.8 -1.68 -
KRA316V 0.7 1 1.3
KRA317V 1.54 2.2 2.86
KRA318V 1.54 2.2 2.86
Input Resistor KRA319V R1 - 3.29 4.7 6.11 k
KRA320V 7 10 13
KRA321V 32.9 47 61.1
KRA322V 70 100 130
KRA316V 8 10 12
KRA317V 0.8 1.0 1.2
KRA318V 3.6 4.5 5.5
Resistor Ratio KRA319V R2/R1 - 1.7 2.1 2.6
KRA320V 0.37 0.47 0.57
KRA321V 0.17 0.21 0.26
KRA322V 0.8 1.0 1.2
Note : * Characteristic of Transistor Only.
2008. 11. 20 Revision No : 2 2/6
KRA316V~KRA322V
I O - V I(ON) I O - V I(ON)
KRA316V KRA317V
-100 -100
-50
OUTPUT CURRENT IO (mA)
OUTPUT CURRENT I O (mA)
-50
-30
-30
-10
-10 -5
Ta=25 C
-5 -3 Ta=-25 C
Ta=25 C
-3 Ta=-25 C Ta=100 C
Ta=100 C -1
-0.5
-1 -0.3
-0.5 VO =-0.2V VO =-0.2V
-0.3 -0.1
-0.1 -0.3 -1 -3 -10 -0.1 -0.3 -1 -3 -10
INPUT ON VOLTAGE V I(ON) (V) INPUT ON VOLTAGE V I(ON) (V)
I O - V I(OFF) I O - V I(OFF)
KRA316V KRA317V
-3k -3k
