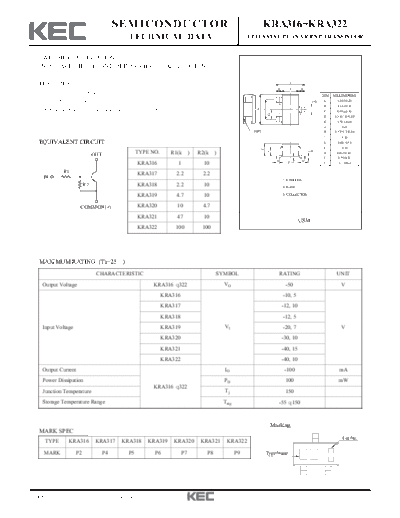

Image preview - the first page of the document
>> Download kra316_22 documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KRA316~KRA322
TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR
SWITCHING APPLICATION.
INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION
FEATURES E
M B M
With Built-in Bias Resistors. DIM MILLIMETERS
_
Simplify Circuit Design. 2
D A 2.00 + 0.20
B _
1.25 + 0.15
A
Reduce a Quantity of Parts and Manufacturing Process.
J
C _
0.90 + 0.10
G
1 3
D 0.3+0.10/-0.05
E _
2.10 + 0.20
G 0.65
P H 0.15+0.1/-0.06
J 1.30
EQUIVALENT CIRCUIT K 0.00~0.10
L 0.70
C
L
TYPE NO. H
OUT R1(k ) R2(k ) M _
0.42 + 0.10
N 0.10 MIN
N N
KRA316 1 10 K P 0.1 MAX
R1 KRA317 2.2 2.2
IN
1. EMITTER
R2 KRA318 2.2 10 2. BASE
KRA319 4.7 10 3. COLLECTOR
COMMON(+) KRA320 10 4.7
KRA321 47 10
USM
KRA322 100 100
MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Output Voltage KRA316 322 VO -50 V
KRA316 -10, 5
KRA317 -12, 10
KRA318 -12, 5
Input Voltage KRA319 VI -20, 7 V
KRA320 -30, 10
KRA321 -40, 15
KRA322 -40, 10
Output Current IO -100 mA
Power Dissipation PD 100 mW
KRA316 322
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
Marking
MARK SPEC
Lot No.
TYPE KRA316 KRA317 KRA318 KRA319 KRA320 KRA321 KRA322
MARK P2 P4 P5 P6 P7 P8 P9 Type Name
2008. 10. 30 Revision No : 5 1/6
KRA316~KRA322
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Output Cut-off Current KRA316 322 IO(OFF) VO=-50V, VI=0 - - -500 nA
KRA316 VO=-5V, IO=-5mA 33 - -
KRA317 VO=-5V, IO=-20mA 20 - -
KRA318 VO=-5V, IO=-10mA 33 - -
DC Current Gain KRA319 GI VO=-5V, IO=-10mA 30 - -
KRA320 VO=-5V, IO=-10mA 24 - -
KRA321 VO=-5V, IO=-5mA 33 - -
KRA322 VO=-5V, IO=-5mA 62 - -
KRA316 IO=-10mA, II=-0.5mA - - -0.3
KRA317 IO=-10mA, II=-0.5mA - -0.1 -0.3
KRA318 IO=-10mA, II=-0.5mA - - -0.3
Output Voltage KRA319 VO(ON) IO=-10mA, II=-0.5mA - -0.1 -0.3 V
KRA320 IO=-10mA, II=-0.5mA - -0.1 -0.3
KRA321 IO=-10mA, II=-0.5mA - -0.1 -0.3
KRA322 IO=-5mA, II=-0.25mA - -0.1 -0.3
KRA316 VO=-0.3V, IO=-20mA - -0.98 -3
KRA317 VO=-0.3V, IO=-20mA - -1.83 -3
KRA318 VO=-0.3V, IO=-20mA - -1.22 -3
Input Voltage (ON) KRA319 VI(ON) VO=-0.3V, IO=-20mA - -1.76 -2.5 V
KRA320 VO=-0.3V, IO=-2mA - -2 -3
KRA321 VO=-0.3V, IO=-2mA - -3.9 -5
KRA322 VO=-0.3V, IO=-1mA - -1.64 -3
KRA316 -0.3 -0.63 -
KRA317 -0.5 -1.15 -
KRA318 -0.3 -0.67 -
Input Voltage (OFF) KRA319 VI(OFF) VCC=-5V, IO=-100 A -0.3 -0.82 - V
KRA320 -0.8 -1.68 -
KRA321 -1 -3.09 -
KRA322 -0.5 -1.17 -
Transition Frequency KRA316 322 f T* VO=-10V, IO=-5mA - 250 - MHz
KRA316 - - -7.2
KRA317 - - -3.8
KRA318 - - -3.8
Input Current KRA319 II VI=-5V - - -1.8 mA
KRA320 - - -0.88
KRA321 - - -0.16
KRA322 - - -0.15
KRA316 0.7 1 1.3
KRA317 1.54 2.2 2.86
KRA318 1.54 2.2 2.86
Input Resistor KRA319 R1 - 3.29 4.7 6.11 k
KRA320 7 10 13
KRA321 32.9 47 61.1
KRA322 70 100 130
KRA316 8 10 12
KRA317 0.8 1.0 1.2
KRA318 3.6 4.5 5.5
Resistor Ratio KRA319 R2/R1 - 1.7 2.1 2.6
KRA320 0.37 0.47 0.57
KRA321 0.17 0.21 0.26
KRA322 0.8 1.0 1.2
Note : * Characteristic of Transistor Only.
2008. 10. 30 Revision No : 5 2/6
KRA316~KRA322
I O - V I(ON) I O - V I(ON)
KRA316 KRA317
-100 -100
-50
OUTPUT CURRENT IO (mA)
OUTPUT CURRENT I O (mA)
-50
-30
-30
-10
-10 -5
Ta=25 C
-5 -3 Ta=-25 C
Ta=25 C
-3 Ta=-25 C Ta=100 C
Ta=100 C -1
-0.5
-1 -0.3
-0.5 VO =-0.2V VO =-0.2V
-0.3 -0.1
-0.1 -0.3 -1 -3 -10 -0.1 -0.3 -1 -3 -10
INPUT ON VOLTAGE V I(ON) (V) INPUT ON VOLTAGE V I(ON) (V)
I O - V I(OFF) I O - V I(OFF)
KRA316 KRA317
-3k -3k
