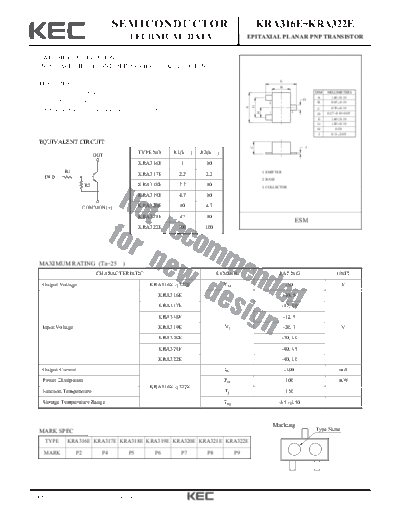

Image preview - the first page of the document
>> Download kra316e documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KRA316E~KRA322E
TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR
SWITCHING APPLICATION.
INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION
E
FEATURES B
With Built-in Bias Resistors. DIM MILLIMETERS
A _
1.60 + 0.10
D
Simplify Circuit Design. 2 B _
0.85 + 0.10
G
A
C _
0.70 + 0.10
Reduce a Quantity of Parts and Manufacturing Process.
H
1 3 0.27+0.10/-0.05
D
E _
1.60 + 0.10
G _
1.00 + 0.10
H 0.50
J _
0.13 + 0.05
EQUIVALENT CIRCUIT
C
J
OUT
TYPE NO. R1(k ) R2(k )
KRA316E 1 10
R1 KRA317E 2.2 2.2 1. EMITTER
IN 2. BASE
R2 KRA318E 2.2 10 3. COLLECTOR
KRA319E 4.7 10
COMMON(+) KRA320E 10 4.7
KRA321E 47 10
ESM
KRA322E 100 100
MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Output Voltage KRA316E 322E VO -50 V
KRA316E -10, 5
KRA317E -12, 10
KRA318E -12, 5
Input Voltage KRA319E VI -20, 7 V
KRA320E -30, 10
KRA321E -40, 15
KRA322E -40, 10
Output Current IO -100 mA
Power Dissipation PD 100 mW
KRA316E 322E
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
Marking
MARK SPEC Type Name
TYPE KRA316E KRA317E KRA318E KRA319E KRA320E KRA321E KRA322E
MARK P2 P4 P5 P6 P7 P8 P9
2008. 11. 20 Revision No : 2 1/6
KRA316E~KRA322E
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Output Cut-off Current KRA316E 322E IO(OFF) VO=-50V, VI=0 - - -500 nA
KRA316E VO=-5V, IO=-5mA 33 - -
KRA317E VO=-5V, IO=-20mA 20 - -
KRA318E VO=-5V, IO=-10mA 33 - -
DC Current Gain KRA319E GI VO=-5V, IO=-10mA 30 - -
KRA320E VO=-5V, IO=-10mA 24 - -
KRA321E VO=-5V, IO=-5mA 33 - -
KRA322E VO=-5V, IO=-5mA 62 - -
KRA316E IO=-10mA, II=-0.5mA - - -0.3
KRA317E IO=-10mA, II=-0.5mA - -0.1 -0.3
KRA318E IO=-10mA, II=-0.5mA - - -0.3
Output Voltage KRA319E VO(ON) IO=-10mA, II=-0.5mA - -0.1 -0.3 V
KRA320E IO=-10mA, II=-0.5mA - -0.1 -0.3
KRA321E IO=-10mA, II=-0.5mA - -0.1 -0.3
KRA322E IO=-5mA, II=-0.25mA - -0.1 -0.3
KRA316E VO=-0.3V, IO=-20mA - -0.98 -3
KRA317E VO=-0.3V, IO=-20mA - -1.83 -3
KRA318E VO=-0.3V, IO=-20mA - -1.22 -3
Input Voltage (ON) KRA319E VI(ON) VO=-0.3V, IO=-20mA - -1.76 -2.5 V
KRA320E VO=-0.3V, IO=-2mA - -2 -3
KRA321E VO=-0.3V, IO=-2mA - -3.9 -5
KRA322E VO=-0.3V, IO=-1mA - -1.64 -3
KRA316E -0.3 -0.63 -
KRA317E -0.5 -1.15 -
KRA318E -0.3 -0.67 -
Input Voltage (OFF) KRA319E VI(OFF) VCC=-5V, IO=-100 A -0.3 -0.82 - V
KRA320E -0.8 -1.68 -
KRA321E -1 -3.09 -
KRA322E -0.5 -1.17 -
Transition Frequency KRA316E 322E f T* VO=-10V, IO=-5mA - 250 - MHz
KRA316E - - -7.2
KRA317E - - -3.8
KRA318E - - -3.8
Input Current KRA319E II VI=-5V - - -1.8 mA
KRA320E - - -0.88
KRA321E - - -0.16
KRA322E - - -0.15
KRA316E 0.7 1 1.3
KRA317E 1.54 2.2 2.86
KRA318E 1.54 2.2 2.86
Input Resistor KRA319E R1 - 3.29 4.7 6.11 k
KRA320E 7 10 13
KRA321E 32.9 47 61.1
KRA322E 70 100 130
KRA316E 8 10 12
KRA317E 0.8 1.0 1.2
KRA318E 3.6 4.5 5.5
Resistor Ratio KRA319E R2/R1 - 1.7 2.1 2.6
KRA320E 0.37 0.47 0.57
KRA321E 0.17 0.21 0.26
KRA322E 0.8 1.0 1.2
Note : * Characteristic of Transistor Only.
2008. 11. 20 Revision No : 2 2/6
KRA316E~KRA322E
I O - V I(ON) I O - V I(ON)
KRA316E KRA317E
-100 -100
-50
OUTPUT CURRENT IO (mA)
OUTPUT CURRENT I O (mA)
-50
-30
-30
-10
-10 -5
Ta=25 C
-5 -3 Ta=-25 C
Ta=25 C
-3 Ta=-25 C Ta=100 C
Ta=100 C -1
-0.5
-1 -0.3
-0.5 VO =-0.2V VO =-0.2V
-0.3 -0.1
-0.1 -0.3 -1 -3 -10 -0.1 -0.3 -1 -3 -10
INPUT ON VOLTAGE V I(ON) (V) INPUT ON VOLTAGE V I(ON) (V)
I O - V I(OFF) I O - V I(OFF)
KRA316E KRA317E
-3k -3k
