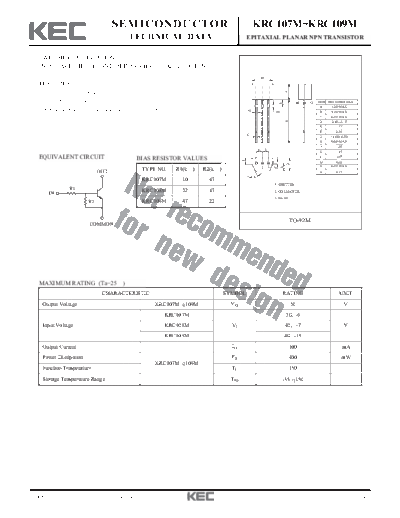

Image preview - the first page of the document
>> Download krc107m-109m documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KRC107M~KRC109M
TECHNICAL DATA EPITAXIAL PLANAR NPN TRANSISTOR
SWITCHING APPLICATION.
INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION.
B
FEATURES
A
With Built-in Bias Resistors
Simplify Circuit Design O DIM MILLIMETERS
F
A 3.20 MAX
Reduce a Quantity of Parts and Manufacturing Process H M B 4.30 MAX
C 0.55 MAX
G
D _
2.40 + 0.15
E 1.27
F 2.30
C _
G 14.00+ 0.50
H 0.60 MAX
J 1.05
E E
K 1.45
EQUIVALENT CIRCUIT BIAS RESISTOR VALUES L 25
J
M 0.80
D
K
1 2 3 N N 0.55 MAX
OUT
TYPE NO. R1(k ) R2(k ) O 0.75
L
KRC107M 10 47
1. EMITTER
R1 KRC108M 22 47 2. COLLECTOR
IN
3. BASE
R2 KRC109M 47 22
TO-92M
COMMON
MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Output Voltage KRC107M 109M VO 50 V
KRC107M 30, -6
Input Voltage KRC108M VI 40, -7 V
KRC109M 40, -15
Output Current IO 100 mA
Power Dissipation PD 400 mW
KRC107M 109M
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
2008. 11. 20 Revision No : 5 1/4
KRC107M~KRC109M
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Output Cut-off Current KRC107M 109M IO(OFF) VO=50V, VI=0 - - 500 nA
KRC107M 80 150 -
DC Current Gain KRC108M GI VO=5V, IO=10mA 80 150 -
KRC109M 70 140 -
Output Voltage KRC107M 109M VO(ON) IO=10mA, II=0.5mA - 0.1 0.3 V
KRC107M - 1.2 1.8
Input Voltage (ON) KRC108M VI(ON) VO=0.2V, IO=5mA - 1.8 2.6 V
KRC109M - 3.0 5.8
KRC107M 0.5 0.75 -
Input Votlage (OFF) KRC108M VI(OFF) VO=5V, IO=0.1mA 0.6 0.88 - V
KRC109M 1.5 1.82 -
Transition Frequency KRC107M 109M fT * VO=10V, IO=5mA - 200 - MHz
KRC107M - - 0.88
Input Current KRC108M II VI=5V - - 0.36 mA
KRC109M - - 0.16
KRC107M - 0.05 -
Rise
KRC108M tr - 0.12 -
Time
KRC109M - 0.26 -
KRC107M - 2.0 -
Switching Storage VO=5V, VIN=5V
KRC108M tstg - 2.4 - S
Time Time RL=1k
KRC109M - 1.5 -
KRC107M - 0.36 -
Fall
KRC108M tf - 0.4 -
Time
KRC109M - 0.41 -
KRA107S 7 10 13
Input Resistor KRA108S R1 - 15.4 22 28.6 k
KRA109S 32.9 47 61.1
KRA107S 3.7 4.7 5.7
Resistor Ratio KRA108S R2/R1 - 1.7 2.1 2.6
KRA109S 0.37 0.47 0.57
Note : * Characteristic of Transistor Only.
2008. 11. 20 Revision No : 5 2/4
KRC107M~KRC109M
I O - V I(ON) I O - V I(OFF)
KRC107M KRC107M
100 3k
VO =0.2V -25 VO =5V
OUTPUT CURRENT I O (mA)
25
