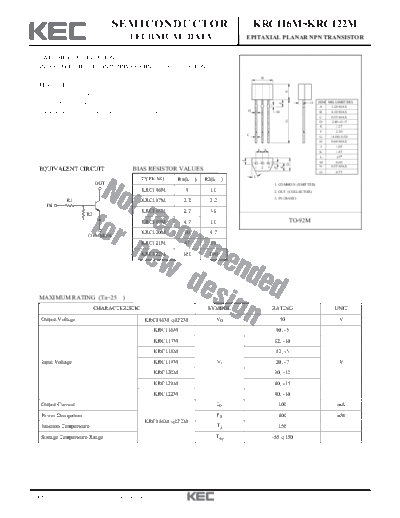

Image preview - the first page of the document
>> Download krc116m documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KRC116M~KRC122M
TECHNICAL DATA EPITAXIAL PLANAR NPN TRANSISTOR
SWITCHING APPLICATION.
INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION
B
FEATURES
A
With Built-in Bias Resistors.
Simplify Circuit Design. O DIM MILLIMETERS
F
A 3.20 MAX
H
Reduce a Quantity of Parts and Manufacturing Process. M B 4.30 MAX
C 0.55 MAX
G
D _
2.40 + 0.15
E 1.27
F 2.30
C _
G 14.00+ 0.50
H 0.60 MAX
J 1.05
E E
K 1.45
L 25
J
M 0.80
D
K
1 2 3 N N 0.55 MAX
EQUIVALENT CIRCUIT BIAS RESISTOR VALUES O 0.75
L
TYPE NO. R1(k ) R2(k )
OUT 1. COMMON (EMITTER)
KRC116M 1 10 2. OUT (COLLECTOR)
3. IN (BASE)
R1 KRC117M 2.2 2.2
IN
KRC118M 2.2 10
R2
KRC119M 4.7 10 TO-92M
KRC120M 10 4.7
COMMON
KRC121M 47 10
KRC122M 100 100
MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Output Voltage KRC116M 122M VO 50 V
KRC116M 10, -5
KRC117M 12, -10
KRC118M 12, -5
Input Voltage KRC119M VI 20, -7 V
KRC120M 30, -10
KRC121M 40, -15
KRC122M 40, -10
Output Current IO 100 mA
Power Dissipation PD 400 mW
KRC116M 122M
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
2008. 11. 20 Revision No : 4 1/7
KRC116M~KRC122M
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Output Cut-off Current KRC116M 122M IO(OFF) VO=50V, VI=0 - - 500 nA
KRC116M VO=5V, IO=5mA 33 - -
KRC117M VO=5V, IO=20mA 20 - -
KRC118M VO=5V, IO=10mA 33 - -
DC Current Gain KRC119M GI VO=5V, IO=10mA 30 - -
KRC120M VO=5V, IO=10mA 24 - -
KRC121M VO=5V, IO=5mA 33 - -
KRC122M VO=5V, IO=5mA 62 - -
KRC116M IO=10mA, II=0.5mA - - 0.3
KRC117M IO=10mA, II=0.5mA - 0.1 0.3
KRC118M IO=10mA, II=0.5mA - - 0.3
Output Voltage KRC119M VO(ON) IO=10mA, II=0.5mA - 0.1 0.3 V
KRC120M IO=10mA, II=0.5mA - 0.1 0.3
KRC121M IO=10mA, II=0.5mA - 0.1 0.3
KRC122M IO=5mA, II=0.25mA - 0.1 0.3
KRC116M VO=0.3V, IO=20mA - 0.98 3
KRC117M VO=0.3V, IO=20mA - 1.83 3
KRC118M VO=0.3V, IO=20mA - 1.22 3
Input Voltage (ON) KRC119M VI(ON) VO=0.3V, IO=20mA - 1.76 2.5 V
KRC120M VO=0.3V, IO=2mA - 2 3
KRC121M VO=0.3V, IO=2mA - 3.9 5
KRC122M VO=0.3V, IO=1mA - 1.64 3
KRC116M 0.3 0.63 -
KRC117M 0.5 1.15 -
KRC118M 0.3 0.67 -
Input Voltage (OFF) KRC119M VI(OFF) VCC=5V, IO=100 A 0.3 0.82 - V
KRC120M 0.8 1.68 -
KRC121M 1 3.09 -
KRC122M 0.5 1.17 -
Transition Frequency KRC116M 122M f T* VO=10V, IO=5mA - 250 - MHz
KRC116M - - 7.2
KRC117M - - 3.8
KRC118M - - 3.8
Input Current KRC119M II VI=5V - - 1.8 mA
KRC120M - - 0.88
KRC121M - - 0.16
KRC122M - - 0.15
KRC116M 0.7 1 1.3
KRC117M 1.54 2.2 2.86
KRC118M 1.54 2.2 2.86
Input Resistor KRC119M R1 - 3.29 4.7 6.11 k
KRC120M 7 10 13
KRC121M 32.9 47 61.1
KRC122M 70 100 130
KRC116M 8 10 12
KRC117M 0.8 1.0 1.2
KRC118M 3.6 4.5 5.5
Resistor Ratio KRC119M R2/R1 - 1.7 2.1 2.6
KRC120M 0.37 0.47 0.57
KRC121M 0.17 0.21 0.26
KRC122M 0.8 1.0 1.2
Note : * Characteristic of Transistor Only.
2008. 11. 20 Revision No : 4 2/7
KRC116M~KRC122M
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
KRC116M - 0.01 -
KRC117M - 0.03 -
KRC118M - 0.02 -
Rise
KRC119M tr - 0.05 -
Time
KRC120M - 0.12 -
KRC121M - 0.30 -
KRC122M - 0.35 -
KRC116M - 3 -
KRC117M - 2 -
KRC118M VO=5V - 3 -
Switching Storage
KRC119M tstg VIN=5V - 3 - S
Time Time
KRC120M RL=1k - 2 -
KRC121M - 2 -
KRC122M - 2 -
KRC116M - 0.1 -
KRC117M - 0.19 -
KRC118M - 0.1 -
Fall
KRC119M tf - 0.36 -
Time
KRC120M - 0.35 -
KRC121M - 0.5 -
KRC122M - 0.7 -
2008. 11. 20 Revision No : 4 3/7
KRC116M~KRC122M
I O - V I(ON) I O - V I(ON)
KRC116M KRC117M
100 100
50
OUTPUT CURRENT IO (mA)
OUTPUT CURRENT I O (mA)
50
30
30
10
10 5
Ta=25 C
5 3 Ta=-25 C
Ta=25 C
3 Ta=-25 C Ta=100 C
Ta=100 C 1
0.5
1 0.3
0.5 VO =0.2V VO =0.2V
0.3 0.1
0.1 0.3 1 3 10 0.1 0.3 1 3 10
INPUT ON VOLTAGE V I(ON) (V) INPUT ON VOLTAGE V I(ON) (V)
I O - V I(OFF) I O - V I(OFF)
KRC116M KRC117M
3k 3k
OUTPUT CURRENT I O (◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
