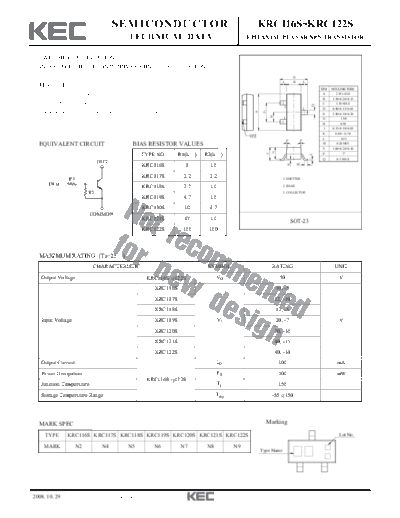

Image preview - the first page of the document
>> Download krc116s_122s documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KRC116S~KRC122S
TECHNICAL DATA EPITAXIAL PLANAR NPN TRANSISTOR
SWITCHING APPLICATION.
INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION
E
L B L
FEATURES DIM MILLIMETERS
A _
2.93 + 0.20
With Built-in Bias Resistors.
B 1.30+0.20/-0.15
Simplify Circuit Design. C 1.30 MAX
D
2 3 D 0.40+0.15/-0.05
Reduce a Quantity of Parts and Manufacturing Process.
A
G
E 2.40+0.30/-0.20
H
1 G 1.90
H 0.95
J 0.13+0.10/-0.05
K 0.00 ~ 0.10
Q
L 0.55
P P
EQUIVALENT CIRCUIT BIAS RESISTOR VALUES M 0.20 MIN
N 1.00+0.20/-0.10
N
C
TYPE NO. R1(k ) R2(k ) P 7
J
Q 0.1 MAX
OUT
K
KRC116S 1 10 M
KRC117S 2.2 2.2
R1 1. EMITTER
IN KRC118S 2.2 10 2. BASE
R2 3. COLLECTOR
KRC119S 4.7 10
KRC120S 10 4.7
COMMON
KRC121S 47 10 SOT-23
KRC122S 100 100
MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Output Voltage KRC116S 122S VO 50 V
KRC116S 10, -5
KRC117S 12, -10
KRC118S 12, -5
Input Voltage KRC119S VI 20, -7 V
KRC120S 30, -10
KRC121S 40, -15
KRC122S 40, -10
Output Current IO 100 mA
Power Dissipation PD 200 mW
KRC116S 122S
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
MARK SPEC Marking
TYPE KRC116S KRC117S KRC118S KRC119S KRC120S KRC121S KRC122S Lot No.
MARK N2 N4 N5 N6 N7 N8 N9
Type Name
2008. 10. 29 Revision No : 5 1/6
KRC116S~KRC122S
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Output Cut-off Current KRC116S 122S IO(OFF) VO=50V, VI=0 - - 500 nA
KRC116S VO=5V, IO=5mA 33 - -
KRC117S VO=5V, IO=20mA 20 - -
KRC118S VO=5V, IO=10mA 33 - -
DC Current Gain KRC119S GI VO=5V, IO=10mA 30 - -
KRC120S VO=5V, IO=10mA 24 - -
KRC121S VO=5V, IO=5mA 33 - -
KRC122S VO=5V, IO=5mA 62 - -
KRC116S IO=10mA, II=0.5mA - - 0.3
KRC117S IO=10mA, II=0.5mA - 0.1 0.3
KRC118S IO=10mA, II=0.5mA - - 0.3
Output Voltage KRC119S VO(ON) IO=10mA, II=0.5mA - 0.1 0.3 V
KRC120S IO=10mA, II=0.5mA - 0.1 0.3
KRC121S IO=10mA, II=0.5mA - 0.1 0.3
KRC122S IO=5mA, II=0.25mA - 0.1 0.3
KRC116S VO=0.3V, IO=20mA - 0.98 3
KRC117S VO=0.3V, IO=20mA - 1.83 3
KRC118S VO=0.3V, IO=20mA - 1.22 3
Input Voltage (ON) KRC119S VI(ON) VO=0.3V, IO=20mA - 1.76 2.5 V
KRC120S VO=0.3V, IO=2mA - 2 3
KRC121S VO=0.3V, IO=2mA - 3.9 5
KRC122S VO=0.3V, IO=1mA - 1.64 3
KRC116S 0.3 0.63 -
KRC117S 0.5 1.15 -
KRC118S 0.3 0.67 -
Input Voltage (OFF) KRC119S VI(OFF) VCC=5V, IO=100 A 0.3 0.82 - V
KRC120S 0.8 1.68 -
KRC121S 1 3.09 -
KRC122S 0.5 1.17 -
Transition Frequency KRC116S 122S fT* VO=10V, IO=5mA - 250 - MHz
KRC116S - - 7.2
KRC117S - - 3.8
KRC118S - - 3.8
Input Current KRC119S II VI=5V - - 1.8 mA
KRC120S - - 0.88
KRC121S - - 0.16
KRC122S - - 0.15
KRC116S 0.7 1 1.3
KRC117S 1.54 2.2 2.86
KRC118S 1.54 2.2 2.86
Input Resistor KRC119S R1 - 3.29 4.7 6.11 k
KRC120S 7 10 13
KRC121S 32.9 47 61.1
KRC122S 70 100 130
KRC116S 8 10 12
KRC117S 0.8 1.0 1.2
KRC118S 3.6 4.5 5.5
Resistor Ratio KRC119S R2/R1 - 1.7 2.1 2.6
KRC120S 0.37 0.47 0.57
KRC121S 0.17 0.21 0.26
KRC122S 0.8 1.0 1.2
Note : * Characteristic of Transistor Only.
2008. 10. 29 Revision No : 5 2/6
KRC116S~KRC122S
I O - V I(ON) I O - V I(ON)
KRC116S KRC117S
100 100
50
OUTPUT CURRENT IO (mA)
OUTPUT CURRENT I O (mA)
50
30
30
10
10 5
Ta=25 C
5 3 Ta=-25 C
Ta=25 C
3 Ta=-25 C Ta=100 C
Ta=100 C 1
0.5
1 0.3
0.5 VO =0.2V VO =0.2V
0.3 0.1
0.1 0.3 1 3 10 0.1 0.3 1 3 10
INPUT ON VOLTAGE V I(ON) (V) INPUT ON VOLTAGE V I(ON) (V)
I O - V I(OFF) I O - V I(OFF)
KRC116S KRC117S
3k 3k
