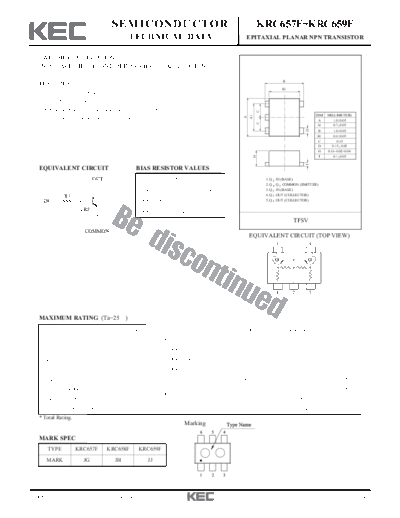

Image preview - the first page of the document
>> Download krc658f documenatation <<Text preview - extract from the document SEMICONDUCTOR KRC657F~KRC659F
TECHNICAL DATA EPITAXIAL PLANAR NPN TRANSISTOR
SWITCHING APPLICATION.
INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION.
B
FEATURES
B1
With Built-in Bias Resistors.
Simplify Circuit Design.
Reduce a Quantity of Parts and Manufacturing Process.
C
DIM MILLIMETERS
A1
A
Thin Fine Pitch Super mini 5pin Package. A _
1.0 + 0.05
C
A1 _
0.7 + 0.05
_
D
B 1.0 + 0.05
B1 _
0.8 + 0.05
C 0.35
D _
0.15 + 0.05
H 0.38+0.02/-0.04
_
H
T 0.1 + 0.05
T
EQUIVALENT CIRCUIT BIAS RESISTOR VALUES
OUT TYPE NO. R1(k ) R2(k ) 1. Q 1 IN (BASE)
2. Q 1, Q 2 COMMON (EMITTER)
KRC657F 10 47 3. Q 2 IN (BASE)
R1 4. Q 2 OUT (COLLECTOR)
IN KRC658F 22 47 5. Q 1 OUT (COLLECTOR)
R2 KRC659F 47 22
TFSV
COMMON
EQUIVALENT CIRCUIT (TOP VIEW)
5 4
Q1 Q2
1 2 3
MAXIMUM RATING (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Output Voltage KRC657F~659F VO 20 V
KRC657F 10/-6
Input Voltage KRC658F VI 10/-7 V
KRC659F 10/-15
Output Current IO 50 mA
Power Dissipation PD* 50 mW
KRC657F~659F
Junction Temperature Tj 150
Storage Temperature Range Tstg 55 150
* Total Rating.
Marking
MARK SPEC
TYPE KRC657F KRC658F KRC659F
MARK JG JH JJ
2008. 11. 20 Revision No : 2 1/4
KRC657F~KRC659F
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Output Cut-off Current KRC657F~659F IO(OFF) VO=20V, VI=0 - - 500 nA
KRC657F 120 - -
DC Current Gain KRC658F GI VO=5V, IO=10mA 120 - -
KRC659F 100 - -
Output Voltage KRC657F~659F VO(ON) IO=5mA, II=0.25mA - - 0.15 V
KRC657F - - 1.5
Input Voltage (ON) KRC658F VI(ON) VO=0.2V, IO=5mA - - 2.2 V
KRC659F - - 5.0
KRC657F 0.5 - -
Input Voltage (OFF) KRC658F VI(OFF) VO=5V, IO=0.1mA 0.6 - - V
KRC659F 1.3 - -
KRC657F - - 0.88
Input Current KRC658F I1 VI=5V - - 0.36 mA
KRC659F - - 0.16
KRC657F 7 10 13
Input Resistor KRC658F R1 - 15.4 22 28.6 k
KRC659F 32.9 47 61.1
KRC657F 3.7 4.7 5.7
Resistor Ratio KRC658F R2/R1 - 1.7 2.1 2.6
KRC659F 0.37 0.47 0.57
2008. 11. 20 Revision No : 2 2/4
KRC657F~KRC659F
IO - VI(ON) IO - VI(OFF)
KRC657F KRC657F
100 10000
VO= 0.2V VO= 5V
OUTPUT CURRENT IO (mA)
OUTPUT CURRENT IO (
