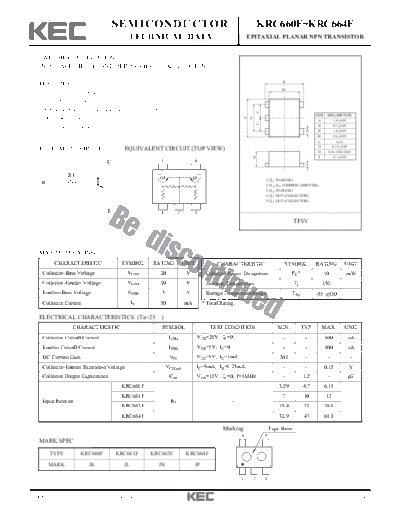

Image preview - the first page of the document
krc660f-664f


>> Download krc660f-664f documenatation <<

Text preview - extract from the document
                                    SEMICONDUCTOR                                                                  KRC660F~KRC664F
                                           TECHNICAL DATA                                             EPITAXIAL PLANAR NPN TRANSISTOR


  SWITCHING APPLICATION.
  INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION.

                                                                                                                                B
  FEATURES
                                                                                                                                B1
    With Built-in Bias Resistors.
    Simplify Circuit Design.
    Reduce a Quantity of Parts and Manufacturing Process.




                                                                                                                   C
                                                                                                                                                    DIM    MILLIMETERS




                                                                                                          A1
                                                                                                      A
    High Packing Density.                                                                                                                            A            _
                                                                                                                                                              1.0 + 0.05




                                                                                                                   C
                                                                                                                                                     A1           _
                                                                                                                                                              0.7 + 0.05
    Thin Fine Pitch Super mini 5pin Package.
                                                                                                                                                                  _




                                                                                                                                               D
                                                                                                                                                     B        1.0 + 0.05
                                                                                                                                                     B1           _
                                                                                                                                                              0.8 + 0.05
                                                                                                                                                     C           0.35
                                                                                                                                                     D             _
                                                                                                                                                              0.15 + 0.05
  EQUIVALENT CIRCUIT                   EQUIVALENT CIRCUIT (TOP VIEW)                                                                                 H     0.38+0.02/-0.04
                                                                                                                                                                  _




                                                                                                               H
                                                                                                                                                     T        0.1 + 0.05
                                C                     5                    4




                                                                                                                                               T
               R1                                    Q1                    Q2
                                                                                                                       1. Q 1 IN (BASE)
   B                                                                                                                   2. Q 1, Q 2 COMMON (EMITTER)
                                                                                                                       3. Q 2 IN (BASE)
                                                                                                                       4. Q 2 OUT (COLLECTOR)
                                                                                                                       5. Q 1 OUT (COLLECTOR)


                                E                     1           2        3

                                                                                                                                       TFSV




  MAXIMUM RATING (Ta=25                )
         CHARACTERISTIC               SYMBOL      RATING              UNIT             CHARACTERISTIC                            SYMBOL             RATING           UNIT
    Collector-Base Voltage                 VCBO       20               V          Collector Power Dissipation                         PC *                50          mW
    Collector-Emitter Voltage              VCEO       20               V          Junction Temperature                                 Tj             150
    Emitter-Base Voltage                   VEBO       5                V          Storage TemperatureRange                            Tstg          -55 150
    Collector Current                       IC        50              mA        * Total Rating.

  ELECTRICAL CHARACTERISTICS (Ta=25                   )
                 CHARACTERISTIC                       SYMBOL                       TEST CONDITION                             MIN.           TYP.     MAX.           UNIT
    Collector Cut-off Current                               ICBO               VCB=20V, IE=0                                    -             -           100          nA
    Emitter Cut-off Current                                 IEBO               VEB=5V, IC=0                                     -             -           100          nA
    DC Current Gain                                         hFE                VCE=5V, IC=1mA                                  300            -            -            -
    Collector-Emitter Saturation Voltage                  VCE(sat)             IC=5mA, IB=0.25mA                                -             -           0.15          V
    Collector Output Capacitance                            Cob                VCB=10V, IE=0, f=1MHz                            -            1.2           -           pF
                                      KRC660F                                                                                  3.29          4.7          6.11
                                      KRC661F                                                                                   7             10          13
    Input Resistor                                          R1                                -
                                      KRC663F                                                                                  15.4           22          28.6
                                      KRC664F                                                                                  32.9           47          61.1

                                                                                         Marking                           Type Name
                                                                                                  5                    4
  MARK SPEC
       TYPE          KRC660F        KRC661F       KRC663F              KRC664F

       MARK             JK             JL            JN                    JP

                                                                                                  1            2       3



2008. 11. 20                    Revision No : 2                                                                                                                              1/4
                                                                                       KRC660F~KRC664F


                                                                  IO - VI(ON)                                                                                          IO - VI(OFF)
                                         KRC660F                                                                                             KRC660F
                                  100                                                                                            10000
                                             VO= 0.2V                                                                                         VO= 5V
         OUTPUT CURRENT IO (mA)




                                                                                                       OUTPUT CURRENT IO (
