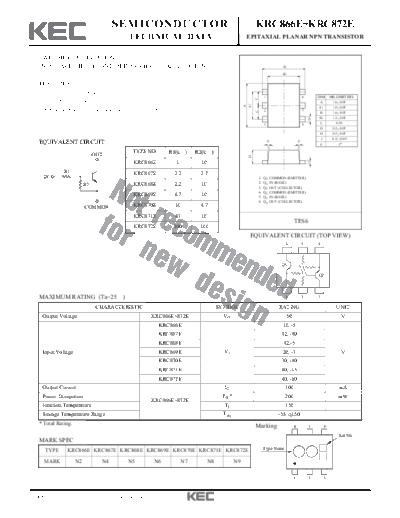

Image preview - the first page of the document
>> Download krc867e documenatation <<
Text preview - extract from the document
SEMICONDUCTOR KRC866E~KRC872E
TECHNICAL DATA EPITAXIAL PLANAR NPN TRANSISTOR
SWITCHING APPLICATION.
INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION B
B1
FEATURES
With Built-in Bias Resistors.
1 6 DIM MILLIMETERS
C
Simplify Circuit Design. A _
1.6 + 0.05
A1
A
A1 _
1.0 + 0.05
Reduce a Quantity of Parts and Manufacturing Process. 2 5
C
B _
1.6 + 0.05
B1 _
1.2 + 0.05
D
3 4 C 0.50
D _
0.2 + 0.05
H _
0.5 + 0.05
J _
0.12 + 0.05
EQUIVALENT CIRCUIT P P
P 5
TYPE NO. R1(k ) R2(k )
OUT
H
KRC866E 1 10
J
R1 KRC867E 2.2 2.2
IN 1. Q1 COMMON (EMITTER)
KRC868E 2.2 10 2. Q1 IN (BASE)
R2 3. Q2 OUT (COLLECTOR)
4. Q2 COMMON (EMITTER)
KRC869E 4.7 10 5. Q2 IN (BASE)
6. Q1 OUT (COLLECTOR)
COMMON KRC870E 10 4.7
KRC871E 47 10
TES6
KRC872E 100 100
EQUIVALENT CIRCUIT (TOP VIEW)
6 5 4
Q1
Q2
MAXIMUM RATING (Ta=25 ) 1 2 3
CHARACTERISTIC SYMBOL RATING UNIT
Output Voltage KRC866E~872E VO 50 V
KRC866E 10, -5
KRC867E 12, -10
KRC868E 12,-5
Input Voltage KRC869E VI 20, -7 V
KRC870E 30, -10
KRC871E 40, -15
KRC872E 40, -10
Output Current IO 100 mA
Power Dissipation PD * 200 mW
KRC866E~872E
Junction Temperature Tj 150
Storage Temperature Range Tstg -55 150
* Total Rating. Marking 6 5 4
Lot No.
MARK SPEC
TYPE KRC866E KRC867E KRC868E KRC869E KRC870E KRC871E KRC872E Type Name
MARK N2 N4 N5 N6 N7 N8 N9
1 2 3
2008. 11. 20 Revision No : 4 1/6
KRC866E~KRC872E
ELECTRICAL CHARACTERISTICS (Ta=25 )
CHARACTERISTIC SYMBOL TEST CONDITION MIN. TYP. MAX. UNIT
Output Cut-off Current KRC866E~872E IO(OFF) VO=50V, VI=0 - - 500 nA
KRC866E VO=5V, IO=5mA 33 - -
KRC867E VO=5V, IO=20mA 20 - -
KRC868E VO=5V, IO=10mA 33 - -
DC Current Gain KRC869E GI VO=5V, IO=10mA 30 - -
KRC870E VO=5V, IO=10mA 24 - -
KRC871E VO=5V, IO=5mA 33 - -
KRC872E VO=5V, IO=5mA 62 - -
KRC866E IO=10mA, II=0.5mA - - 0.3
KRC867E IO=10mA, II=0.5mA - 0.1 0.3
KRC868E IO=10mA, II=0.5mA - - 0.3
Output Voltage KRC869E VO(ON) IO=10mA, II=0.5mA - 0.1 0.3 V
KRC870E IO=10mA, II=0.5mA - 0.1 0.3
KRC871E IO=10mA, II=0.5mA - 0.1 0.3
KRC872E IO=5mA, II=0.25mA - 0.1 0.3
KRC866E VO=0.3V, IO=20mA - 0.98 3
KRC867E VO=0.3V, IO=20mA - 1.83 3
KRC868E VO=0.3V, IO=20mA - 1.22 3
Input Voltage (ON) KRC869E VI(ON) VO=0.3V, IO=20mA - 1.76 2.5 V
KRC870E VO=0.3V, IO=2mA - 2 3
KRC871E VO=0.3V, IO=2mA - 3.9 5
KRC872E VO=0.3V, IO=1mA - 1.64 3
KRC866E 0.3 0.63 -
KRC867E 0.5 1.15 -
Input Voltage (OFF) KRC868E VI(OFF) VCC=5V, IO=100 A 0.3 0.67 - V
KRC869E 0.3 0.82 -
KRC870E 0.8 1.68 -
KRC866E 0.7 1 1.3
KRC867E 1.54 2.2 2.86
KRC868E 1.54 2.2 2.86
Input Resistor KRC869E R1 - 3.29 4.7 6.11 k
KRC870E 7 10 13
KRC871E 32.9 47 61.1
KRC872E 70 100 130
KRC866E 8 10 12
KRC867E 0.8 1.0 1.2
KRC868E 3.6 4.5 5.5
Resistor Ratio KRC869E R2/R1 - 1.7 2.1 2.6
KRC870E 0.37 0.47 0.57
KRC871E 0.17 0.21 0.26
KRC872E 0.8 1.0 1.2
Note : * Characteristic of Transistor Only.
2008. 11. 20 Revision No : 4 2/6
KRC866E~KRC872E
IO - VI(ON) IO - VI(ON)
KRC866E KRC867E
100 100
OUTPUT CURRENT IO (mA)
OUTPUT CURRENT IO (mA)
50 50
30 30
10
10 5
Ta=25 C
5 Ta=25 C 3 Ta=-25 C
3 Ta=-25 C Ta=100 C
Ta=100 C
1
0.5
1 0.3
0.5 VO =0.2V VO =0.2V
0.3 0.1
0.1 0.3 1 3 10 0.1 0.3 1 3 10
INPUT ON VOLTAGE VI(ON) (V) INPUT ON VOLTAGE VI(ON) (V)
IO - VI(OFF) IO - VI(OFF)
KRC866E KRC867E
3k 3k
