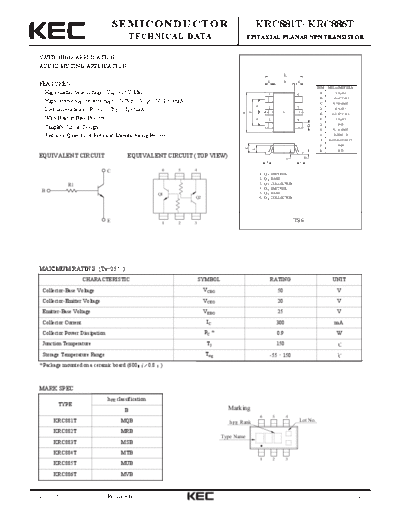

Image preview - the first page of the document
krc881t_886t


>> Download krc881t_886t documenatation <<

Text preview - extract from the document
                                       SEMICONDUCTOR                                                KRC881T~KRC886T
                                                 TECHNICAL DATA                                 EPITAXIAL PLANAR NPN TRANSISTOR


  SWITCHING APPLICATION.
  AUDIO MUTING APPLICATION.
                                                                                                                              E

                                                                                                              K               B        K
  FEATURES
                                                                                                                                                     DIM   MILLIMETERS
       High emitter-base voltage : VEBO=25V(Min)                                                                 1                     6              A           _
                                                                                                                                                              2.9 + 0.2
                                                                                                                                                      B     1.6+0.2/-0.1
       High reverse hFE : reverse hFE=150(Typ.) (VCE=-2V, IC=-4mA)                                                                                    C           _
                                                                                                                                                             0.70 + 0.05




                                                                                                    G
                                                                                                                 2                     5                          _
       Low on resistance : Ron=1 (Typ.) (IB=5mA)                                                                                                      D       0.4 + 0.1




                                                                                                F
                                                                                                                                                      E     2.8+0.2/-0.3




                                                                                            A
       With Built-in Bias Resistors.                                                                             3                     4              F           _
                                                                                                                                                              1.9 + 0.2




                                                                                                    G
                                                                                                                                                      G         0.95
       Simplify Circuit Design.




                                                                                                                                               D
                                                                                                                                                      H           _
                                                                                                                                                             0.16 + 0.05
       Reduce a Quantity of Parts and Manufacturing Process.                                                                                          I      0.00-0.10
                                                                                                                                                      J    0.25+0.25/-0.15
                                                                                                                                                      K         0.60




                                                                                             C

                                                                                                   L
                                                                                                                                                      L         0.55
  EQUIVALENT CIRCUIT                         EQUIVALENT CIRCUIT (TOP VIEW)                                                        I            H
                                                                                                             J                             J

                                   C                           6   5   4
                                                                                                        1.   Q1      EMITTER
                                                                                                        2.   Q1      BASE
                 R1                                                                                     3.   Q2      COLLECTOR
                                                                                                        4.   Q2      EMITTER
   B                                                                                                    5.   Q2      BASE
                                                              Q1
                                                                       Q2                               6.   Q1      COLLECTOR




                                   E                           1   2   3                                                              TS6




  MAXIMUM RATING (Ta=25                  )
                       CHARACTERISTIC                                      SYMBOL                                    RATING                                  UNIT
   Collector-Base Voltage                                                   VCBO                                         50                                     V
   Collector-Emitter Voltage                                                VCEO                                         20                                     V
   Emitter-Base Voltage                                                     VEBO                                         25                                     V
   Collector Current                                                         IC                                          300                                  mA
   Collector Power Dissipation                                              PC *                                         0.9                                   W
   Junction Temperature                                                      Tj                                          150
   Storage Temperature Range                                                Tstg                                  -55 150
  * Package mounted on a ceramic board (600             0.8    )



  MARK SPEC
                                   hFE classification
             TYPE
                                             B                                        Marking
                                                                                                        6            5         4
          KRC881T                        MQB                                           h FE Rank                                           Lot No.

          KRC882T                        MRB
                                                                                    Type Name
          KRC883T                        MSB
          KRC884T                        MTB
                                                                                                        1            2            3
          KRC885T                        MUB
          KRC886T                        MVB



2002. 12. 5                        Revision No : 2                                                                                                                           1/2
                                                     KRC881T~KRC886T

 ELECTRICAL CHARACTERISTICS (Ta=25 )
              CHARACTERISTIC                         SYMBOL           TEST CONDITION     MIN.   TYP.   MAX.   UNIT
   Collector-Emitter Breakdown Voltage                BVCEO      IC=1mA                   20     -       -     V
   Collector-Base Breakdown Voltage                   BVCBO      IC=50 A                  50     -       -     V
   Emitter-Base Breakdown Voltage                     BVEBO      IE=50 A                  25     -       -     V
   Collector Cut-off Current                           ICBO      VCB=50V, IE=0            -      -      0.1       A
   Collector-Emitter Saturation Voltage               VCE(sat)   IC=30mA, IB=3mA          -      -      0.1    V
   DC Current Gain                                      hFE      VCE=2V, IC=4mA          350     -     1200
                                    KRC881T                                               -     2.2      -
                                    KRC882T                                               -     4.7      -
                                    KRC883T                                               -     5.6      -
   Input Resistor                                       R1                                                    k
                                    KRC884T                                               -     6.8      -
                                    KRC885T                                               -      10      -
                                    KRC886T                                               -      22      -
   Transition Frequency                                 fT *     VCE=6V, IC=4mA,          -      30      -    MHz
   Collector Output Capacitance                         Cob      VCB=10V, IE=0, f=1MHz    -     4.8      -     pF
 * Characteristic of Transistor Only.
 Note) hFE Classification      B:350 1200




2002. 12. 5                        Revision No : 2                                                                    2/2
