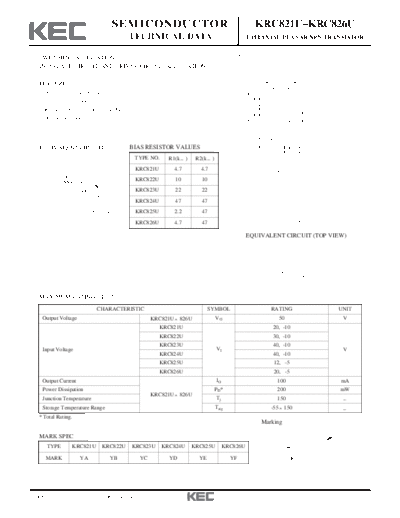

Image preview - the first page of the document



>> Download krc821u_826u documenatation <<

Text preview - extract from the document

                                    SEMICONDUCTOR                                                            KRC821U~KRC826U
                                             TECHNICAL DATA                                            EPITAXIAL PLANAR NPN TRANSISTOR


  SWITCHING APPLICATION.
  INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION.

                                                                                                                                B
  FEATURES                                                                                                                      B1

    With Built-in Bias Resistors.
                                                                                                                   1                        6           DIM         MILLIMETERS
    Simplify Circuit Design.                                                                                                                             A                 _
                                                                                                                                                                      2.00 + 0.20




                                                                                                             C
                                                                                                                                                                           _




                                                                                                        A1
                                                                                                                   2                        5            A1            1.3 + 0.1




                                                                                                    A
    Reduce a Quantity of Parts and Manufacturing Process.                                                                                                B                 _
                                                                                                                                                                       2.1 + 0.1




                                                                                                         C
                                                                                                                   3                        4   D       B1                  _
                                                                                                                                                                       1.25 + 0.1
    High Packing Density.
                                                                                                                                                        C                0.65
                                                                                                                                                        D            0.2+0.10/-0.05
                                                                                                                                                        G                0-0.1
                                                                                                                                                        H                   _
                                                                                                                                                                        0.9 + 0.1




                                                                                                             H
                                                                                                                                                T           T        0.15+0.1/-0.05
  EQUIVALENT CIRCUIT                         BIAS RESISTOR VALUES
                                                                                                                            G
                             OUT              TYPE NO.      R1(k
