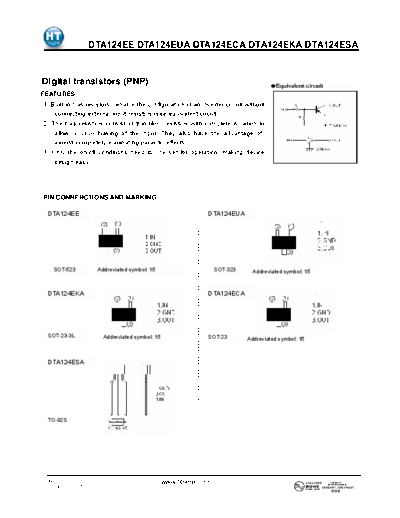

Image preview - the first page of the document
dta124eca


>> Download dta124eca documenatation <<

Text preview - extract from the document
                 DTA124EE/DTA124EUA/DTA124ECA/DTA124EKA/DTA124ESA


Digital transistors (PNP)
FEATURES
1. Built-in bias resistors enable the configuration of an inverter circuit without
    connecting external input resistors (see equivalent circuit).
2. The bias resistors consist of thin-film resistors with complete isolation to
    allow positive biasing of the input. They also have the advantage of
    almost completely eliminating parasitic effects.
3. Only the on/off conditions need to be set for operation, making device
    design easy.




PIN CONNENCTIONS AND MARKING

 DTA124EE                                                    DTA124EUA




     SOT-523        Addreviated symbol: 15                      SOT-323      Addreviated symbol: 15


                                                             DTA114ECA
 DTA124EKA                                                   DTA124ECA




 SOT-23-3L            Addreviated symbol: 15                 SOT-23        Addreviated symbol: 15



 DTA124ESA




 TO-92S




 1




 JinYu                                         www.htsemi.com
 semiconductor

                                                                                                      Date:2011/05
                       DTA124EE/DTA124EUA/DTA124ECA/DTA124EKA/DTA124ESA
Absolute maximum ratings(Ta=25)
                                                                      Limits (DTA124E   )
          Parameter            Symbol                                                                                  Unit
                                                       E          UA          KA        CA             SA
       Supply voltage                 VCC                                      -50                                      V
        Input voltage                 VIN                                    -40~10                                     V
                                       IO                                      -30
       Output current                                                                                                  mA
                                   IC(MAX)                                    -100
      Power dissipation               Pd              150                     200                      300             mW
Junction temperature                   Tj                                     150
 Storage temperature                  Tstg                                   -55~150
Electrical characteristics (Ta=25)
        Parameter           Symbol           Min.           Typ      Max.       Unit              Conditions
                           VI(off)                                   -0.5                     VCC=-5V ,IO=-100
