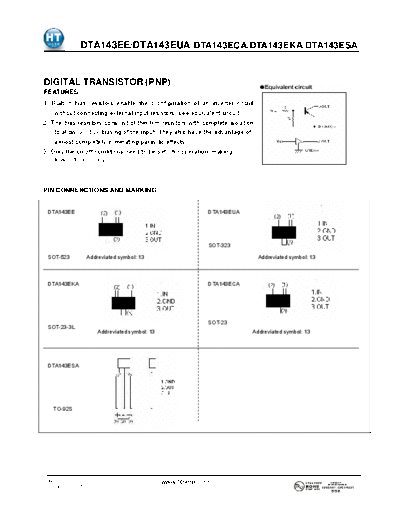

Image preview - the first page of the document
dta143eca


>> Download dta143eca documenatation <<

Text preview - extract from the document
              DTA143EE/DTA143EUA/ DTA143ECA/DTA143EKA/DTA143ESA


DIGITAL TRANSISTOR (PNP)
FEATURES
1. Built-in bias resistors enable the c onfiguration of an inverter circuit
    without connecting external input resistors (see equivalent circuit).
2. The bias resistors cons ist of thin-film resistors with complete isolation
    to allow positive biasing of the input. They also have the advantage of
    almost completely eliminating parasitic effects.
3. Only the on/off conditions need to be set for operation, making
    device design easy.



PIN CONNENCTIONS AND MARKING


 DTA143EE                                                   DTC114EUA
                                                            DTA143EUA




                                                            SOT-323

 SOT-523       Addreviated symbol: 13                                           Addreviated symbol: 13



 DTA143EKA                                                  DTA143ECA




                                                            SOT-23
 SOT-23-3L
                   Addreviated symbol: 13                                   Addreviated symbol: 13




 DTA143ESA




     TO-92S




 1




 JinYu                                      www.htsemi.com
 semiconductor

                                                                                                     Date:2011/05
                 DTA143EE/DTA143EUA/ DTA143ECA/DTA143EKA/DTA143ESA
Absolute maximum ratings(Ta=25)
                                                             Limits (DTA143E )
        Parameter      Symbol                                                                                      Unit
                                            E           UA             KA           CA             SA
      Supply voltage       VCC                                         -50                                          V
       Input voltage       VIN                                       -30~10                                         V
                               IO                                     -100
      Output current                                                                                               mA
                         IC(MAX)                                      -100
 Power dissipation         Pd              150                        200                          300             mW
         Junction
                               Tj                                     150
       temperature
Storage temperature       Tstg                                       -55~150
Electrical characteristics (Ta=25)
        Parameter      Symbol        Min.         Typ         Max.           Unit            Conditions
                        VI(off)                               -0.5                       VCC=-5V ,IO=-100
