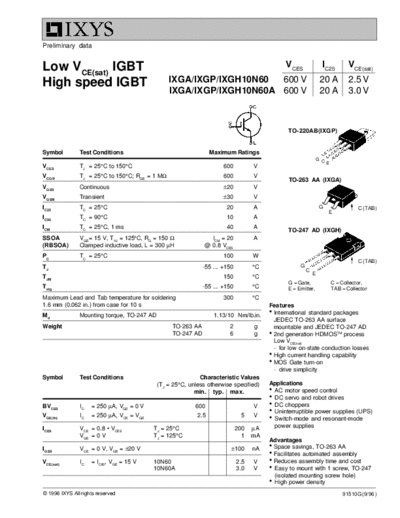

>> Download ixgp10n60-a_ixga10n60-a_ixgh10n60-a documenatation <<

Text preview - extract from the document

Preliminary data


Low VCE(sat) IGBT                                                                            VCES              IC25         VCE(sat)

High speed IGBT                                 IXGA/IXGP/IXGH10N60  600 V                                     20 A         2.5 V
                                                IXGA/IXGP/IXGH10N60A 600 V                                     20 A         3.0 V



                                                                                              TO-220AB(IXGP)


Symbol         Test Conditions                                   Maximum Ratings
                                                                                                             G C
                                                                                                                 E
VCES           TJ = 25
