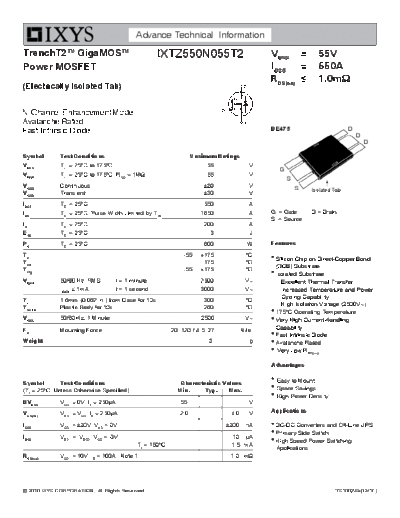

Image preview - the first page of the document
ixtz550n055t2


>> Download ixtz550n055t2 documenatation <<

Text preview - extract from the document
                                          Advance Technical Information
TrenchT2TM GigaMOSTM                               IXTZ550N055T2                          VDSS          =     55V
Power MOSFET                                                                              ID25          =     550A
                                                                                          RDS(on)             1.0m
(Electrically Isolated Tab)


N-Channel Enhancement Mode
Avalanche Rated
                                                                                          DE475                            D
Fast Intrinsic Diode                                                                                                           D
                                                                                                                                   D

Symbol       Test Conditions                                    Maximum Ratings
VDSS         TJ = 25
