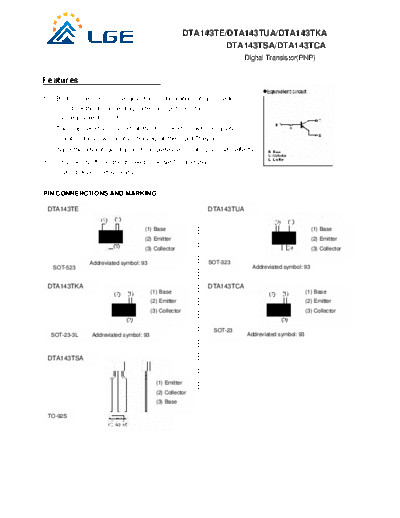

Image preview - the first page of the document
>> Download dta143t documenatation <<Text preview - extract from the document DTA143TE/DTA143TUA/DTA143TKA
DTA143TSA/DTA143TCA
Digital Transistor(PNP)
Features
1. Built-in bias resistors enable the configuration of an inverter
circuit without connecting external input resistors
(see equivalent circuit).
2. The bias resistors consist of thin-film resistors with complete
isolation to allow negative biasing of the input.They also
have the advantage of almost completely eliminating parasitic effects.
3. Only the on/off conditions need to be set for operation,
making device design easy.
PIN CONNENCTIONS AND MARKING
DTA143TE DTA143TUA
(1) Base (1) Base
(1) Base
(2) Emitter (2) Emitter
(2) Emitter
(3) Collector (3) Collector
(3) Collector
Addreviated symbol: 93 SOT-323
SOT-523 Addreviated symbol: 93
DTA143TKA DTA143TCA
DTA114ECA
(1) Base (1) Base
(1) Base
(2) Emitter (2) Emitter
(2) Emitter
(3) Collector (3) Collector
(3) Collector
SOT-23
SOT-23-3L Addreviated symbol: 93 Addreviated symbol: 93
DTA143TSA
(1) Emitter
(2) Collector
(3) Base
TO-92S
DTA143TE/DTA143TUA/DTA143TKA
DTA143TSA/DTA143TCA
Digital Transistor(PNP)
Absolute maximum ratings(Ta=25)
Limits (DTA143T )
Parameter Symbol Unit
E UA CA KA SA
Collector-base voltage V(BR)CBO -50 V
Collector-emitter voltage V(BR)CEO -50 V
Emitter-base voltage V(BR)EBO -5 V
Collector current IC -100 mA
Collector Power dissipation PC 150 200 300 mW
Junction temperature Tj 150
Storage temperature Tstg -55~150
Electrical characteristics (Ta=25)
Parameter Symbol Min. Typ Max. Unit Conditions
Collector-base breakdown voltage V(BR)CBO -50 V Ic=-50
