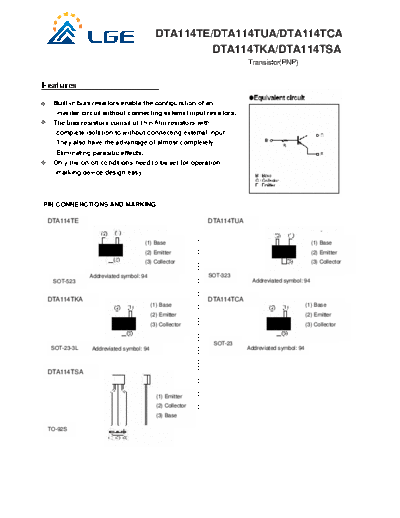

Image preview - the first page of the document



>> Download dta114t documenatation <<

Text preview - extract from the document

                                          DTA114TE/DTA114TUA/DTA114TCA
                                                   DTA114TKA/DTA114TSA
                                                                      Transistor(PNP)


Features

  Built-in bias resistors enable the configuration of an
   inverter circuit without connecting extemal input resistors.
  The bias resistors conisit of thin-film resistors with
   complete isolation to without connecting extemal input.
   They also have the advantage of almost completely
   Eliminating parasitic effects.
  Only the on/off conditions need to be set for operation,
   marking device design easy.




PIN CONNENCTIONS AND MARKING

 DTA114TE                                                 DTA114TUA


                                    (1) Base                                                     (1) Base
                                                                                                   (1) Base
                                    (2) Emitter                                                  (2) Emitter
                                                                                                   (2) Emitter
                                    (3) Collector                                                (3) Collector
                                                                                                   (3) Collector

              Addreviated symbol: 94                      SOT-323
  SOT-523                                                               Addreviated symbol: 94


 DTA114TKA                                                DTA114TCA
                                                          DTA114ECA
                                        (1) Base                                               (1) Base
                                                                                                 (1) Base
                                        (2) Emitter                                            (2) Emitter
                                                                                                 (2) Emitter
                                        (3) Collector                                          (3) Collector
                                                                                                 (3) Collector

                                                           SOT-23
  SOT-23-3L    Addreviated symbol: 94                                 Addreviated symbol: 94



 DTA114TSA


                                          (1) Emitter
                                          (2) Collector
                                          (3) Base

 TO-92S
                                                DTA114TE/DTA114TUA/DTA114TCA
                                                         DTA114TKA/DTA114TSA
                                                                                   Transistor(PNP)

 MAXIMUM RATINGS* TA=25 unless otherwise noted
       Symbol                      Parameter                             LIMITS(DTA114T)                       Units
                                                              E         UA         KA         CA       SA
VCBO                 Collector-Base Voltage                                        -50                              V
VCEO                 Collector-Emitter Voltage                                     -50                              V
VEBO                 Emitter-Base Voltage                                           -5                              V
IC                   Collector Current -Continuous                                 -100                             mA
PC                   Collector Dissipation                   150                   200                 300        mW
TJ, Tstg             Junction and Storage Temperature                            -55~+150




 ELECTRICAL CHARACTERISTICS (Tamb=25                        unless      otherwise         specified)
           Parameter                         Symbol          Test     conditions               MIN     TYP   MAX         UNIT
 Collector-base breakdown voltage            V(BR)CBO          Ic=-50
