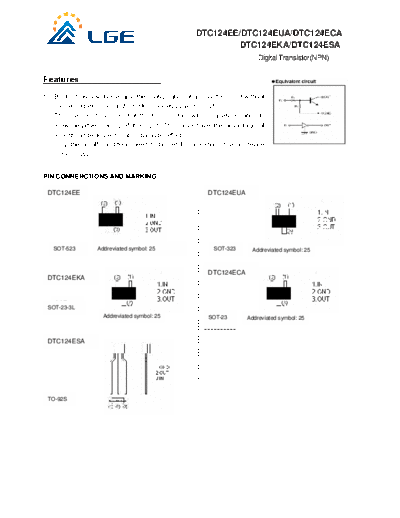

Image preview - the first page of the document



>> Download dtc124e documenatation <<

Text preview - extract from the document

                                                        DTC124EE/DTC124EUA/DTC124ECA
                                                                DTC124EKA/DTC124ESA
                                                                               Digital Transistor(NPN)


Features
1) Built-in bias resistors enable the configuration of an inverter circuit without
   connecting external input resistors(see equivalent circuit).
2) The bias resistors consist of thin-film resistors with complete isolation to
   allow negative biasing of the input. They also have the advantage of
   almost completely eliminating parasitic effects.
3) Only the on/off conditions need to be set for operation, making device
   design easy.


PIN CONNENCTIONS AND MARKING

 DTC124EE                                                    DTC124EUA




   SOT-523          Addreviated symbol: 25                     SOT-323       Addreviated symbol: 25


                                                             DTA114ECA
                                                             DTC124ECA
 DTC124EKA


   SOT-23
 SOT-23-3L
                      Addreviated symbol: 25                 SOT-23        Addreviated symbol: 25



 DTC124ESA




 TO-92S
                                                            DTC124EE/DTC124EUA/DTC124ECA
                                                                    DTC124EKA/DTC124ESA
                                                                                 Digital Transistor(NPN)
 Absolute maximum ratings(Ta=25)
                                                                  Limits (DTC124E     )
Parameter                  Symbol                                                                               Unit
                                                E            UA            KA             CA              SA
Supply voltage                    VCC                                       50                                   V
Input voltage                     VIN                                    -10~40                                  V
                                   IO                                       30
Output current                                                                                                  mA
                               IC(MAX)                                     100
Power dissipation                Pd             150                        200                         300      mW
Junction temperature              Tj                                       150
Storage temperature             Tstg                                    -55~150

 Electrical characteristics (Ta=25)
     Parameter         Symbol            Min.         Typ      Max.       Unit                  Conditions
                        VI(off)                                   0.5                      VCC=5V, IO=100
