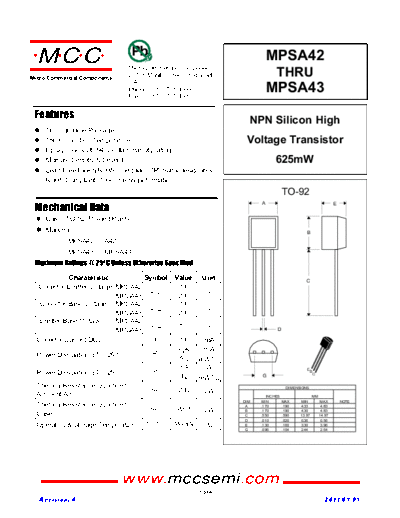

Image preview - the first page of the document



>> Download mpsa42_mpsa43_to-92 documenatation <<

Text preview - extract from the document

  MCC                                                                            MPSA42
Micro Commercial Components
                              TM
omponents
                                   20736 Marilla Street Chatsworth                  THRU
                                                                                 MPSA43

                                    !"#
                                   $
%    !"#


 Features                                                                NPN Silicon High
     Through Hole Package
     150oC Junction Temperature                                         Voltage Transistor
     Epoxy meets UL 94 V-0 flammability rating
     Moisure Sensitivity Level 1                                                   625mW
     Lead Free Finish/RoHS Compliant ("P" Suffix designates
     RoHS Compliant. See ordering information)
                                                                                         TO-92
                                                                             A                                           E
 Mechanical Data
     Case: TO-92, Molded Plastic
     Marking:                                                                                       B
            MPSA42 ----A42
            MPSA43 ----MPSA43
 Maximum Ratings @ 25oC Unless Otherwise Specified
             Charateristic         Symbol          Value        Unit                                C
  Collector-Emitter Voltage MPSA42                  300
                                    VCEO                         V
                            MPSA43                  200
   Collector-Base Voltage MPSA42                    300
                                    VCBO                         V
                            MPSA43                  200
   Emitter-Base Voltage     MPSA42
                                    VEBO             5.0         V
                            MPSA43                                                   D

  Collector Current(DC)              IC             300      mA
                                                    625      mW
  Power Dissipation@T A=25oC               Pd
                                                    5.0     mW/oC
                                                    1.5      W                                      E
  Power Dissipation@T C=25oC               Pd                                G
                                                                                                         B
                                                                                                             C
                                                    12      mW/oC
  Thermal Resistance, Junction to                           o                              DIMENSIONS
                                          R JA      200      C/W
  Ambient Air                                                                   INCHES                   MM
                                                                       DIM   MIN         MAX     MIN             MAX         NOTE
  Thermal Resistance, Junction to                           o           A    .170        .190    4.33             4.83
                                          R JC      83.3     C/W        B    .170        .190    4.30             4.83
  Case                                                                  C    .550        .590    13.97           14.97
                                                                        D    .010        .020    0.36             0.56
                                                                 o
  Operating & Storage Temperature        Tj, TSTG -55~150        C      E    .130        .160    3.30             3.96
                                                                        G    .096        .104    2.44             2.64




                                   www.mccsemi.com
                                                            1 of 4
  Revision: A                                                                                                      2011/01/01
  MPSA42 thru MPSA43
                                                                                         MCC                          TM


                                                                                        Micro Commercial Components




  ELECTRICAL CHARACTERISTICS (TA = 25
