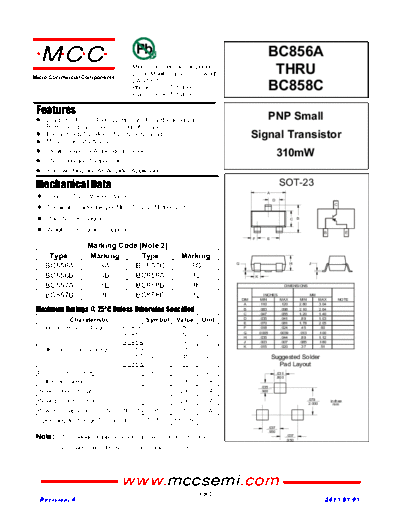

Image preview - the first page of the document
>> Download bc856a_bc857b_bc858c_sot-23 documenatation <<
Text preview - extract from the document
MCC
omponents
BC856A
Micro Commercial Components
TM
20736 Marilla Street Chatsworth THRU
!"#
$
% !"#
BC858C
Features
Lead Free Finish/RoHS Compliant ("P" Suffix designates PNP Small
RoHS Compliant. See ordering information)
Epoxy meets UL 94 V-0 flammability rating
Moisure Sensitivity Level 1
Signal Transistor
Ideally Suited for Automatic Insertion
o
310mW
150 C Junction Temperature
For Switching and AF Amplifier Applications
Mechanical Data SOT-23
A
Case: SOT-23, Molded Plastic
D
C
Terminals: Solderable per MIL-STD-202, Method 208
Polarity: See Diagram C B
Weight: 0.008 grams ( approx.) B E
F E
Marking Code (Note 2)
Type Marking Type Marking
G H J
BC856A 3A BC857C 3G
BC856B 3B BC858A 3J K
BC857A 3E BC858B 3K DIMENSIONS
BC857B 3F BC858C 3L DIM
INCHES
MIN MAX MIN
MM
MAX NOTE
A .110 .120 2.80 3.04
o
Maximum Ratings @ 25 C Unless Otherwise Specified B
C
.083
.047
.098
.055
2.10
1.20
2.64
1.40
D .035 .041 .89 1.03
Charateristic Symbol Value Unit E .070 .081 1.78 2.05
Collector-Base Voltage BC856 -80 F .018 .024 .45 .60
G .0005 .0039 .013 .100
BC857 VC B O -50 V H .035 .044 .89 1.12
BC858 -30 J .003 .007 .085 .180
K .015 .020 .37 .51
Collector-Emitter Voltage BC856 -65
BC857 VC E O -45 V Suggested Solder
BC858 -30 Pad Layout
Emitter-Base Voltage V EBO -5.0 V .031
.800
Collector Current IC -100 mA
.035
Peak Collector Current IC M -200 mA .900
.079
Peak Emitter Current I EM -200 mA 2.000
inches
mm
o
Power Dissipation@T s =50 C(Note1) Pd 310 mW
o
Operating & Storage Temperature Tj, T S T G -55~150 C
.037
.950
Note: 1. Package mounted on ceramic substrate 0.7mm X 2.5cm2 area. .037
.950
2. Current gain subgroup " C" is not available for BC856
www.mccsemi.com
1 of 3
Revision: A 2011/01/01
BC856A thru BC858C MCC TM
Micro Commercial Components
