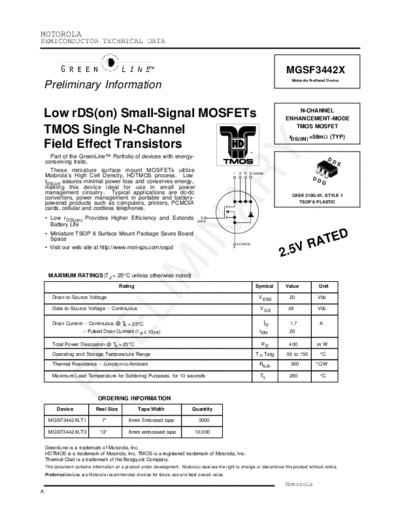

Image preview - the first page of the document



>> Download mgsf3_91 documenatation <<

Text preview - extract from the document

MOTOROLA
SEMICONDUCTOR TECHNICAL DATA


                                                        TM
                                                                                                                                MGSF3442X
                                                                                                                                 Motorola Preffered Device
    Preliminary Information

    Low rDS(on) Small-Signal MOSFETs                                                                                               N-CHANNEL
                                                                                                                               ENHANCEMENT-MODE
                                                                                                                                  TMOS MOSFET
    TMOS Single N-Channel                                                                                                       rDS(0N) =58m (TYP)
    Field Effect Transistors




                     Y
                                                                                                              TM
      Part of the GreenLineTM Portfolio of devices with energy-                                                                                      DD
    conserving traits.                                                                                                                                    S
      These miniature surface mount MOSFETs utilize




                   AR
                                                                                                    1    2 5 6 DRAIN
    Motorola's High Cell Density, HDTMOS process. Low                                                                                       DD
    rDS(on) assures minimal power loss and conserves energy,                                                                                     G
    making this device ideal for use in small power
    management circuitry. Typical applications are dc-dc
                                                                                                                                 CASE 318G-01, STYLE 1
    converters, power management in portable and battery-
    powered products such as computers, printers, PCMCIA                                                                           TSOP 6 PLASTIC
    cards, cellular and cordless telephones.
