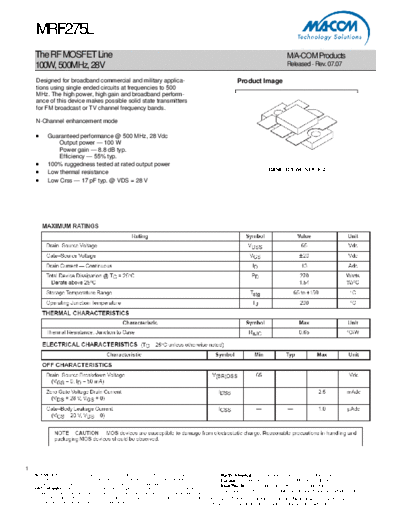

Image preview - the first page of the document
mrf275l


>> Download mrf275l documenatation <<

Text preview - extract from the document
    MRF275L
    The RF MOSFET Line                                                                                                                        M/A-COM Products
    100W, 500MHz, 28V                                                                                                                         Released - Rev. 07.07

    Designed for broadband commercial and military applica-                                                       Product Image
    tions using single ended circuits at frequencies to 500
    MHz. The high power, high gain and broadband perform-
    ance of this device makes possible solid state transmitters
    for FM broadcast or TV channel frequency bands.

    N-Channel enhancement mode
